Concealed Hinge Pr03 120°

ICON_HINGE_SERIES_Pr03

ICON_TUERANSCHLAG_LR

Advantages

For surface mounted doors.
Hinge concealed.
Door bending 23 mm.
RH / LH application.
120° Opening angle.

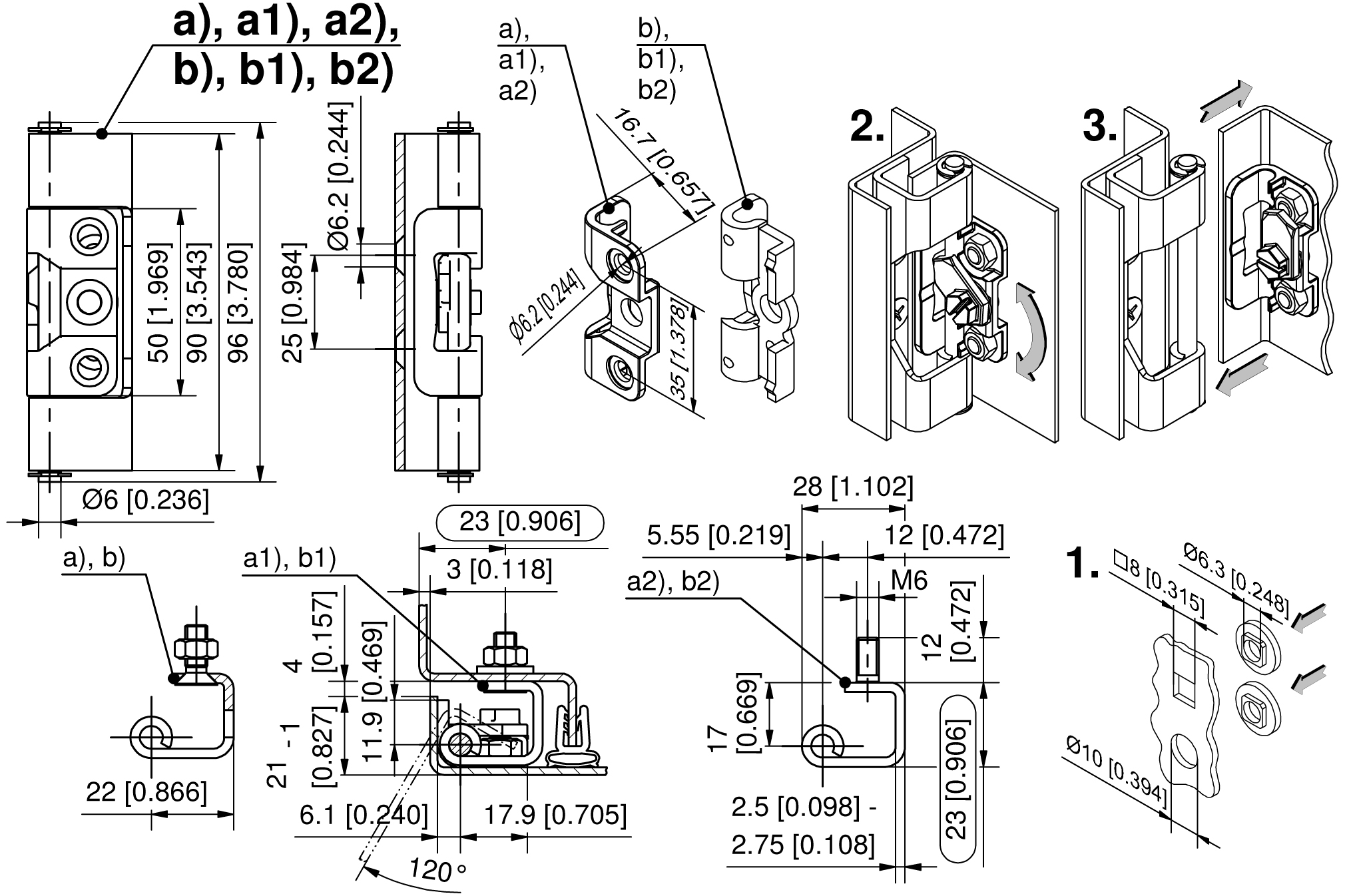

By rotating the 1/4 turn, the pivot pin is released and the door can be removed by pulling it to the front (see 2. and 3.).

Material

a), a1) and a2)

Door-part and ¼ turn: zinc die, zinc plated
Frame-part and pin: steel, zinc plated

b), b1) and b2)

All parts: steel, zinc plated

Remarks

To a2) and b2):
fastening washer is not used when Ø6.3.

1. installation instruction for fastening washer

Selected version

Product number	243-9010.00-00000
Delivery Unit:	10 pcs.
Installation type door-part:	screw-on
Pin version:	with groove incl. locking washer DIN6799
cutout in frame:	□8 or Ø10
Frame-part:	with countersunk holes for M6 + fastening washer

Available versions

Concealed hinge

Product number

Frame-part

cutout in frame

Pin version

Installation type door-part

Delivery Unit

243-9009.00-00000

with countersunk holes for M6

with groove incl. locking washer DIN6799

243-9010.00-00000

with countersunk holes for M6 + fastening washer

with groove incl. locking washer DIN6799

243-9011.00-00000

with studs for M6 + fastening washer

Ø6.3, □8, Ø10

with groove incl. locking washer DIN6799

243-9003.00-00000

with countersunk holes for M6

with groove incl. locking washer DIN6799

243-9002.00-00000

with countersunk holes for M6 + fastening washer

with groove incl. locking washer DIN6799

243-9007.00-00000

with studs for M6 + fastening washer

Ø6.3, □8, Ø10

with groove incl. locking washer DIN6799
