[6-1390]

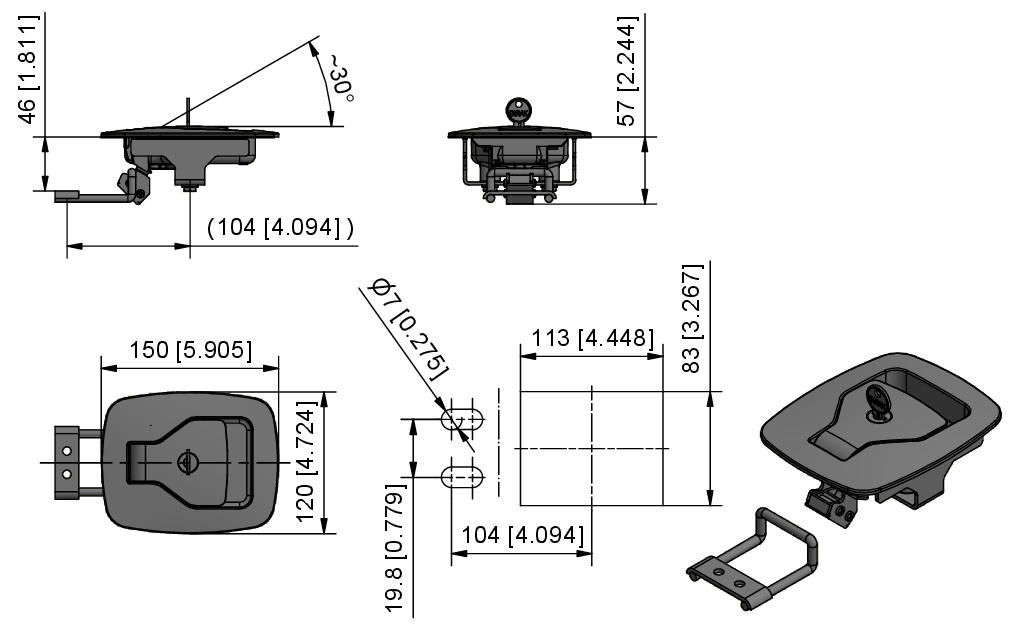

Flap Handle with Locking Hook

ICON_IP66
ICON_ROHS
ICON_TUERANSCHLAG_LR

Advantages

  • The flap handle can only be operated in the unlocked position.
  • Used for example, in rail vehicle construction, enclosures and sliding doors.
  • Vibration-proof construction.
  • 30° Opening angle of the handle.
  • Latch function mechanism allows closing when locked.
  • IP65/IP66 according to DIN EN 60529.

Material

  • Housing and handle: PA6 GF 30%, black
  • Retaining bracket and holder: AISI 304
  • Screw bushing: brass
  • Screw-on plate: steel, zinc plated

Remarks

Door-thickness 2 - 3mm

Please select version Product data sheet

Available versions

Flap handle

Product number
Latching type
Installation type
Delivery Unit
282-9522.00-00000
keyed alike
screw-on
1 pc.
