[6-1000]

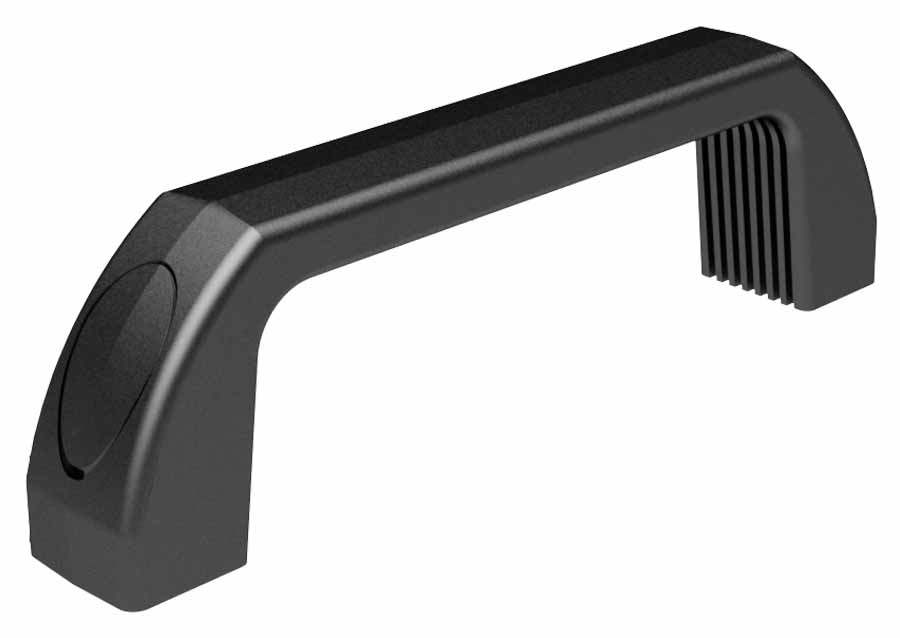

Bridge Handle PA
Advantages
- For vertical or horizontal applications.
- Resistant to dirt and easy to clean due to sloping surfaces and transition radii.
- Corrosion-resistant.
- Screws are covered by plugs.
- Plugs clip into the handle tool-less.
Material
- Bridge handle: PA, black
Remarks
Fastening by cylinder head screws DIN 7984,cylinder head screws DIN EN ISO 4762, hex. head screws DIN 931 and / or countersunk screws DIN EN ISO 10642.
Selected version

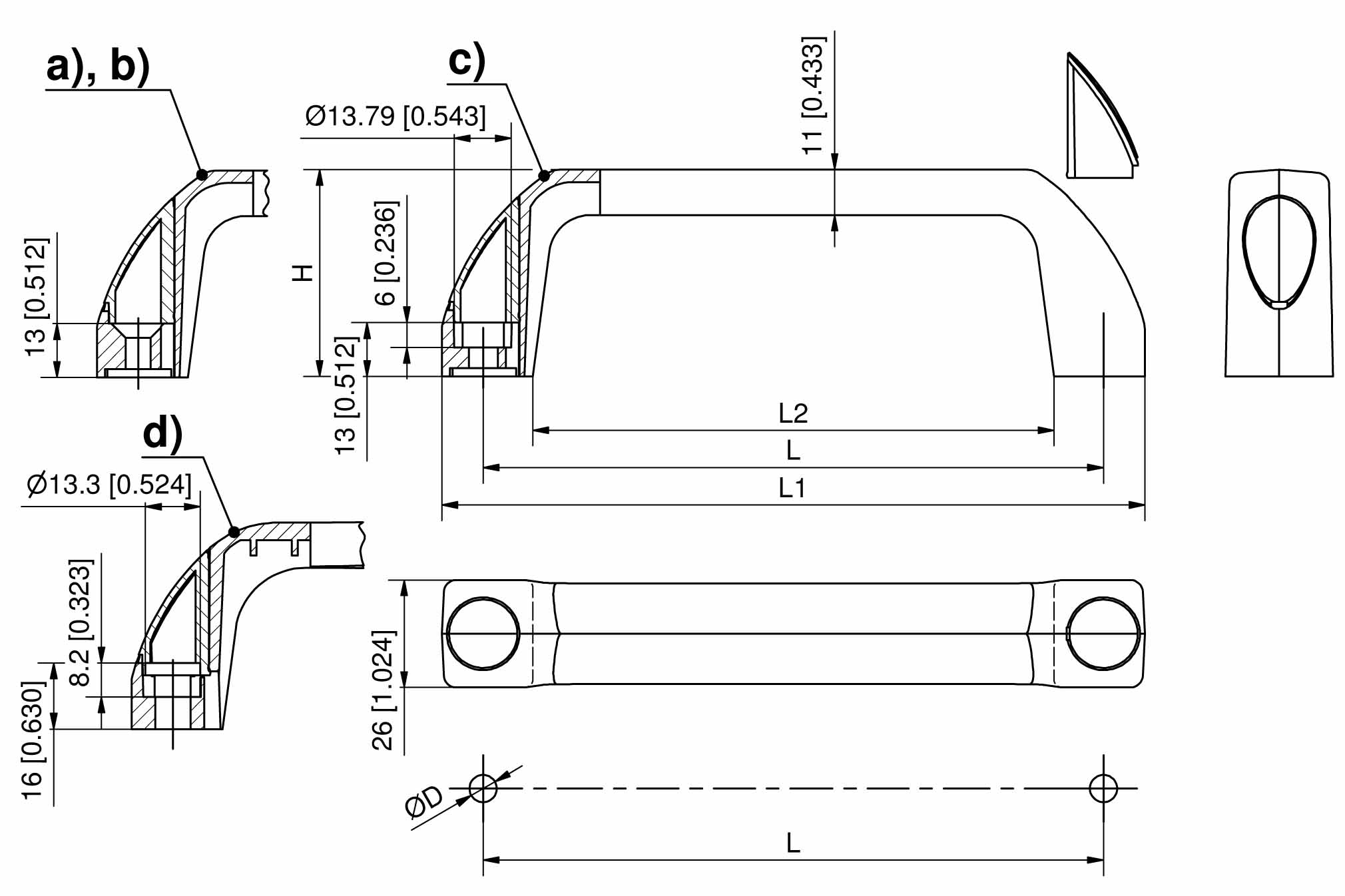

Product number | 213-9206.00-00000 |
Installation type: | screw-on |
Delivery Unit: | 10 pcs. |
L2: | 98 mm |
H: | 41 mm - 41 mm |
L1: | 142 mm |
Fastening type: | Cylinder head screws / hex. screws M6 |
L: | 122 mm |
