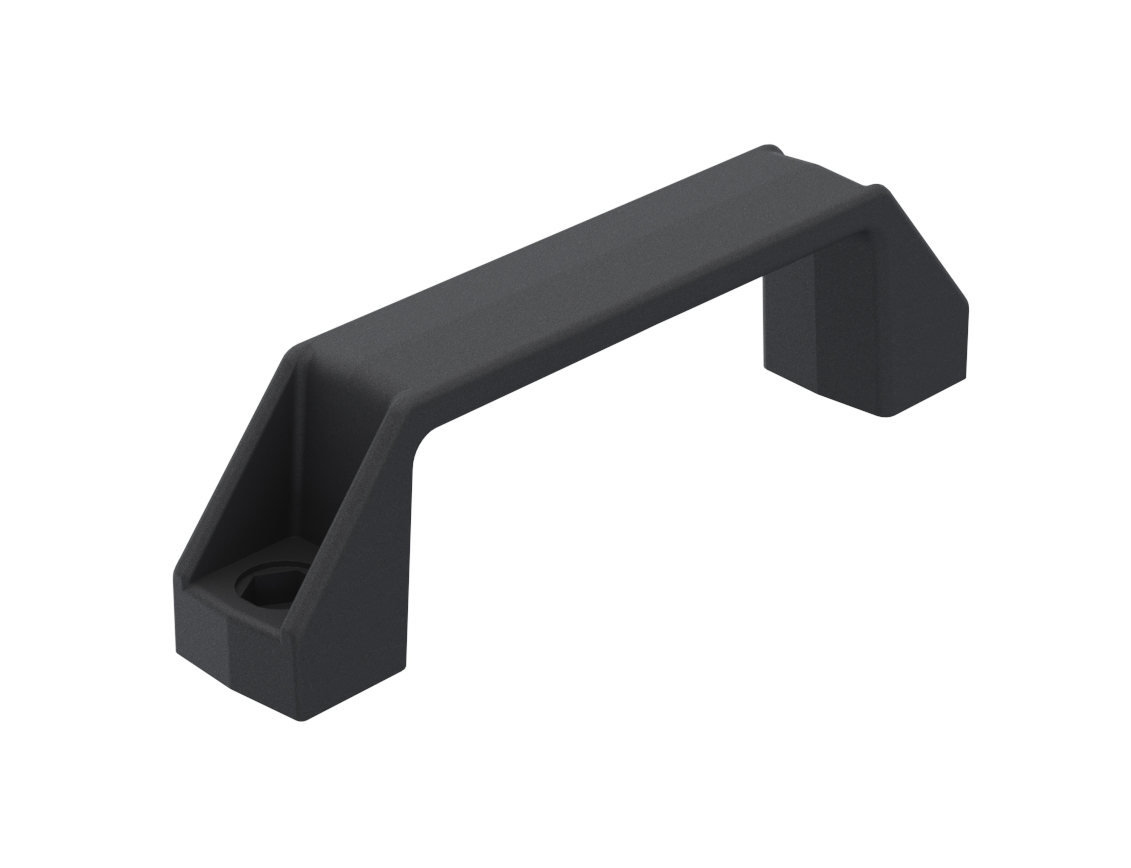

PA Bridge Handle

ICON_ROHS
6_1031
E_6-1031

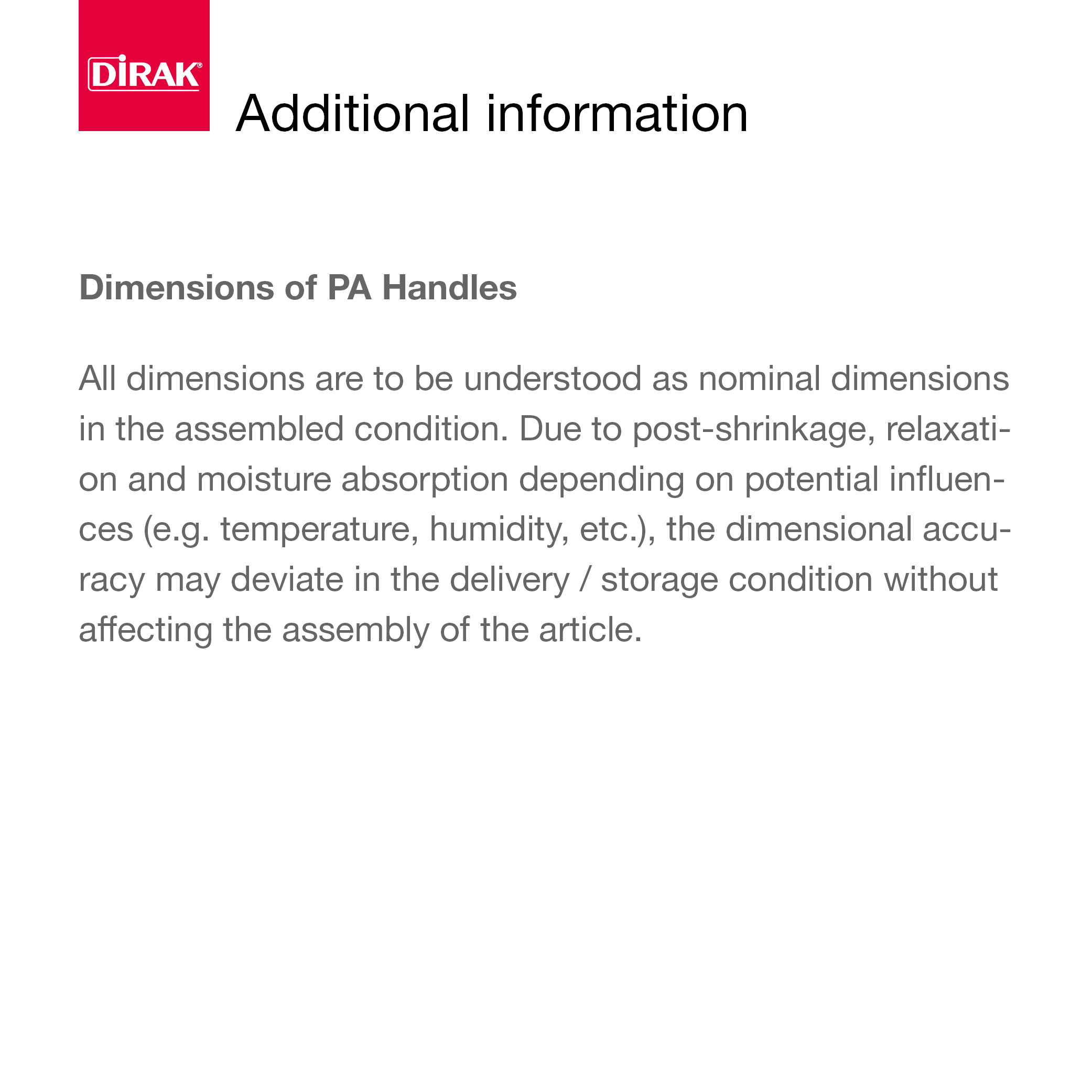

Kunststoffgriffe_Maßangaben_EN
6_1031
E_6-1031
Kunststoffgriffe_Maßangaben_EN

Advantages

  • Bridge handle, two sizes.
  • For vertical or horizontal applications.

Material

  • Bridge handle: PA, black

Remarks

a) fastening with cap screws DIN 7984, cap screws DIN ISO 4762, hexagon head screws DIN 931 SW10.
b) fastening with countersunk head screws DIN EN ISO 10642.

Selected version

Product number 213-0202.03-00000
Installation type: screw-on
Delivery Unit: 10 pcs.
L2: 98 mm
L1: 142 mm
Fastening type: Countersunk screws M5
L: 122 mm
B: 26 mm
H: 40 mm - 40 mm
H1: 32 mm
CAD model
Remove selection Product data sheet
