[5-130]

Window Seals EPDM

ICON_ROHS
ICON_UR
5_130
E_5-130
Dichtprofile_Richtlinien_1
Dichtprofile_Richtlinien_2
Dichtprofile_Richtlinien_3
5_130
E_5-130
Dichtprofile_Richtlinien_1
Dichtprofile_Richtlinien_2
Dichtprofile_Richtlinien_3

Advantages

  • Window seals are used to mount panes, windows, etc. in doors, casings and machine enclosures.
  • Assembly only with filler. The pane is clamped in place with the help of the filler and held centered in the cutout.
  • The window seals are made of EPDM with excellent weathering and ozone resistance properties.
  • DIRAK's EPDM quality is neutral to paints.
  • Tested according to UL 157 and UL 50 E.

Material

  • Window seals: EPDM, black

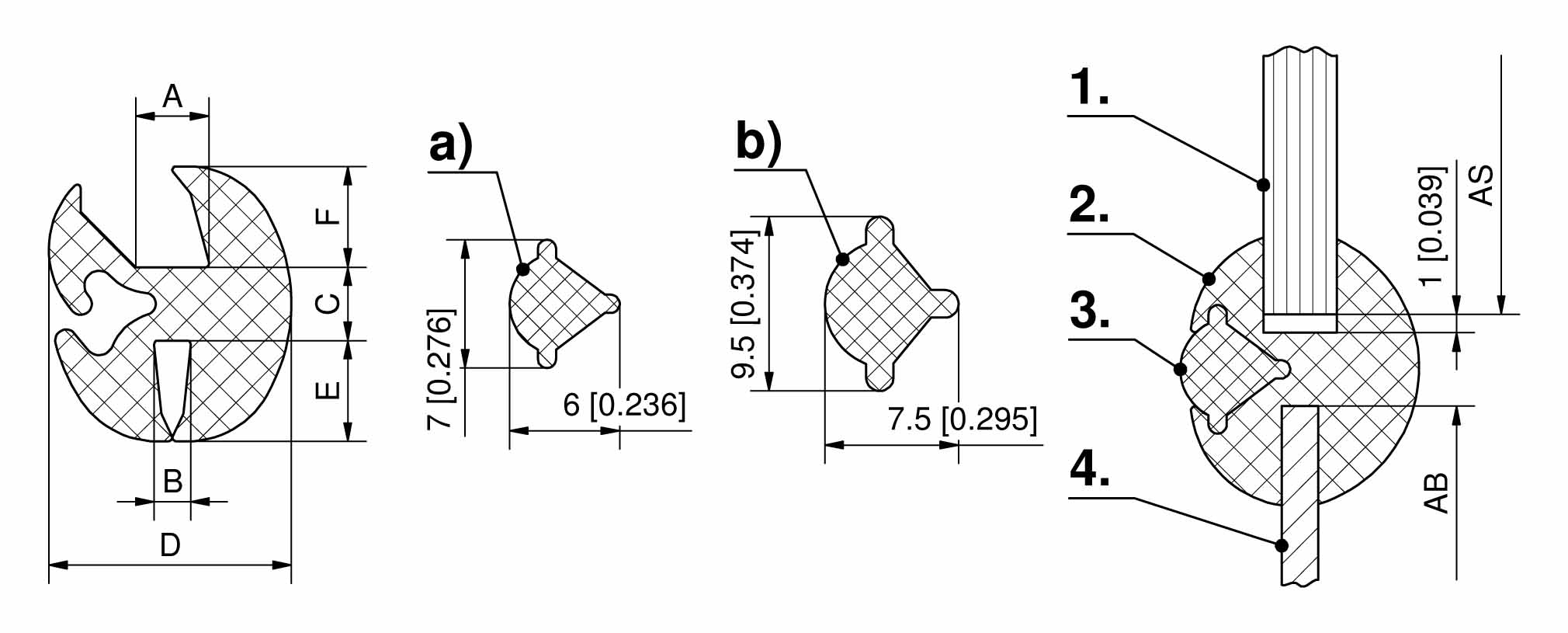

Remarks

1. window
2. window seal
3. filler
4. sheet metal thickness

Please dimension window with 1mm gap around edges.
AS = size of window
AB = size sheet metal

The bending radius refers to the inside of the glass holder.

Note Tolerances!

Selected version

Product number 209-0512.00-00000
B: 2 mm
F: 9,5 mm
Collar length: 15 m
Delivery Unit: 15 m
E: 12,5 mm
Filler: b)
Bending radius: 100
D: 19 mm
C: 7,5 mm
A: 5 mm
CAD model
Remove selection Product data sheet

Related Products

Accessories



Article no.
Name

209-1003.00-00000
Fitting tool for window seals, incl. eye 701-7068
Details
Name:
Fitting tool for window seals, incl. eye 701-7068
Eyelets width:
-
Delivery Unit:
1 pc.
Open product in new tab
701-7066.00-00000
Eye for fitting tool, small
Details
Name:
Eye for fitting tool, small
Eyelets width:
9.4 mm
Delivery Unit:
1 pc.
Open product in new tab

Specific accessories



Article no.
Name

a)
209-0601.00-00000
Filler
Details
Width W:
6 mm
Height H:
7 mm
Collar length:
50 m
Delivery Unit:
50 m
Open product in new tab
b)
209-0602.00-00000
Filler
Details
Width W:
7,5 mm
Height H:
9,5 mm
Collar length:
50 m
Delivery Unit:
50 m
Open product in new tab

Product Configuration

Selected version

Product number 209-0512.00-00000
B: 2 mm
F: 9,5 mm
Collar length: 15 m
Delivery Unit: 15 m
E: 12,5 mm
Filler: b)
Bending radius: 100
D: 19 mm
C: 7,5 mm
A: 5 mm
