Window Seal EPDM

Advantages

Window seals are used to mount panes, windows, etc. in doors, casings and machine enclosures.
Assemly only with filler. The pane is clamped in place with the help of the filler and held centered in the cutout.
The window seal is made of EPDM with excellent weathering and ozone resistance properties.
DIRAK's EPDM quality is neutral to paints.
Tested according to UL 157 and UL 50 E.

Material

Window seals: EPDM, black

Remarks

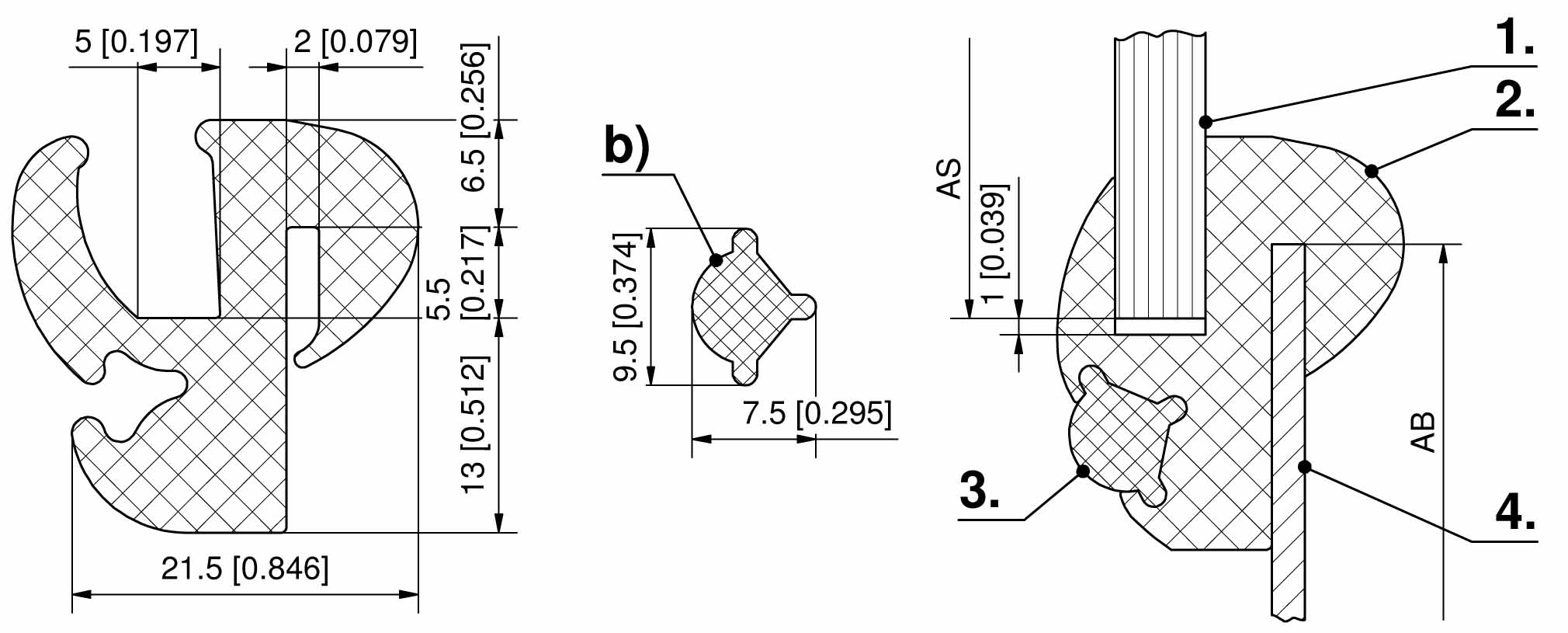

1. window
2. profile
3. filler
4. sheet metal thickness

Please dimension window with 1mm gap around edges.
AS = size of window
AB = size sheet metal

The bending radius refers to the inside of the glass holder.

Note Tolerances!

Selected version

Product number	209-0504.00-00000
Sheet thickness:	2 mm
Collar length:	15 m
Height H:	25 mm
Glass thickness:	5.5 mm
Bending radius:	100
Width W:	21.5 mm
Delivery Unit:	15 m

Related Products

Accessories

Article no.

Name

209-1003.00-00000

Fitting tool for window seals, incl. eye 701-7068

701-7066.00-00000

Eye for fitting tool, small

209-1001.00-00000

Pair of universal scissors

209-1002.00-00000

Pair of mitring scissors

Specific accessories

Article no.

Name

b)

209-0602.00-00000

Filler
