Nut Plates

ICON_ROHS
6_042
E_6-042
6_042
E_6-042

Advantages

  • The nut plates have been designed to allow an easy installation of the hinges in our 218-series. Tightening the screws from the outside only.
  • Elimation of the time-consuming fitting of small single nuts in often quite difficult accessible corners.
  • Oversized holes/cutouts allow for horizontal and/or vertical adjusting.
  • Adjustment and alignment with just one tool, only from outside.
  • The teeth (1.) on all 4 corners create enough friction to simplify installation and adjusting.
  • If this friction is not wanted: these teeth can also point away from the inner skin of the door/frame.

Material

  • Nut plate: steel, zinc plated

Remarks

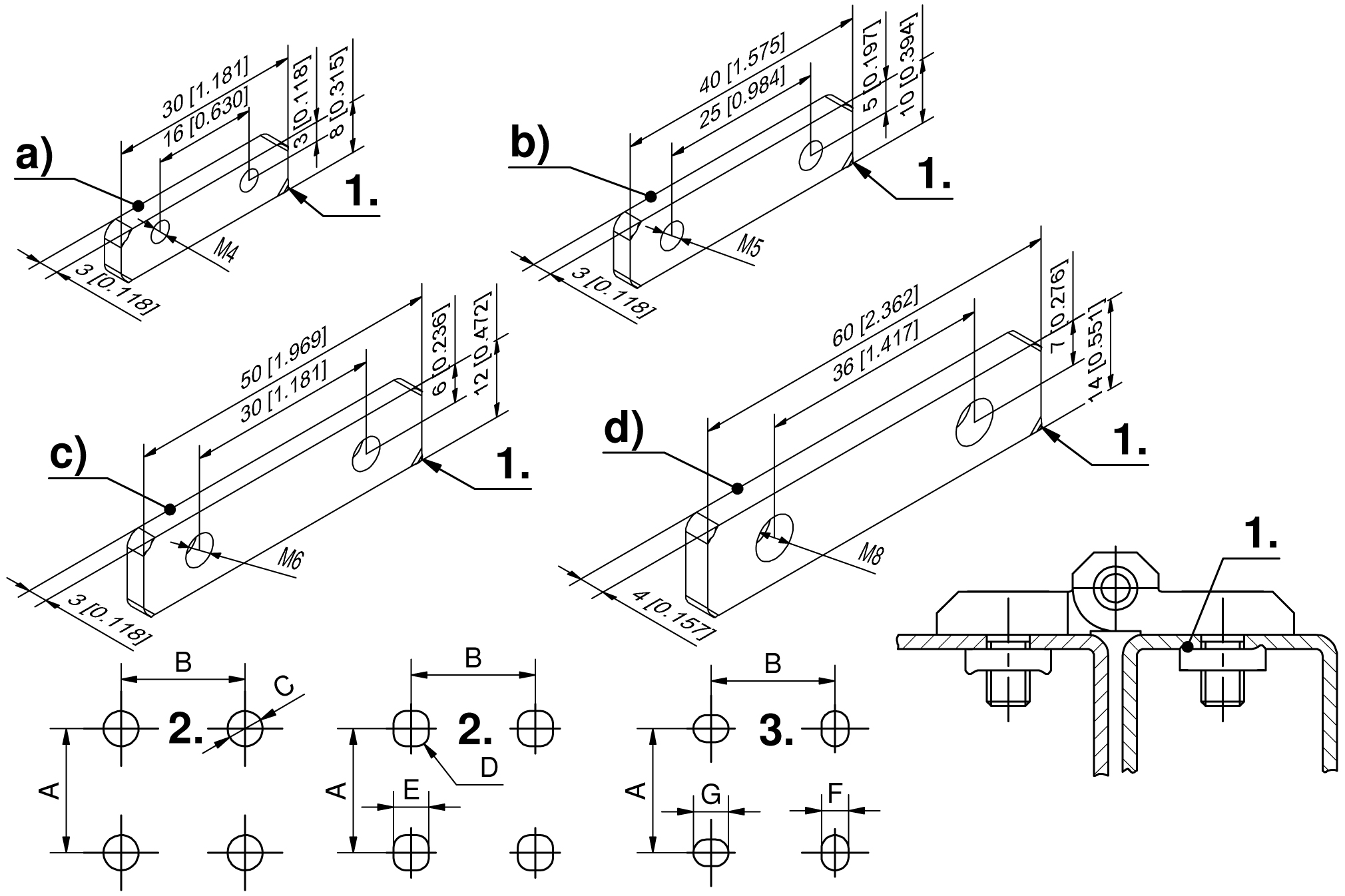

2. cutout for horizontal and vertical adjustment
3. cutout for horizontal and/or vertical adjustment

Selected version

Product number 218-0908.15-00000
Delivery Unit: 10 pcs.
B: 25 mm
Thread size: M5
D: 2,5 mm
G: 7,5 mm
F: 5,5 mm
E: 7,5 mm
C: 7,5 mm
A: 25 mm
CAD model
Product data sheet
