[1-043DST]

DST Fastener 30x14

ICON_DIRAK_GEERDET
ICON_ROHS
ICON_DIN_61373
ICON_WERKZEUGLOS
ICON_DST
1_043DST
E_1-043DST
1_043DST
E_1-043DST

Advantages

  • With DIRAK-SNAP-Technology for joining flat metal sheets.
  • For cutout 30x14.
  • Tool-less installation.
  • Simple clip-in into its cutouts.
  • The riveted grounding clip assures an electrical connection between the sheets and the fastener itself.
  • Seismic-proof according to GR-63-CORE, Issue 4.
  • Vibration-proof according to DIN EN 61373.
  • The teeth of the riveted grounding clip penetrate the painted edge of the cutouts.
  • By using the tool for uninstallation 292-0311.15 a disassembly from the front is possible.

Material

  • Housing: zinc die, black
  • Snap wedges: sintered steel, zinc plated
  • Grounding clip: stainless steel

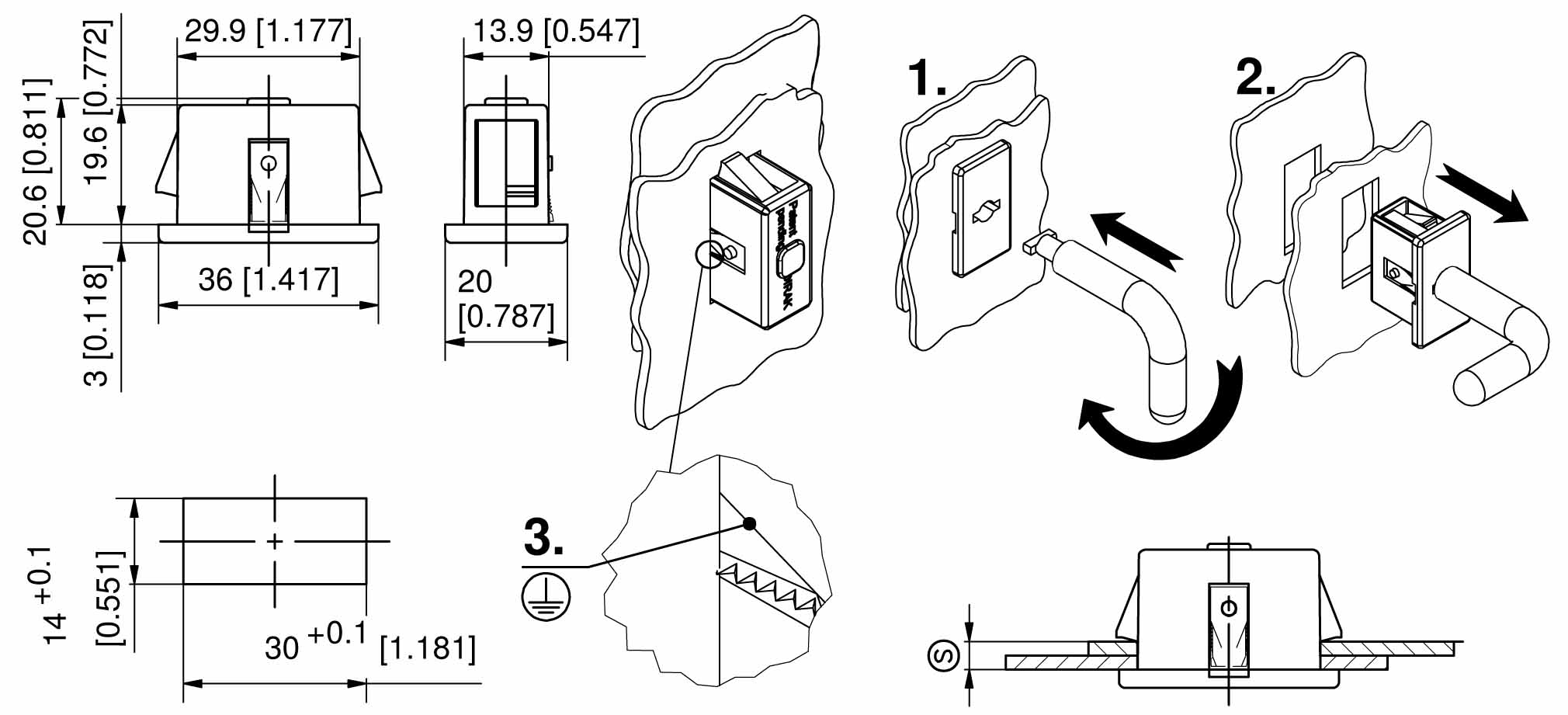

Remarks

1. and 2. uninstallation
3. grounding clip

The (S) dimension indicates the total thickness of the sheet metal panels
Please select version Product data sheet

Related Products

Accessories

6_080DST
292-0311.15-00000 Tool for uninstallation
5_960DST
292-0402.00-03014 Cutout-cover
