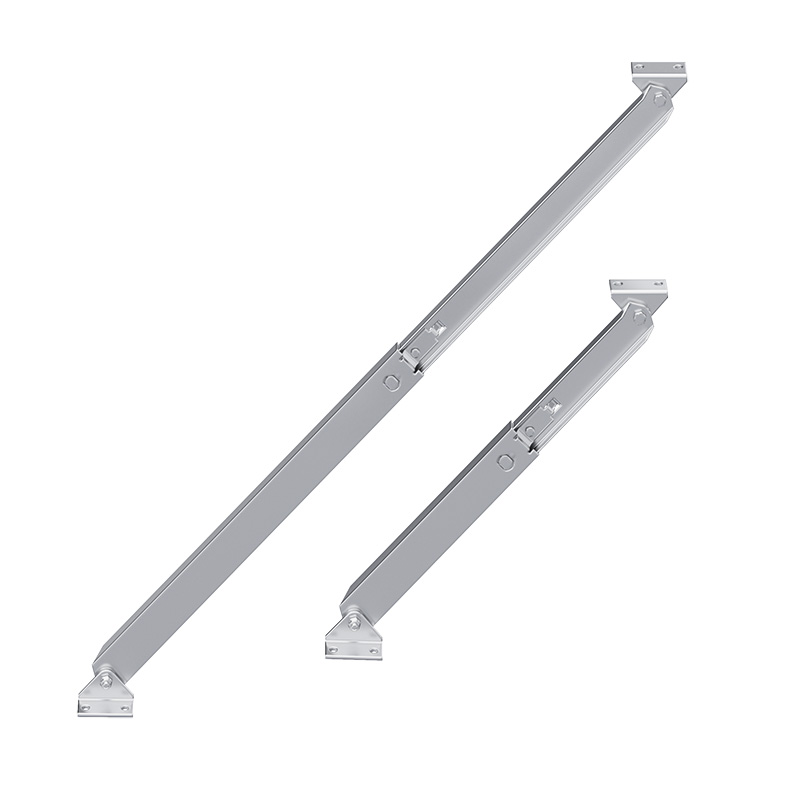

Telescopic Cover Support Stainless Steel

ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_EDELSTAHL
7_300
E_7-300
E_7-300_100_1
E_7-300_100_2
E_7-300_900
7_300
E_7-300
E_7-300_100_1
E_7-300_100_2
E_7-300_900

Advantages

  • For doors and lids.

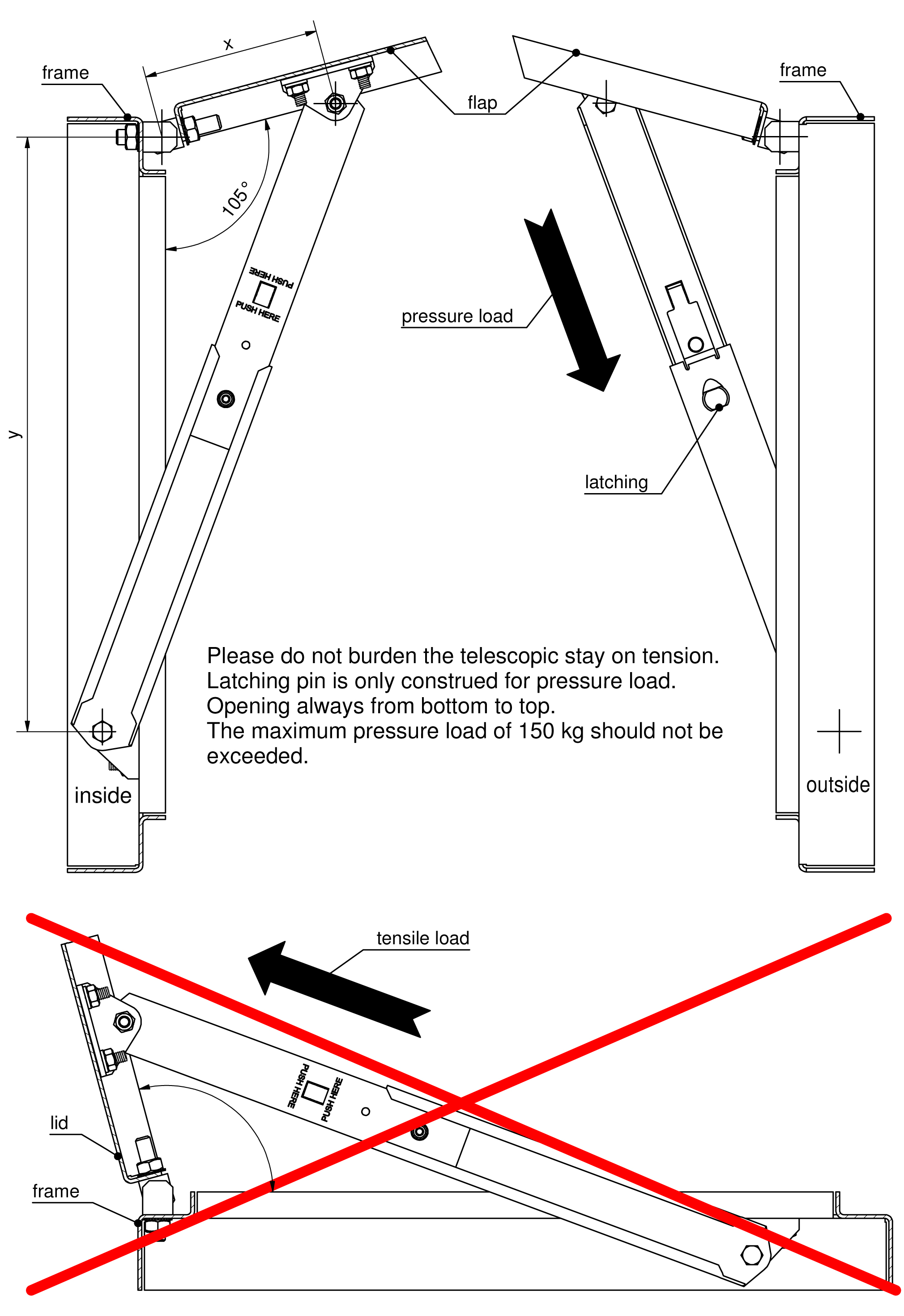

  • For wide lids with 2 cover stays you can release the 2 stops by installing 2 eyelets connected by a steel wire.
  • RH / LH application.

Material

  • Telescopic cover support: AISI 304
  • Washer: POM

Remarks

Other length L on request.

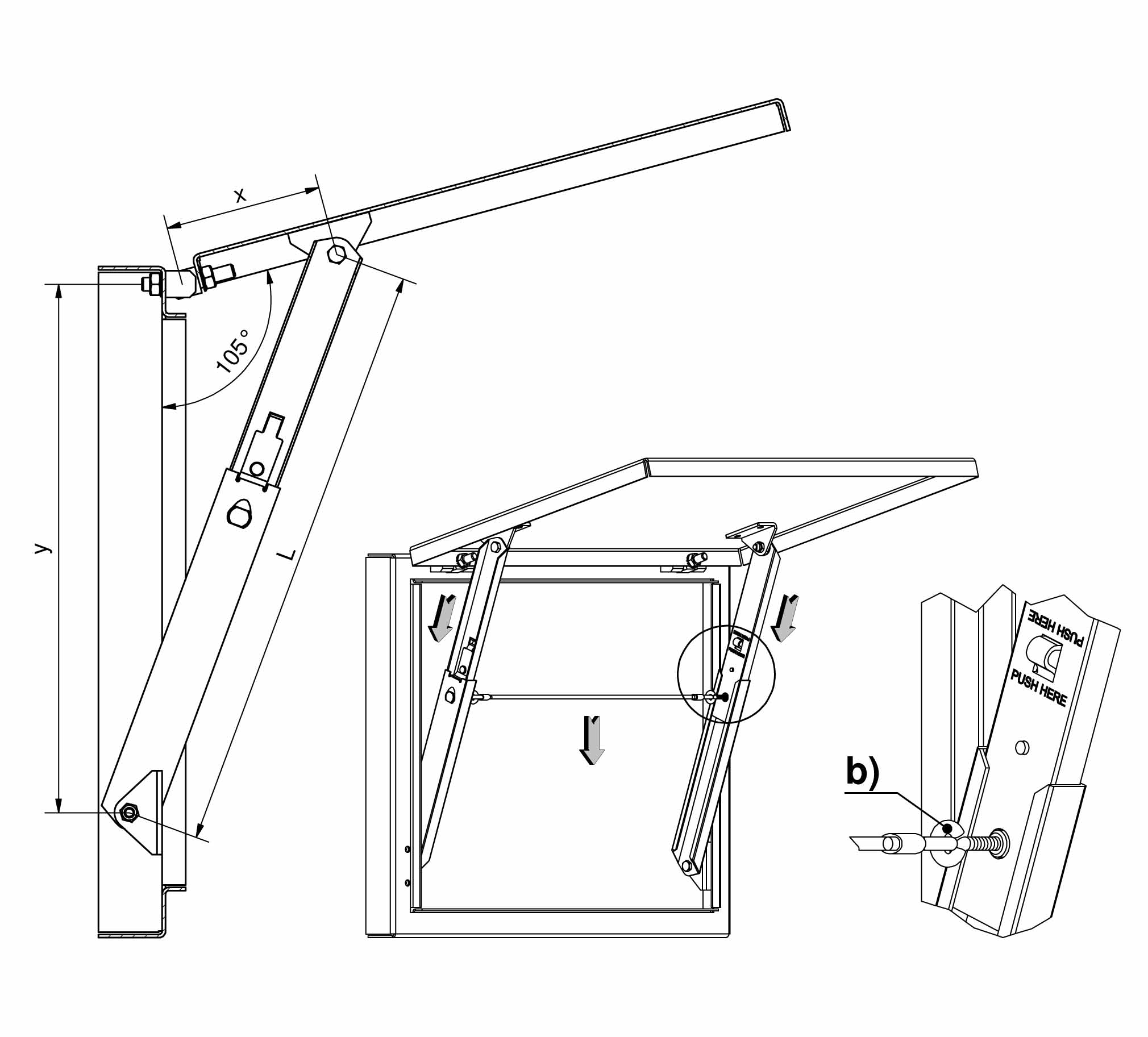

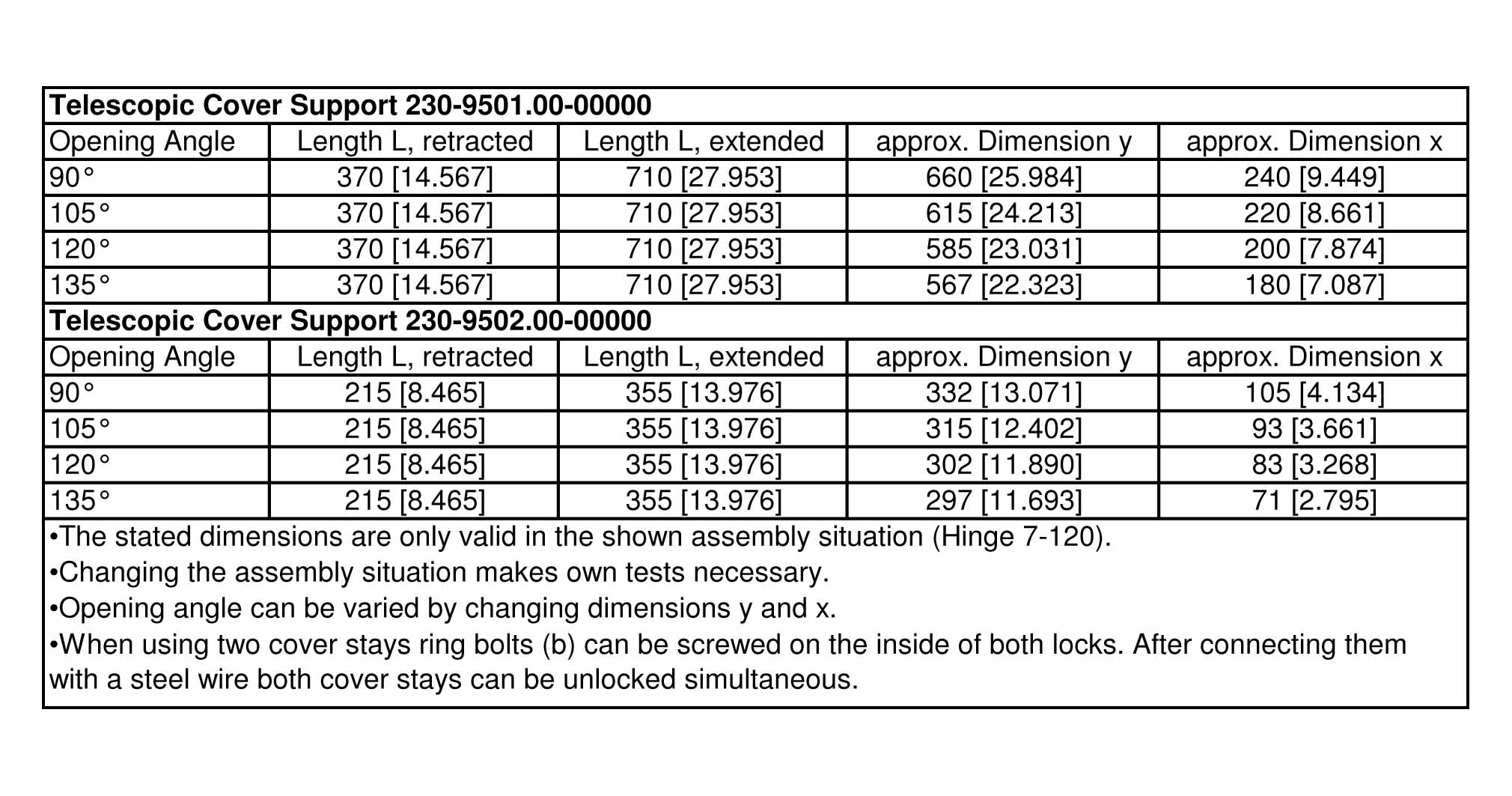

Dimensions X and Y determine the opening angle.

Selected version

Product number 230-9501.00-00000
Delivery Unit: 5 pcs.

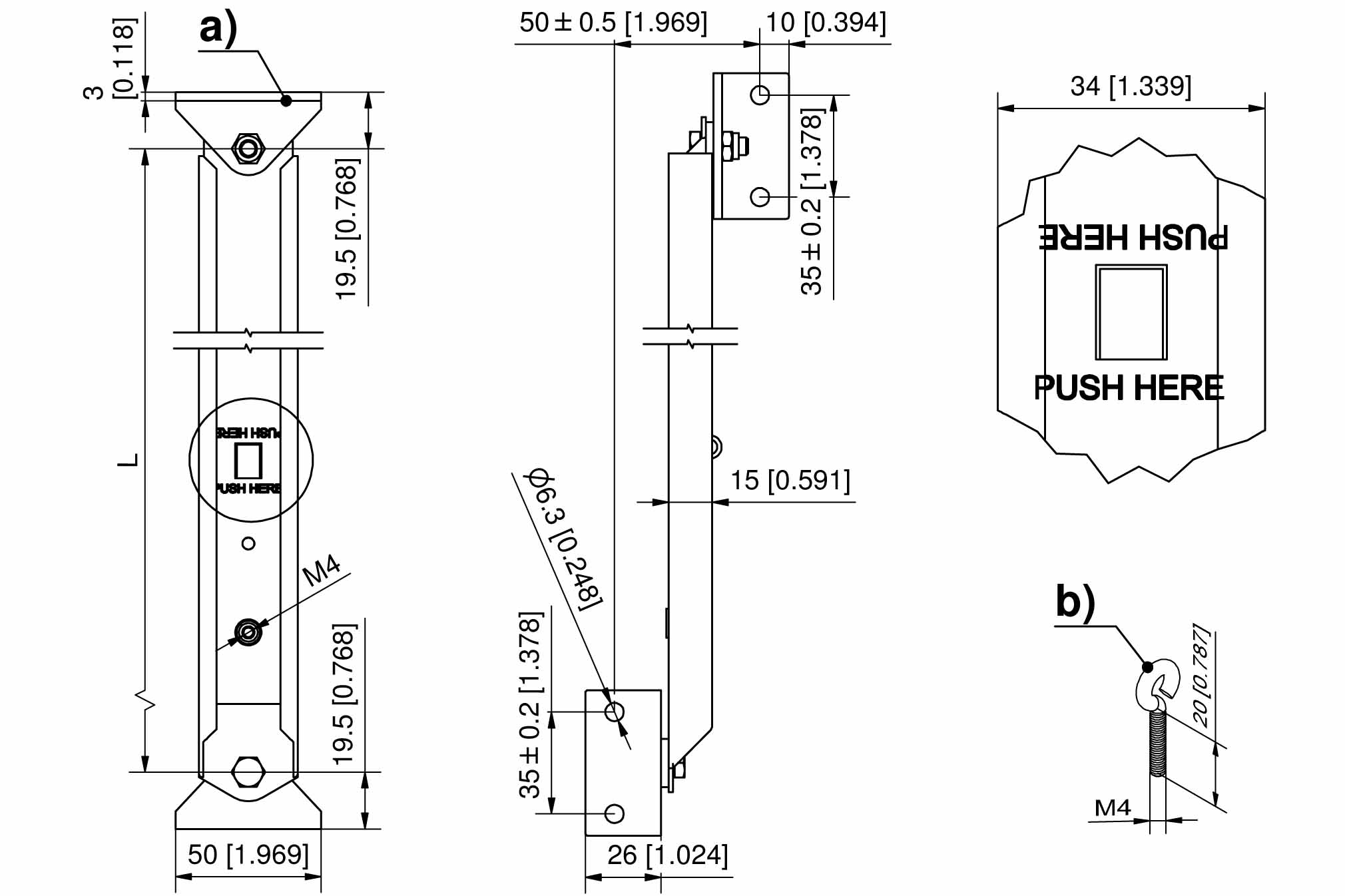

Length L retracted: 370±2
Length L extended: 710±2
CAD model
Remove selection Product data sheet

Related Products

Accessories



Article no.
Name

b
860-0048.07-00420
Eyelet
Details
Name:
Eyelet
Material:
steel
Surface:
zinc plated
Delivery Unit:
5 pcs.
Open product in new tab

Product Configuration

Selected version

Product number 230-9501.00-00000
Delivery Unit: 5 pcs.
Length L retracted: 370±2
Length L extended: 710±2

Selected additional products

[none]
