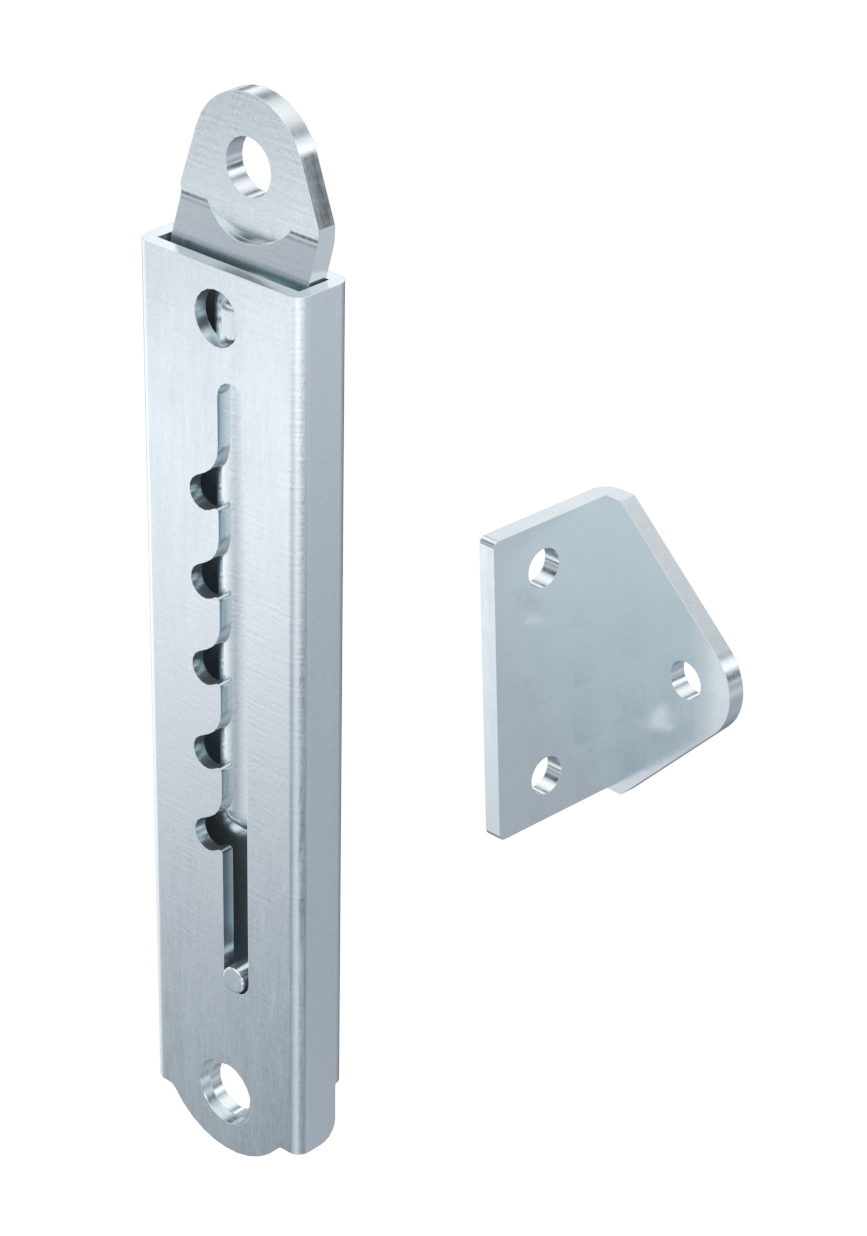

Telescopic Cover Support

ICON_ROHS
ICON_TUERANSCHLAG_LR
6_174
E_6-174
E_6-174_100_1
E_6-174_100_2
6_174
E_6-174
E_6-174_100_1
E_6-174_100_2

Advantages

  • Telescopic cover stay with multiple stops and release in the end position, for desk-leafs and covers.
  • RH / LH application.

Material

  • Telescopic cover support and mounting angle: steel, zinc plated

Remarks

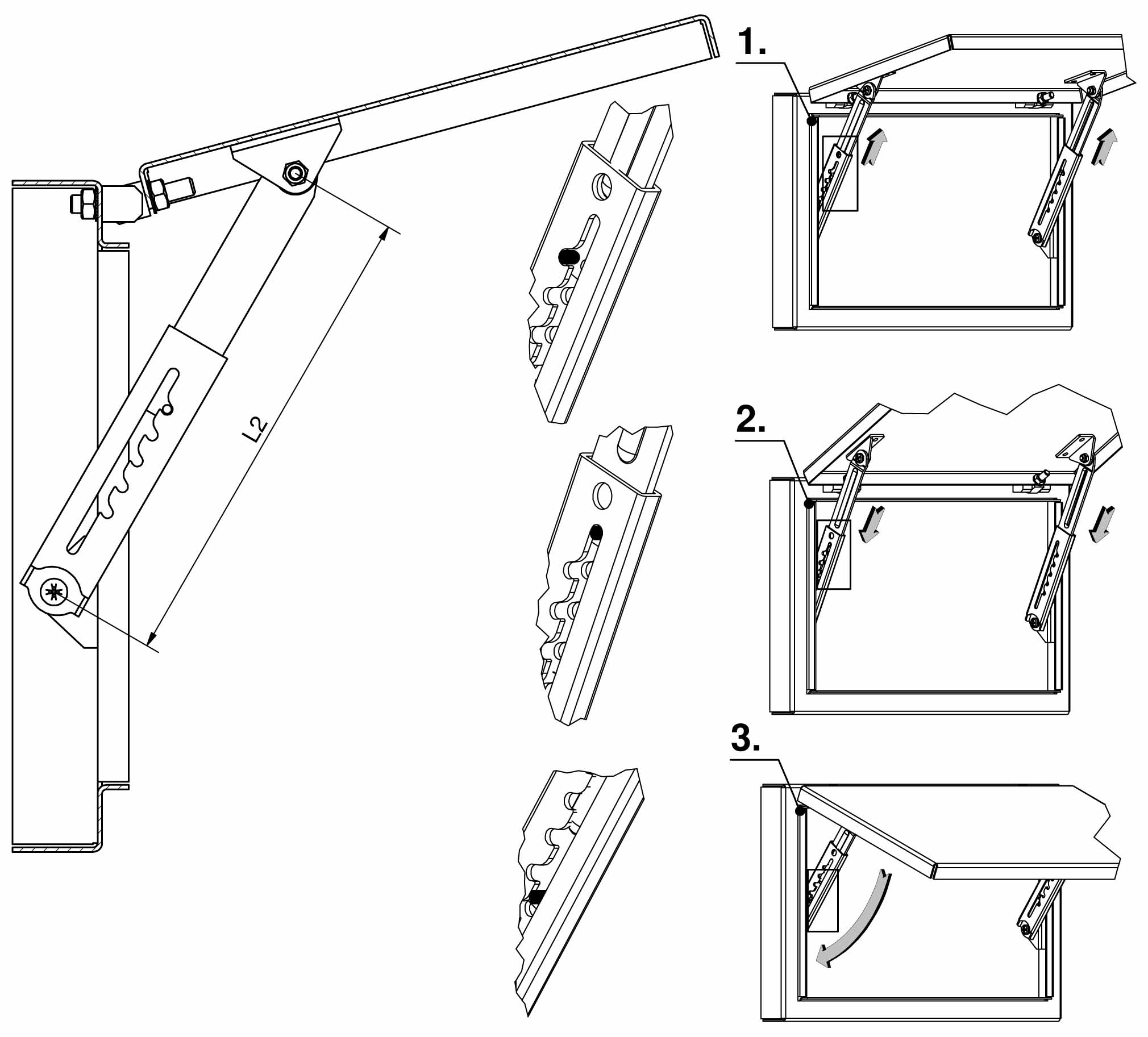

To release the mechanism, the cover stay has to be extended completely.

2 spacers for M6 screws are included.

Selected version

Product number 230-9309.00-00000
Delivery Unit: 1 pc.

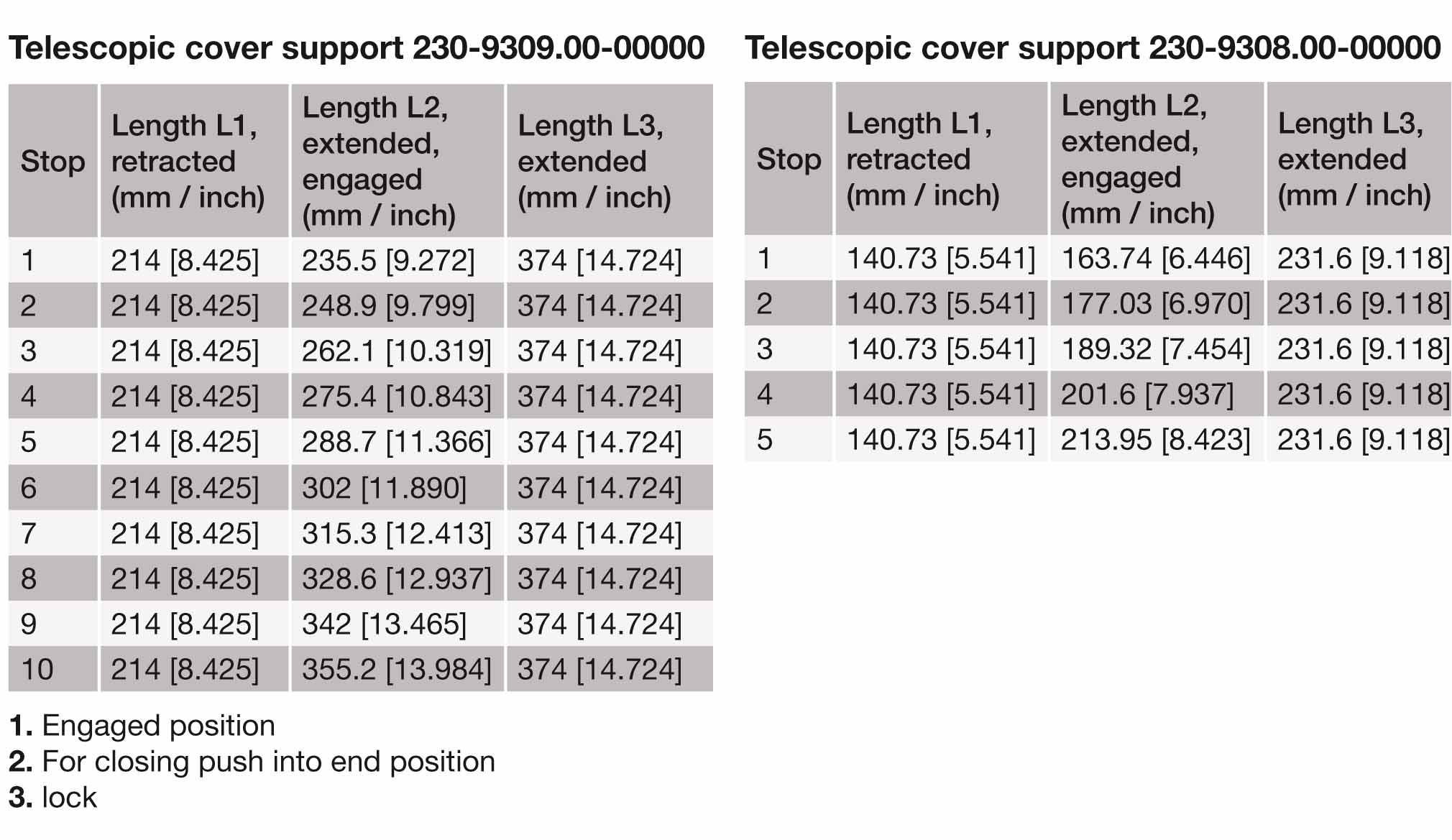

Quantity of stops: 10

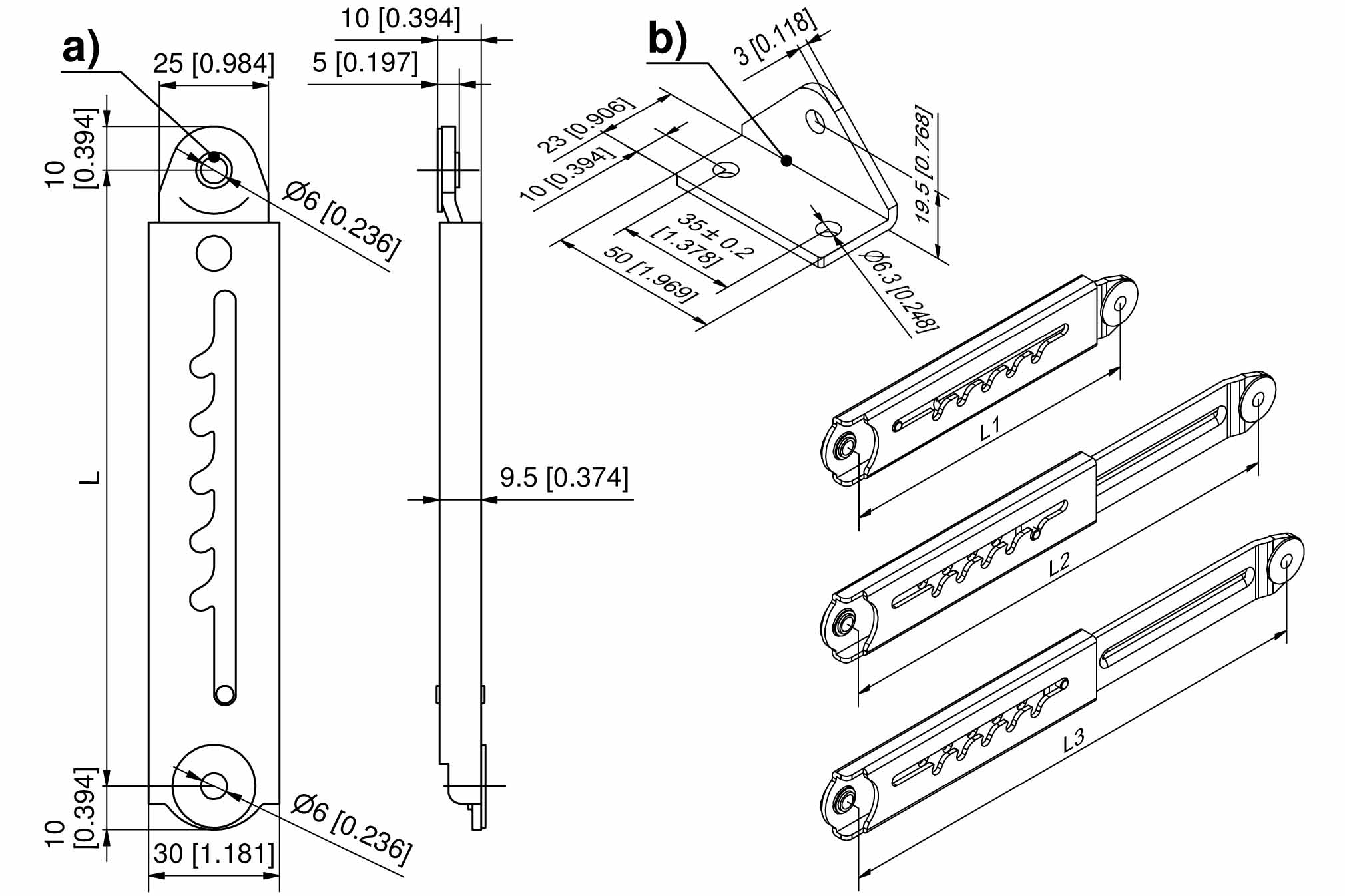

Length L3 extended: 374±2
10th stop: 354 mm
9th stop: 340.5 mm
8th stop: 327 mm
7th stop: 314.5 mm
6th stop: 301 mm
5th stop: 288 mm
4th stop: 274,5 mm
3rd stop: 261 mm
2nd stop: 248 mm
1st stop: 234,5 mm
Length L1 retracted: 214±2
CAD model
Remove selection Product data sheet

Related Products

Accessories



Article no.
Name

b
230-9401.00-00000
Mounting angle
Details
Name:
Mounting angle
Material:
steel
Surface:
zinc plated
Delivery Unit:
5 pcs.
Open product in new tab

Product Configuration

Selected version

Product number 230-9309.00-00000
Delivery Unit: 1 pc.
Quantity of stops: 10
Length L3 extended: 374±2
10th stop: 354 mm
9th stop: 340.5 mm
8th stop: 327 mm
7th stop: 314.5 mm
6th stop: 301 mm
5th stop: 288 mm
4th stop: 274,5 mm
3rd stop: 261 mm
2nd stop: 248 mm
1st stop: 234,5 mm
Length L1 retracted: 214±2

Selected additional products

[none]
