Dual Hook FS Stainless Steel 23mm

ICON_ROHS
ICON_FLACHSTANGE
ICON_EDELSTAHL
DIRAK_IP_ERGAENZUNG
7_910
E_7-910
7_910
E_7-910

Advantages

  • Installation by countersunk screws M6
  • IP65 according to DIN EN 60529 with flat external seal (optional).

Material

  • Dual hook: AISI 316, surface bead blasted finish

Remarks

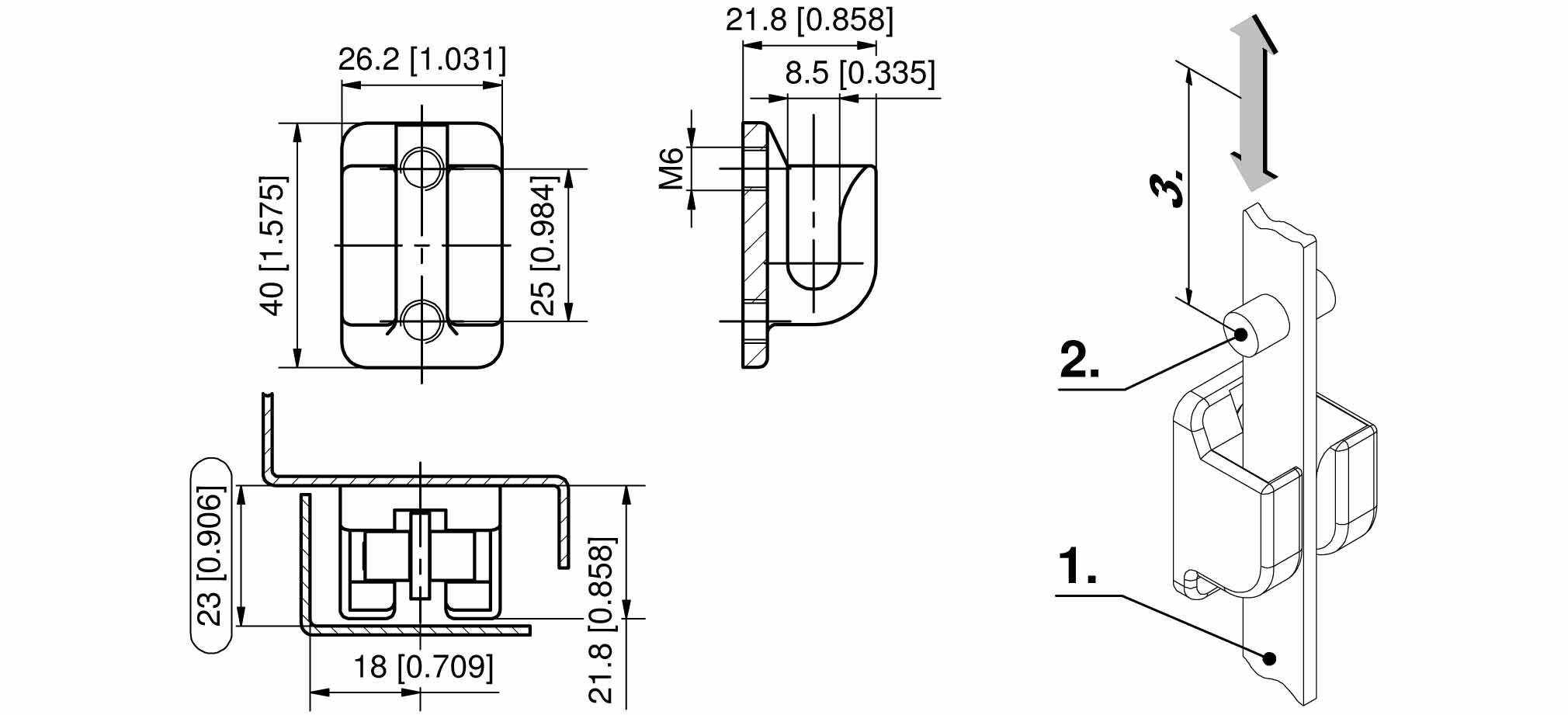

Required space inside the bend 23mm

1. flat rod
2. dual rollers
3. stroke 24mm
Please select version Product data sheet

Available versions

Dual hook

Product number
Version
Installation type
Delivery Unit
208-1439.95-00000
with thread M6
screw-on
1 pc.
