[7-106.02]

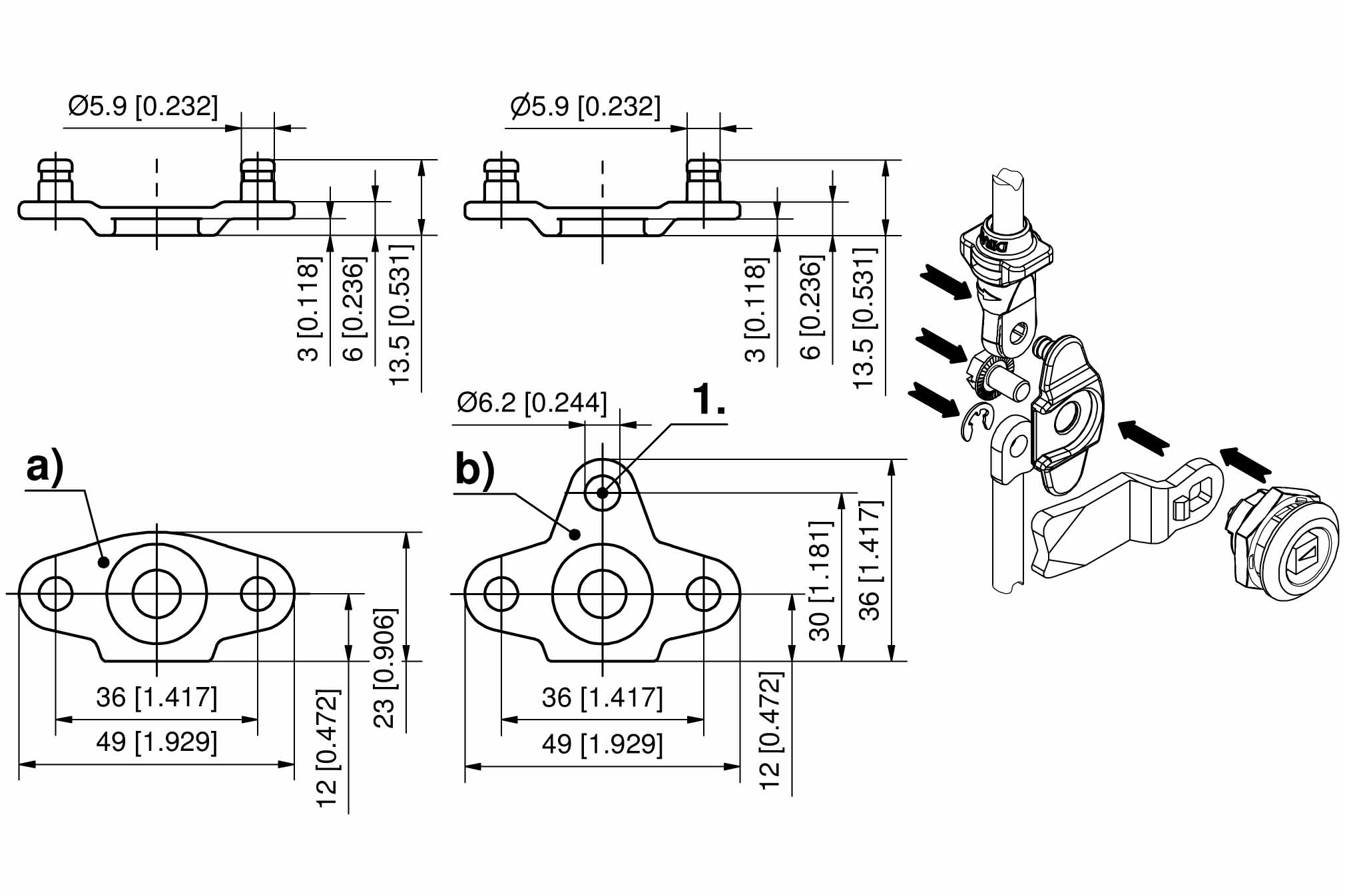

3- and 4-Point Cam Adapter Stainless Steel

Advantages

For use in combination with standard cams see product system 1-102 and 7-080, used for 3- and 4-point latching applications.
4-point adapter can be used where an additional function should be available during opening via a rod control, e.g. as a safety device or status monitoring (among others: current interrupter, standstill monitor).
The adapter is attached to the back of the cam and does not affect the H-dimension!
