[7-077.02]

H-Dimension Adjustment Stainless Steel

ICON_ROHS
ICON_WERKZEUGLOS
ICON_EDELSTAHL
7_077_02
E_7-077_02
7_077_02
E_7-077_02

Advantages

  • Suitable for all M10 square threaded rods.
  • For tool-less adjustment of cams (with and without stop).
  • Variable and easy adjustment with knurled wheel.
  • 0.25mm of adjustment per click.
  • Readjustment possible (e.g. compressed sealing).
  • Vibration-proof.

Material

  • Catch: AISI 301
  • Knurled wheel: AISI 316

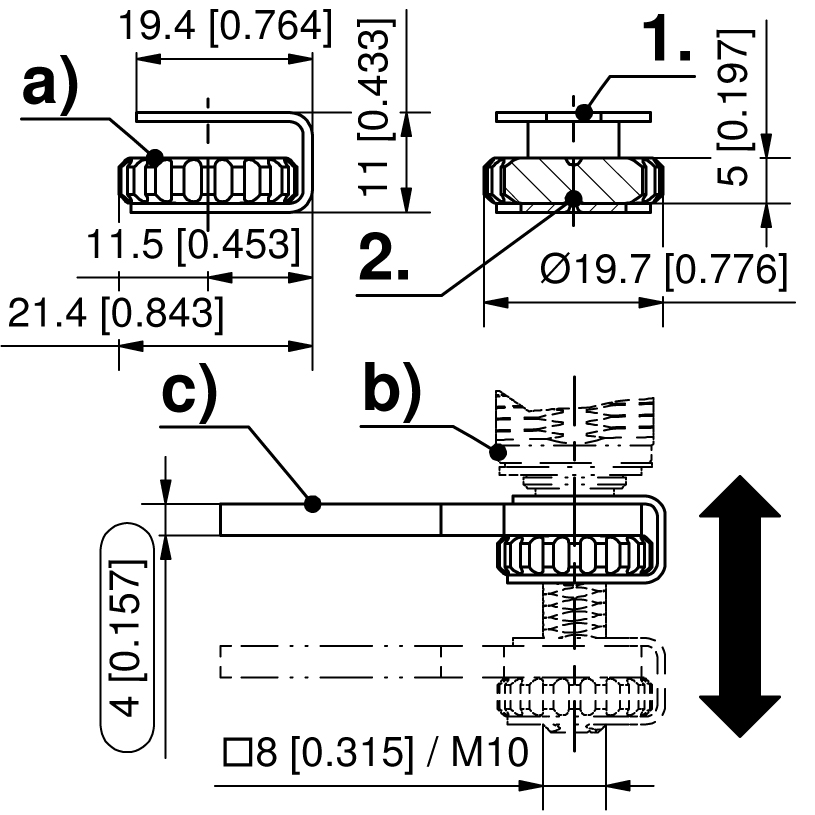

Remarks

1. recess for cams with stop
2. detent

b) quarter-turn
c) cams PS 7-105 and PS 7-105.01
Please select version Product data sheet

Available versions

Catch with knurled wheel


Product number
Thread size
Installation type
Delivery Unit
a)
248-9904.00-00000
M10
tool-less
1 pc.
