Slam-Cam for Quarter-Turn Pr20.1 Stainless Steel

ICON_CUTOUT_20_1
ICON_ROHS
ICON_EDELSTAHL
7_076
E_7-076_1
E_7-076_2
7_076
E_7-076_1
E_7-076_2

Advantages

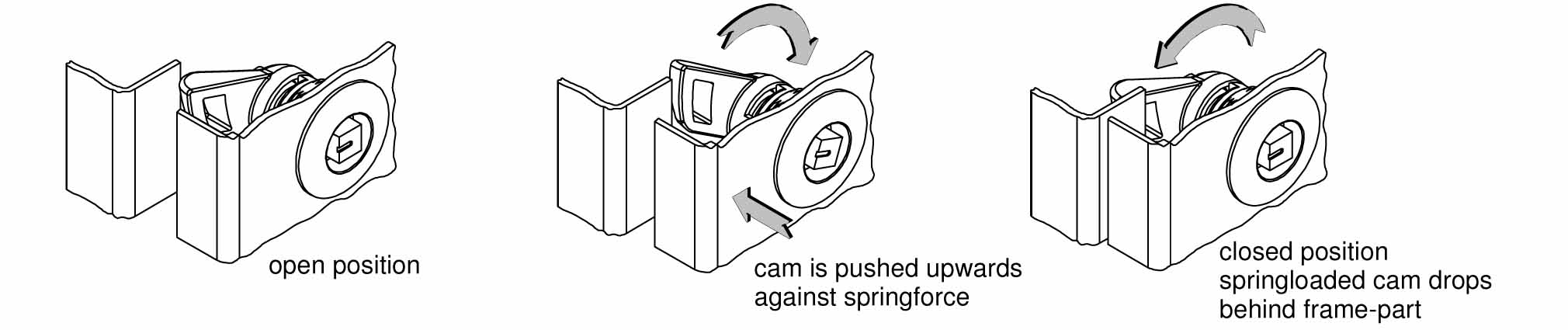

  • Slam-cam for slam doors or flaps.
  • Locking without key or tool.
  • A slam-cam set consists of a cam, a spring and a serrated screw with self securing powder dot.
  • This self securing powder dot is to tune / adjust the correct friction for the stroke.

Material

  • Slam-cam: AISI 316
  • Spring: AISI 301
  • Serrated screw: AISI 304

Remarks

Only for quarter-turns with insert.

On request, latch units with this cam should be assembled by DIRAK.
A pre-assembled quarter-turn can be installed through the cutout.
Please select version Product data sheet

Available versions

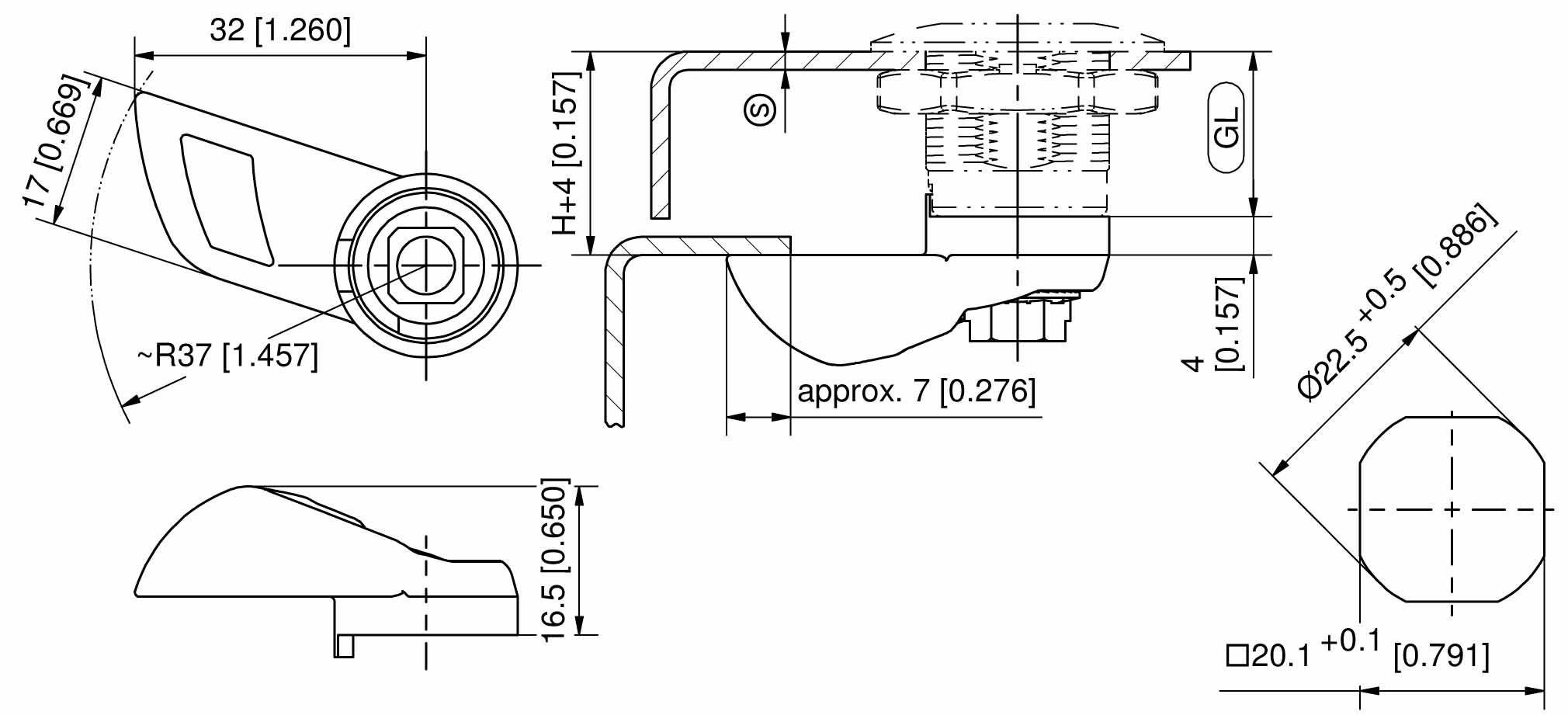

Slam-cams, length 32mm

Product number
Version
Delivery Unit
200-9629.00-00000
RH
1 pc.
200-9630.00-00000
LH
1 pc.
