[7-040]

Rod Latch FS PrC Stainless Steel

ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_FLACHSTANGE
ICON_EDELSTAHL
ICON_CUTOUT_PR_C
ICON_DIN_EN_45545_3_E60_SCHWARZ
ICON_DIRAK_GEERDET
7_040
E_7-040_1
E_7-040_2
7_040
E_7-040_1
E_7-040_2

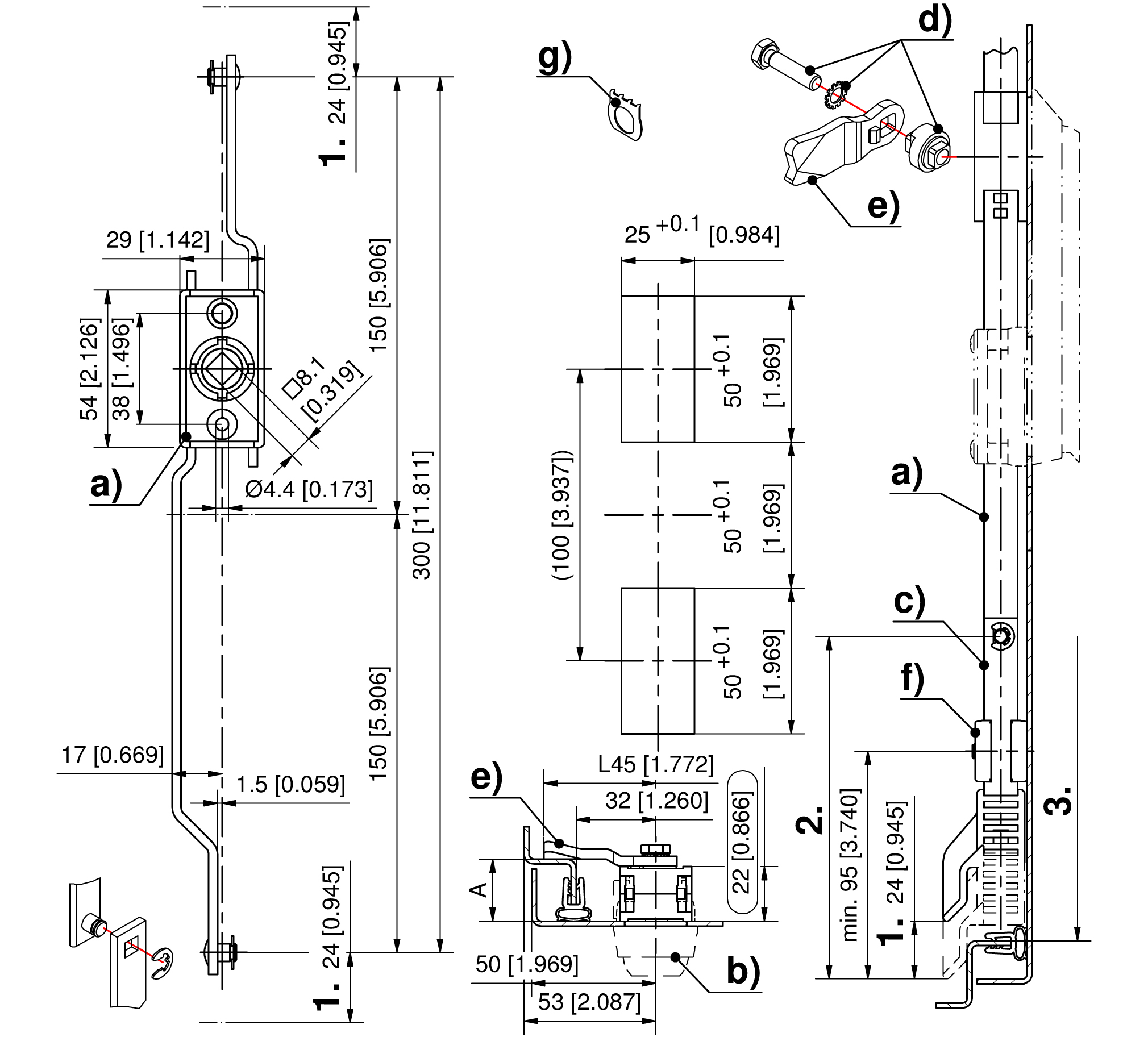

Advantages

  • For cutout C.
  • For application within the sealed area.
  • The latch can be used with escutcheon, handles or swinghandle.
  • Fire protection tested with E60 classification according to DIN EN 45545-3.
  • Grounding by grounding clip (optional).
  • RH / LH application through double symmetry.

Material

  • Housing: AISI 316
  • Rods: AISI 304

Remarks

1. stroke 24mm

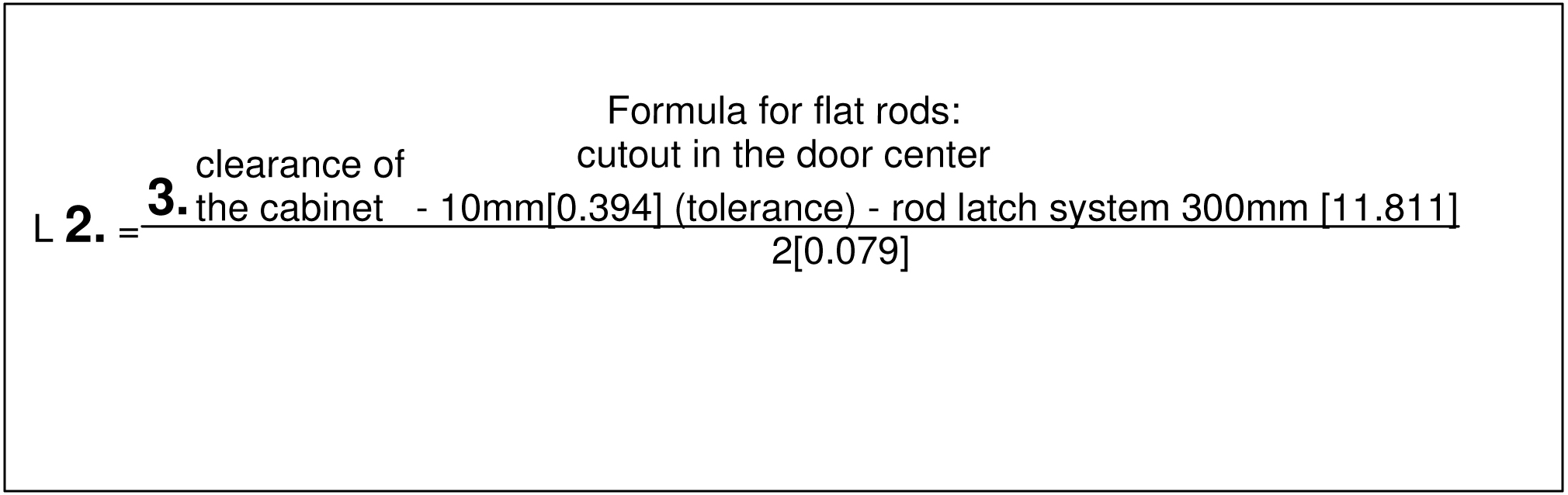

2. length L
3. clearance
Please select version Product data sheet

Available versions

Rod latch


Product number
Rod fastening
Installation type
Delivery Unit
a)
208-9024.00-00000
C-clip
screw-on
1 pc.

Related Products

Accessories

b)
7_034
7-034 Escutcheon PrA / PrC Stainless Steel
b)
7_065
7-060 Swinghandle FS PrC Stainless Steel for PHZ
b)
7_061
7-061 NT Swinghandle FS PrC Stainless Steel for PHZ
c)
3_161
7-070 Flat Rods FS Stainless Steel
d)
7_041
7-041 Cam Adapter Stainless Steel
e)
7_105
7-105 Cams L35/45 Stainless Steel
f)
3_910
208-1501.03-00000 Rod guide PA , 1-part, M6
f)
3_910
208-9790.00-00000 Rod guide stainless steel, 2-parts, M6
f)
3_911
3-911 Rod Guide FS 23mm
g)
3_011
3-011 Grounding Clip Stainless Steel
