[7-030]

Rod Latch RS/FS PrA Stainless Steel

ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_RUNDSTANGE
ICON_FLACHSTANGE
ICON_EDELSTAHL
ICON_CUTOUT_PR_A
DIRAK_IP_ERGAENZUNG
7_030
E_7-030_2
E_7-030_3
E_7-030_1
7_030
E_7-030_2
E_7-030_3
E_7-030_1

Advantages

  • For cutout A.
  • The latch can be used with escutcheon, handles or swinghandle.
  • Installation with or without cam.
  • For application within the sealed area.
  • Can also be used outside the seal in edge area.
  • RH / LH application through double symmetry.
  • Grounding by grounding clip (optional).

Material

  • Rod latch: AISI 316
  • Adapter: AISI 303

Remarks

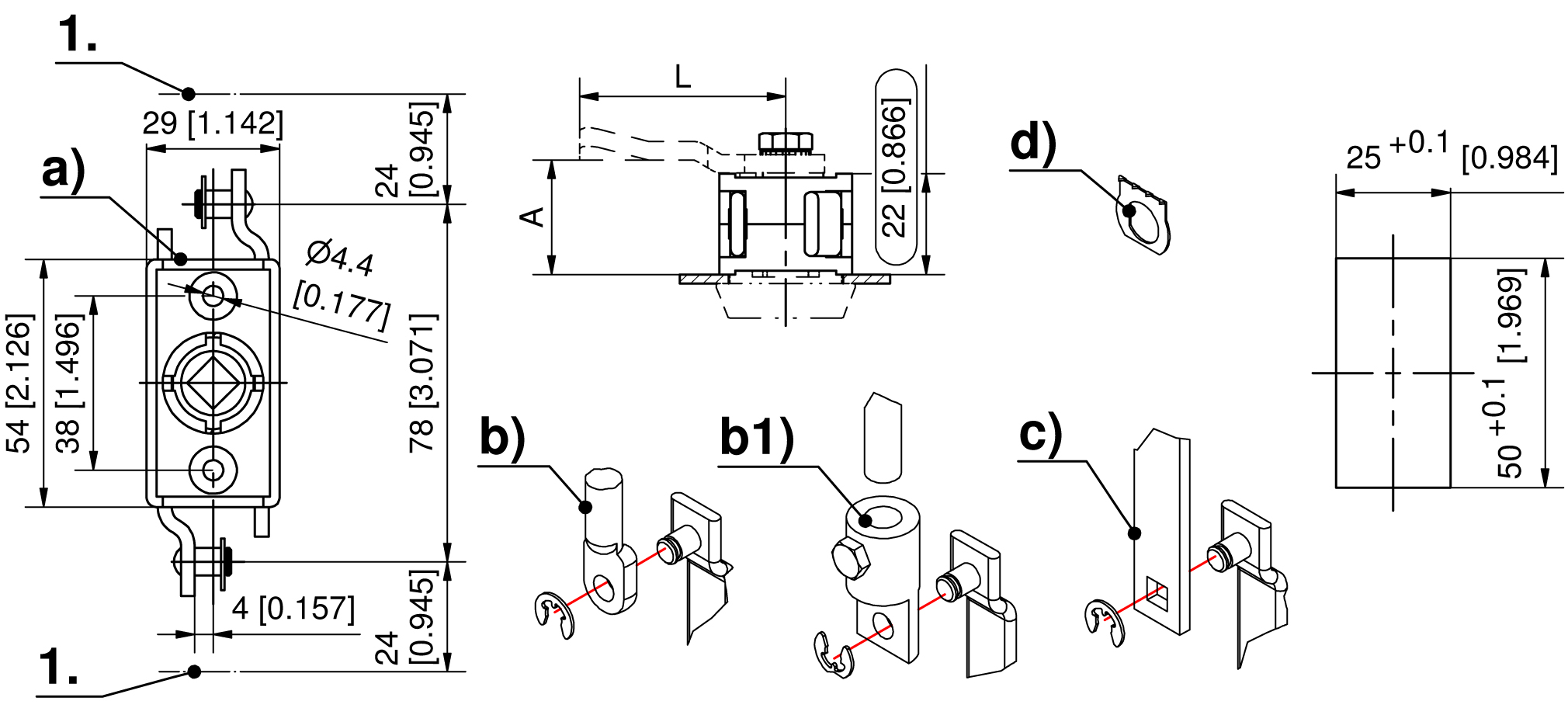

1. stroke 24mm
Please select version Product data sheet

Available versions

Rod latch


Product number
Rod fastening
Installation type
Delivery Unit
a)
208-9025.00-00000
C-clip
screw-on
1 pc.

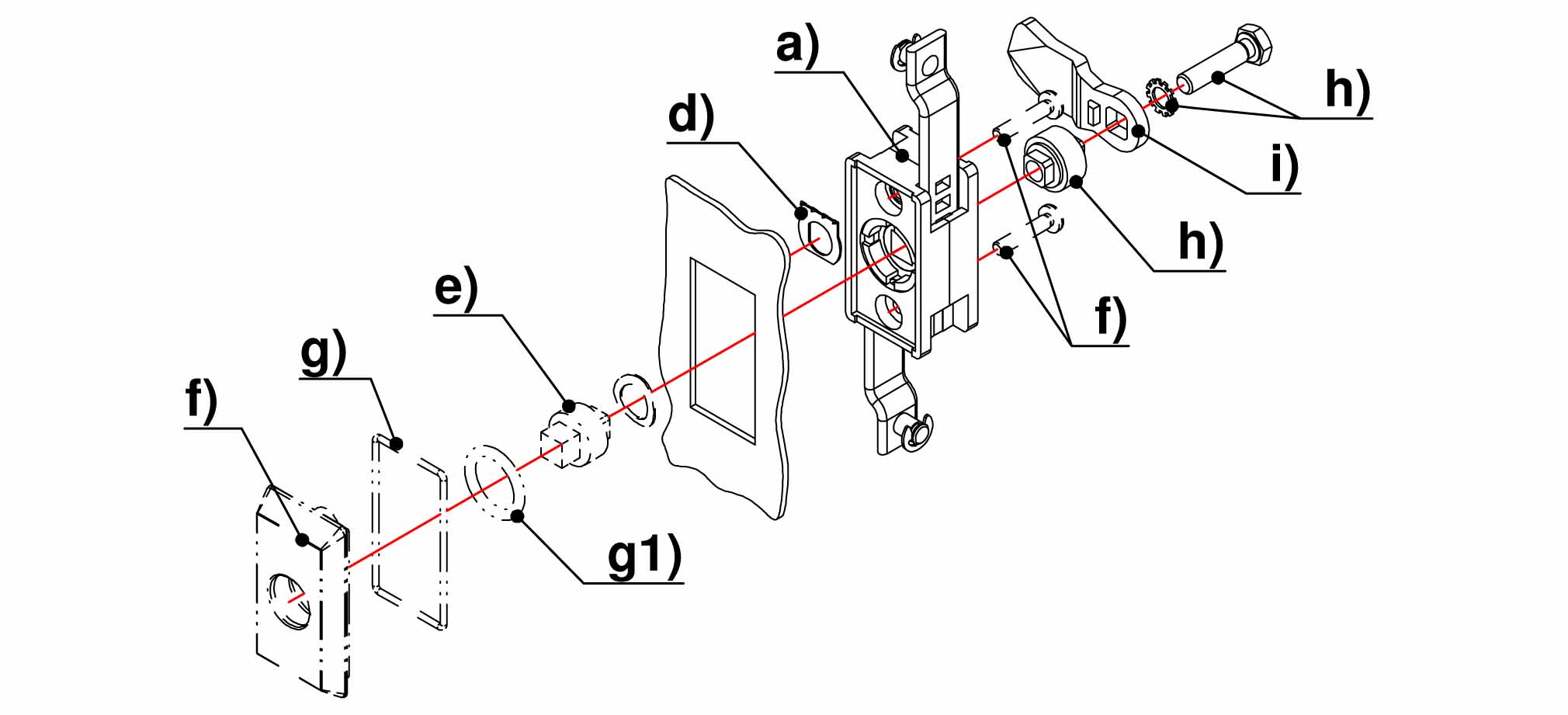

Related Products

Accessories

b)
7_106
7-106 Round Rods Stainless Steel
b1)
7_106_03
200-9603.00-00000 Adapter for Round Rods Ø8mm Stainless Steel
c)
3_161
7-070 Flat Rods FS Stainless Steel
d)
3_011
3-011 Grounding Clip Stainless Steel
e)
7_082
7-082 Insert Stainless Steel Pr20.1
f)
7_034
7-034 Escutcheon PrA / PrC Stainless Steel
f)
7_035
7-035 T- and L-Handle FS PrA Stainless Steel
g1)
839-3771_00-00935
208-1801.00-00000 O-ring 16 x 3.0mm
g)
839-3771_00-00935
208-1802.00-00000 O-ring 39.45 x 1.78mm
h)
7_041
208-9406.00-00000 Cam adapter with hex. head screw M6x25 + serrated lock washer
i)
7_105
7-105 Cams L35/45 Stainless Steel
