Window

ICON_ROHS
ICON_WERKZEUGLOS
ICON_IP65
6_227
E_6-227
6_227
E_6-227

Advantages

  • Window, clip-in, for door-thickness 0.8 to 2.5mm.
  • Version with o-ring is IP65 according to DIN EN 60529.

Material

  • Window: polycarbonate PC
  • O-ring: NBR

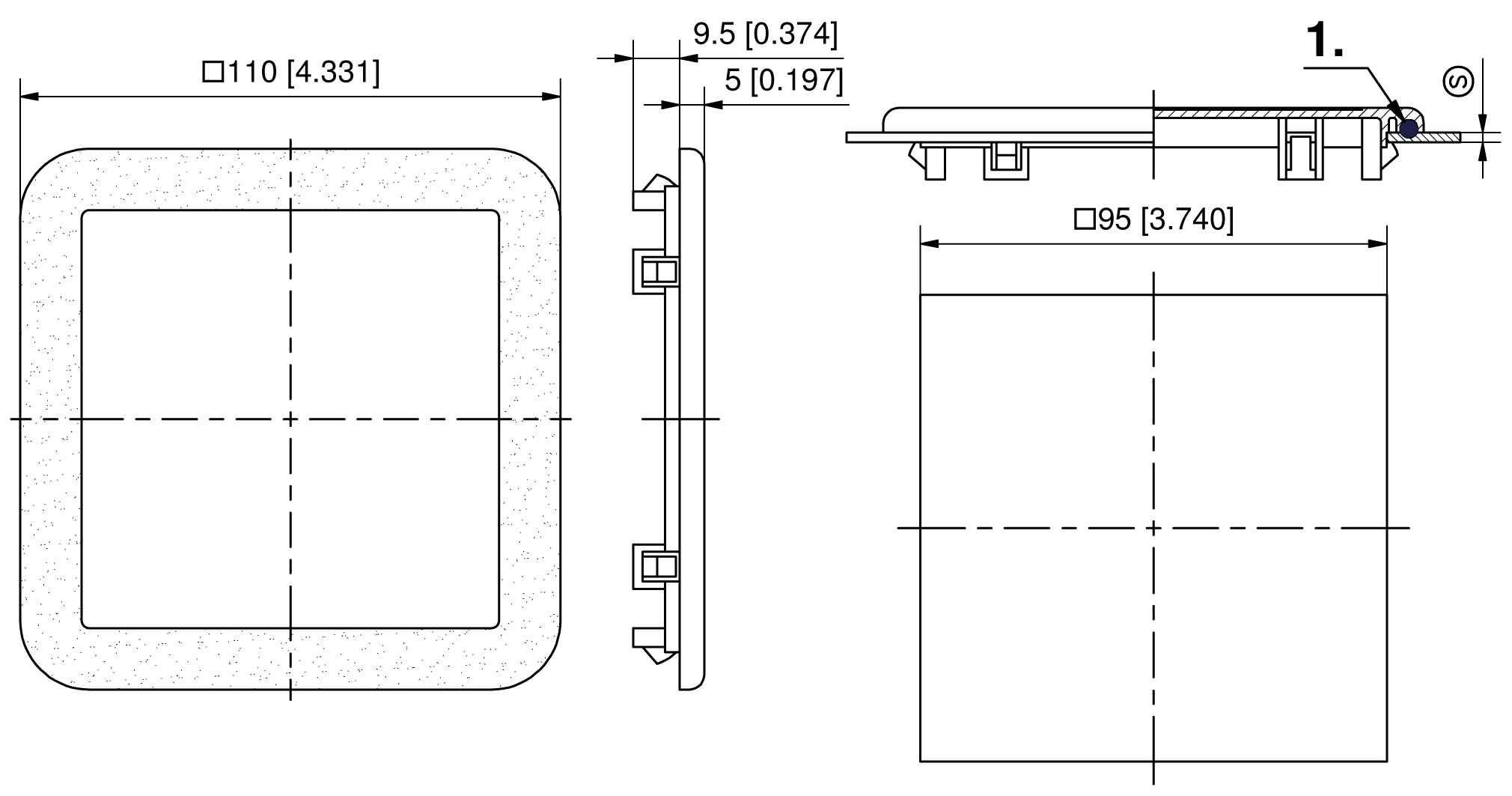

Remarks

1. o-ring
Please select version Product data sheet

Available versions

Window

Product number
Version
Width
Height
Cutout
Installation type
Delivery Unit
251-0102.00-00000
without o-ring
110 mm
110 mm
□95
clip-in
1 pc.
251-9102.00-00000
with o-ring
110 mm
110 mm
□95
clip-in
1 pc.
