Adapter Set for Swinghandle

ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_RUNDSTANGE
ICON_CUTOUT_PR_C
ICON_CUTOUT_PR_B
3_152
E_3-152
3_152
E_3-152

Advantages

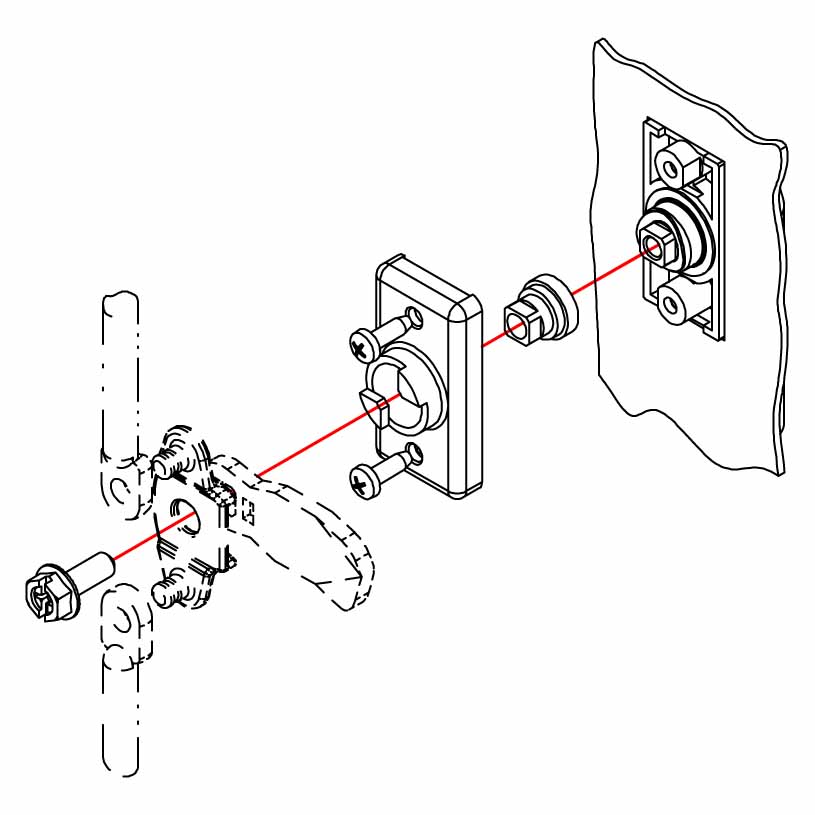

  • Adapter for conversion of swinghandles for flat rods to round rods/ cam drive.
  • RH / LH application.
  • 90° stop.
  • Use of cams, 3-point cams and 3-point cam adapter with stop.
  • Overtightening of the cam/3-point cam not possible due to the stop.

Material

  • Bearing plate: PA, black
  • Adapter: zinc die, untreated

Remarks

Please select version Product data sheet

Available versions

Adapter set

Product number
2-point locking
3-point locking
Delivery Unit
207-9703.00-00000
Yes
Yes
1 pc.
