Rod Latch RS PrC

ICON_RUNDSTANGE

ICON_CUTOUT_PR_C

ICON_DIRAK_GEERDET

Advantages

For cutout C.
Both flat rods of the rod latch have to be used with rod guides (e).
In this configuration both round rods have the same length.
The 4 weld-studs for the rod guides version e) and f) are positioned exactly in the line with the center of the latch.
RH / LH application through double symmetry.
Grounding by grounding clip (optional).

Material

Rod latch: zinc die, untreated / steel, zinc plated

Remarks

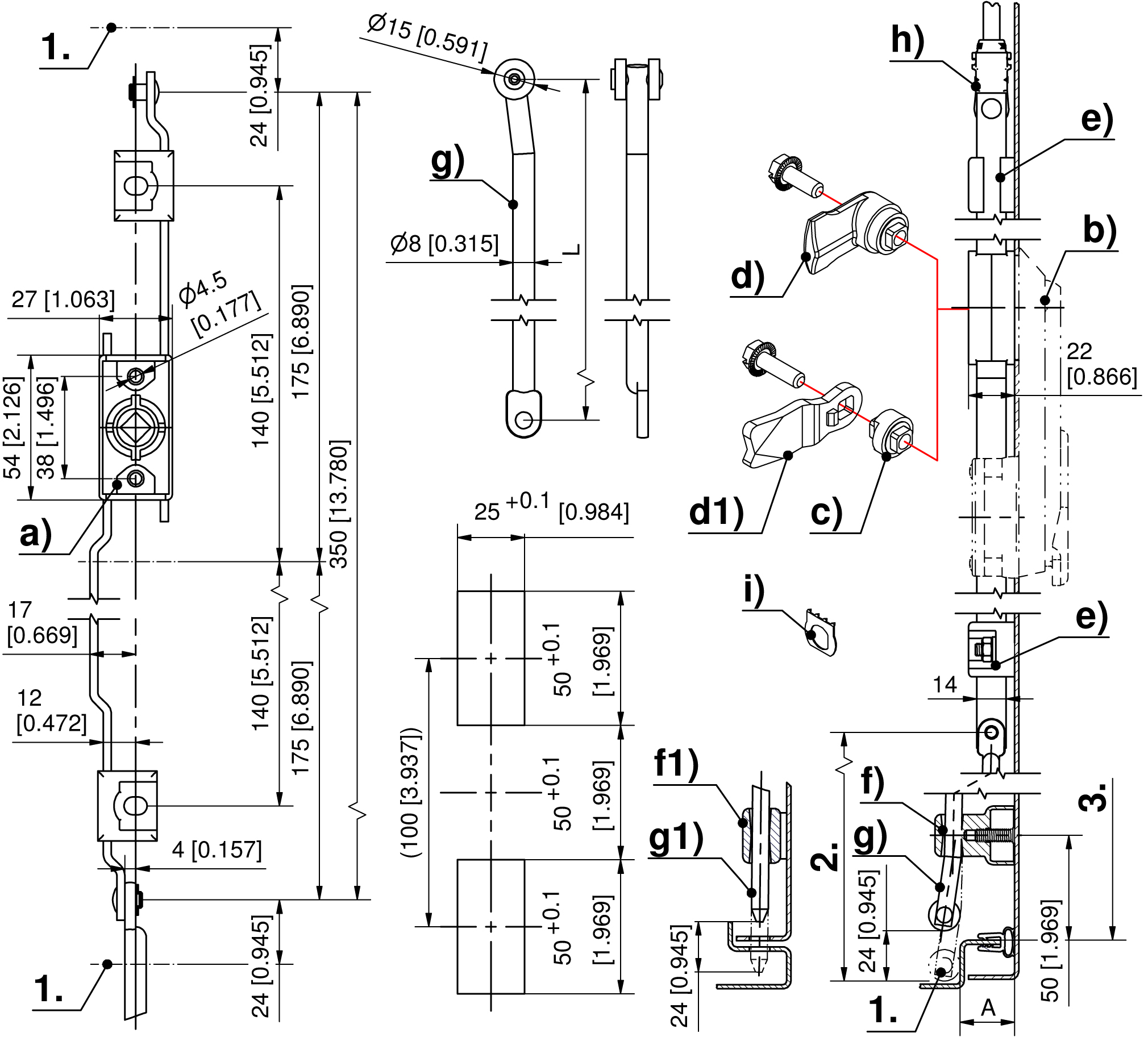

1. stroke 24mm
2. length L
3. clearance

Both flat rods of the rod latch have to be used with rod guides (e).

Available versions

Rod latch

Product number

Rod fastening

Installation type

Delivery Unit

208-9015.00-00000

Related Products

Accessories

b)

3-101 Escutcheons and Inserts

b)

3-140 Handles for Rod Latch FS PrC

b)

3-150 Swinghandle FS PrC for PHZ

c)

3-163 Cam Adapter Zinc Die

d)

208-9401.00-00000 Cam with square, A25, L30 with serrated screw M6x16

d)

208-9402.00-00000 Cam with square, A20, L40 with serrated screw M6x16

d)

208-9404.00-00000 Cam with square, A18, L40 with serrated screw M6x16

d)

208-9408.00-00000 Cam with square, A30, L30 with serrated screw M6x16

d1)

1-102 Cams L35/45 Steel

e)

3-910 Rod Guide FS 23mm

f)

1-190 Rod Guides RS

g)

201-9021.00-Lxxmm Round rod, variable length, with eye parallel to the roller

g1)

1-170 Round Rods with Eye

g1)

1-180 Round Rods for Adapter

h)

1-181 Adapter for Round Rods Ø8mm PA

h)

1-181.01 Adapter for Round Rods Ø8mm / Ø10mm Zinc Die

i)

3-011 Grounding Clip Stainless Steel
