[3-132.01]

Rod Latch RS PrB

ICON_TUERANSCHLAG_LR

ICON_RUNDSTANGE

ICON_CUTOUT_PR_B

ICON_DIRAK_GEERDET

Advantages

For cutout B.
For application within the sealed area.
Can be equipped with escutcheon or swinghandel.
RH / LH application through double symmetry.
In this configuration both round rods have the same length.
The 4 weld-studs for the rod guides are positioned exactly in the line with the center of the latch system.
Grounding by grounding clip (optional).

Material

Rod latch: zinc die, untreated / steel, zinc plated

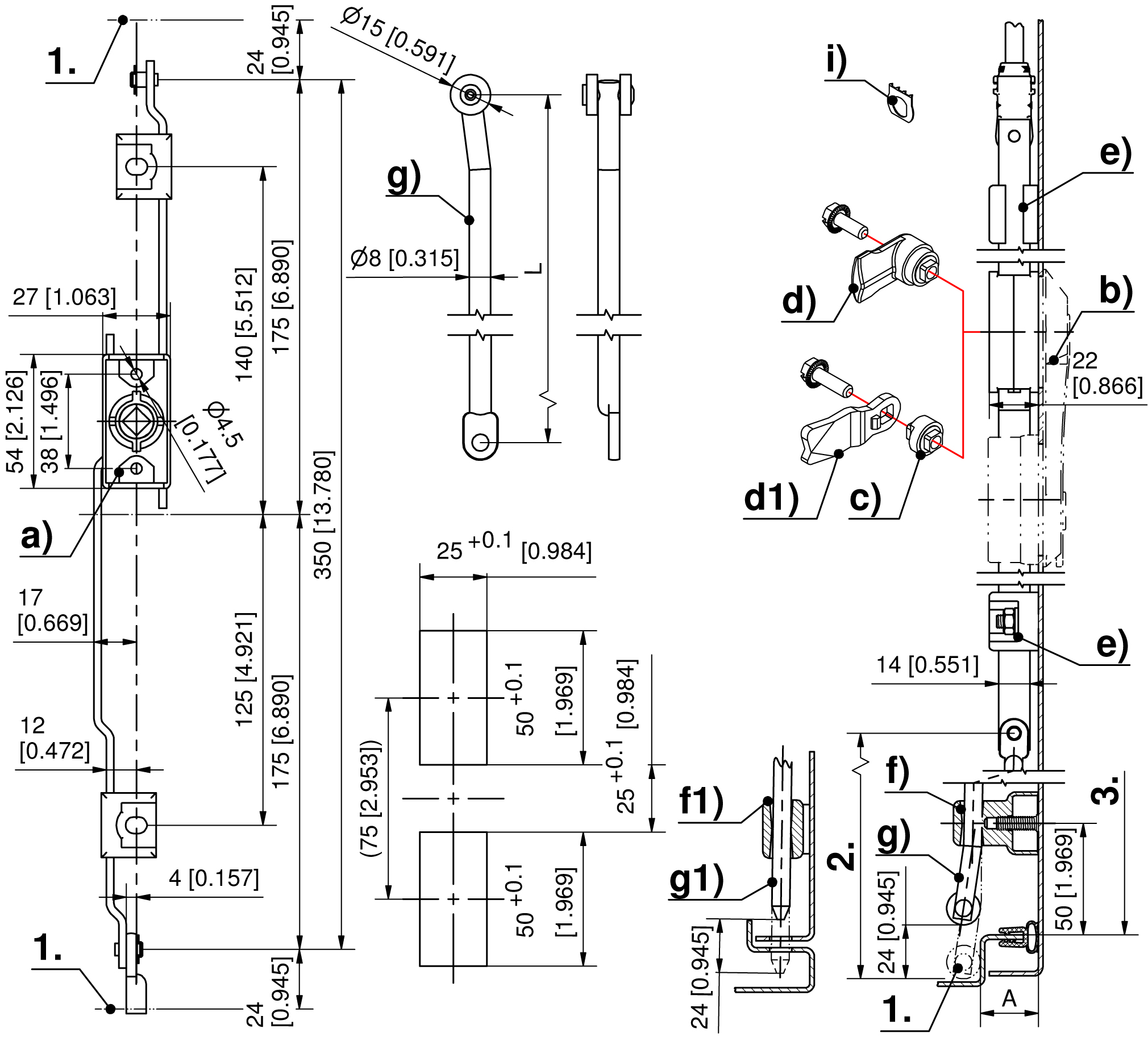

Remarks

1. stroke 24mm

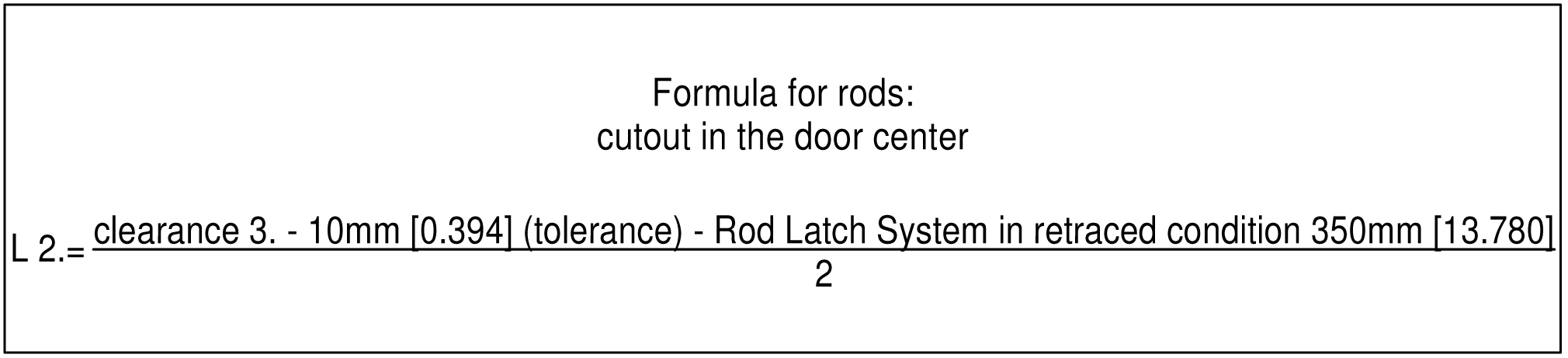

2. length L
3. clearance

Both flat rods of the rod latch have to be used with rod guides (e).

Available versions

Rod latch

Product number

Rod fastening

Installation type

Delivery Unit

208-9016.00-00000

Related Products

Accessories

b)

3-070 Swinghandle FS PrB

b)

3-135 Escutcheon for Rod Latch PrA

b)

3-136 Cutout-Cover PrA / PrB / PrC

c)

3-163 Cam Adapter Zinc Die

d)

208-9401.00-00000 Cam with square, A25, L30 with serrated screw M6x16

d)

208-9402.00-00000 Cam with square, A20, L40 with serrated screw M6x16

d)

208-9404.00-00000 Cam with square, A18, L40 with serrated screw M6x16

d)

208-9408.00-00000 Cam with square, A30, L30 with serrated screw M6x16

d1)

1-102 Cams L35/45 Steel

e)

3-910 Rod Guide FS 23mm

f)

1-190 Rod Guides RS

f)

1-193 Rod Guide RS

f1)

1-192 Rod Guides RS

g)

201-9021.00-Lxxmm Round rod, variable length, with eye parallel to the roller

g1)

201-0111.00-Lxxmm Round rod, variable length

i)

3-011 Grounding Clip Stainless Steel
