Rod Latch FS PrB

ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_FLACHSTANGE
ICON_CUTOUT_PR_B
ICON_DIRAK_GEERDET
3_075
E_3-075_1
E_3-075_2
3_075
E_3-075_1
E_3-075_2

Advantages

  • For cutout B.
  • For application within the sealed area.
  • The latch can be combined with escutcheons or swinghandles.
  • RH / LH application through double symmetry.
  • Grounding by grounding clip (optional).

Material

  • Housing: zinc die, untreated
  • Pinion: sintered metal
  • Rods: steel, zinc plated

Remarks

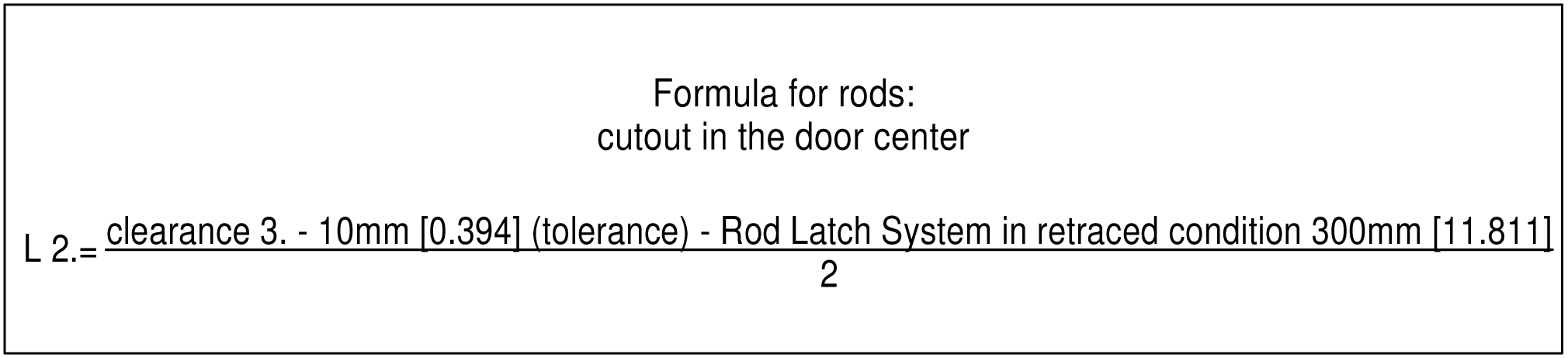

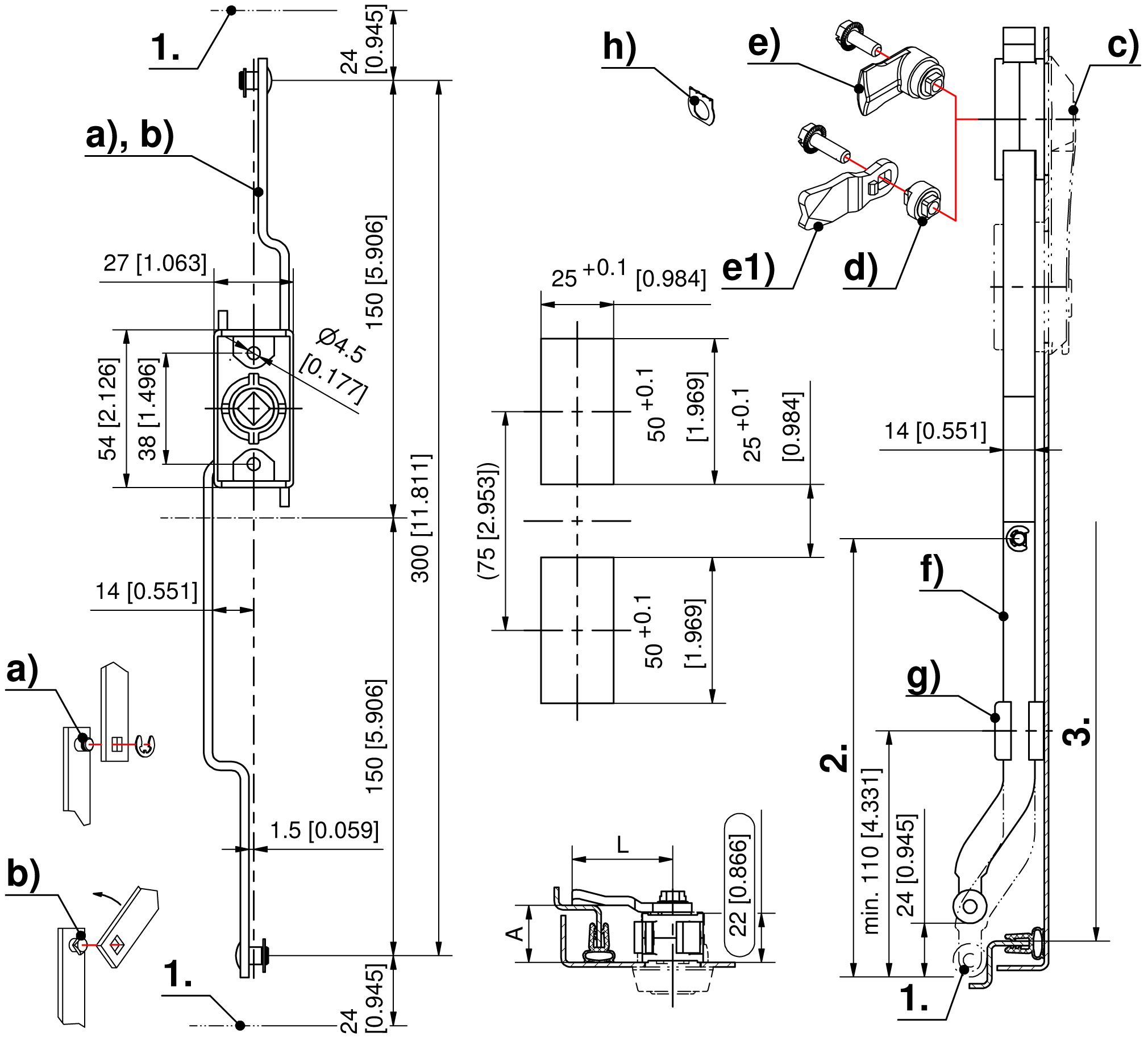

1. stroke 24mm
2. length L
3. clearance
Please select version Product data sheet

Available versions

Rod latch


Product number
Rod fastening
Installation type
Delivery Unit
a)
208-9021.00-00000
C-clip
screw-on
1 pc.
b)
208-9022.00-00000
quick-fit
screw-on
1 pc.

Related Products

Accessories

c)
2_070
3-070 Swinghandle FS PrB
c)
3_101
3-101 Escutcheons
c)
3_135
3-135 Escutcheon for Rod Latch PrA
c)
3_136SL
3-136 Cutout-Cover PrA / PrB / PrC
d)
3_163
3-163 Cam Adapter Zinc Die
e)
3_163_01
208-9401.00-00000 Cam with square, A25, L30 with serrated screw M6x16
3_163_01
208-9402.00-00000 Cam with square, A20, L40 with serrated screw M6x16
e)
3_163
208-9403.00-00000 Cam adapter with serrated screw M6x20
e)
3_163_01
208-9404.00-00000 Cam with square, A18, L40 with serrated screw M6x16
e)
3_163_01
208-9408.00-00000 Cam with square, A30, L30 with serrated screw M6x16
e1)
1_102
1-102 Cams L35/45 Steel
f)
3_160
3-160 Flat Rod FS with Rollers
g)
3_910
3-910 Rod Guide FS 23mm
g)
3_911
3-911 Rod Guide FS 23mm
h)
3_011
3-011 Grounding Clip Stainless Steel
