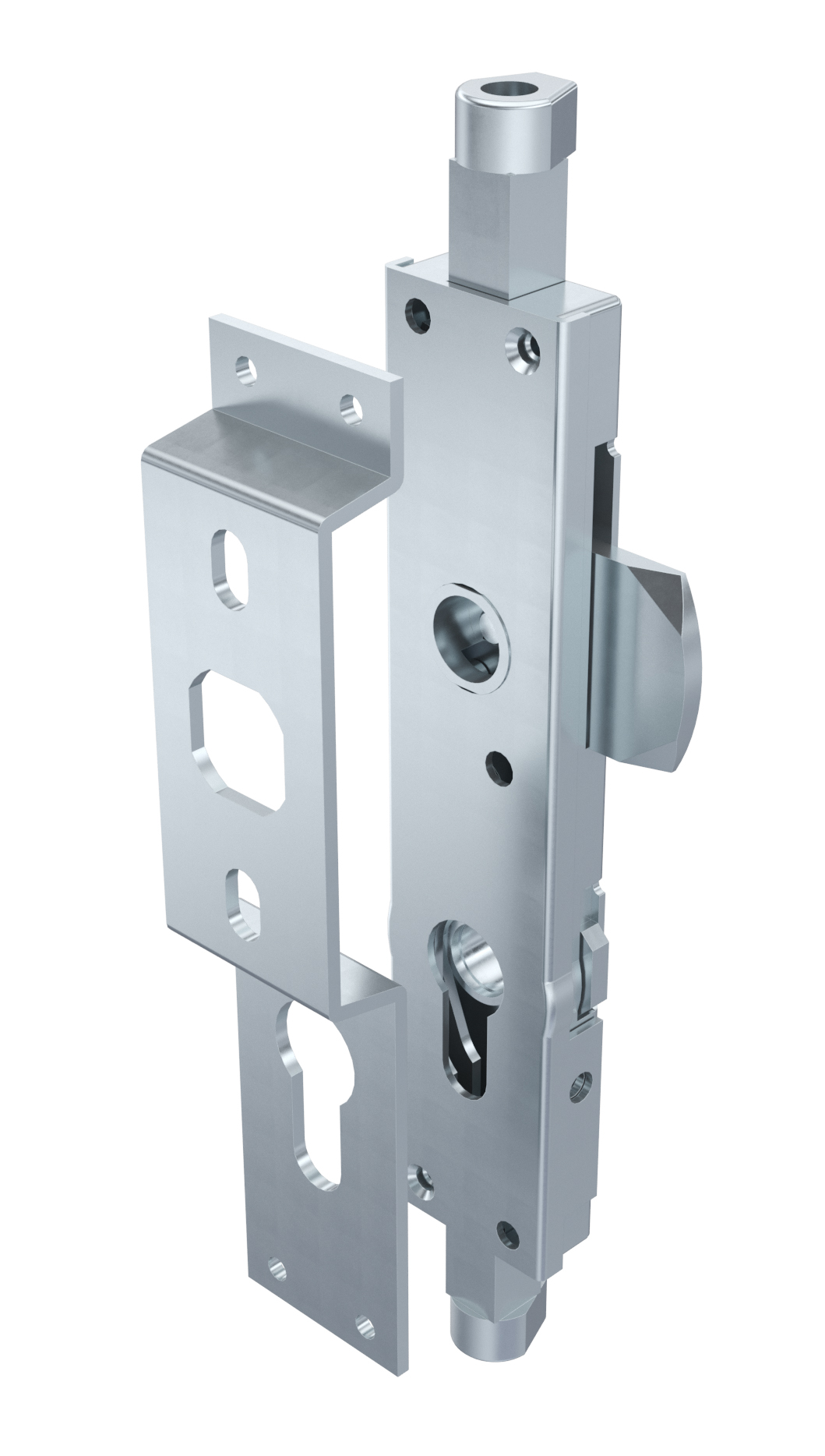

Rod Latch for Profile Cylinder

ICON_CUTOUT_20_1
ICON_ROHS
ICON_PZ_DIN_18252
ICON_RUNDSTANGE
ICON_TUERANSCHLAG_LR
1_405
E_1-405
1_405
E_1-405

Advantages

  • For cutout Pr20.1 and profile cylinder.
  • For round rods Ø 8mm.
  • Heavy duty version.
  • RH and LH version.
  • In combination with lock support for 20 or 26mm bending.
  • Function: by turning the key in the profile cylinder, the insert or handle is released. After release, the rod latch can be opened or closed by the insert or the handle. The key in the profile cylinder can only be removed in the locked state.

Material

  • Rod latch: steel, zinc plated and zinc die
  • Lock support: steel, zinc plated

Remarks

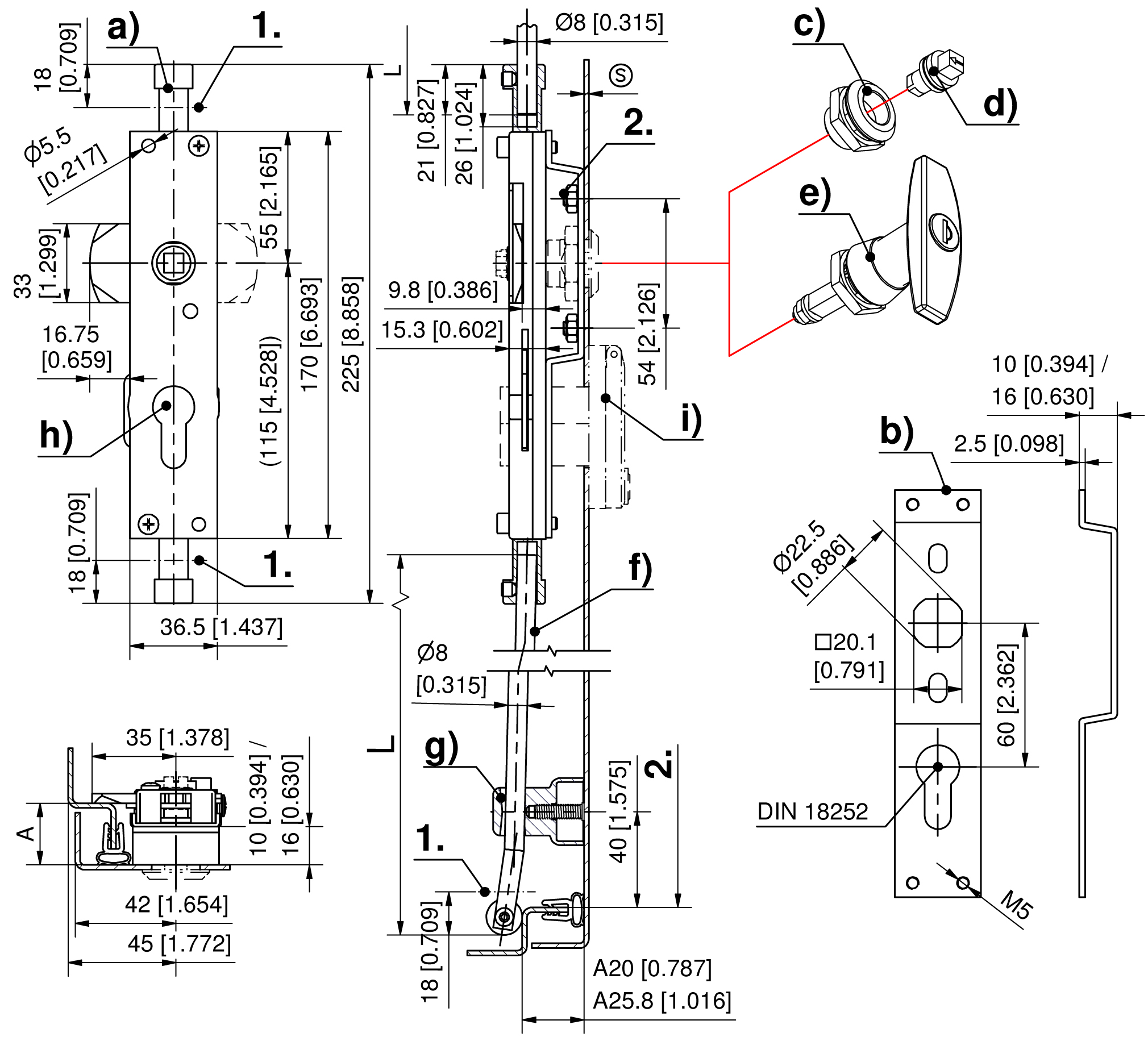

(S) 1.5 - 2.5mm

1. stroke 18mm
2. for painted doors and bolted lock, an M6x8 weld stud with nut is required for the earthing.

Escutcheon with insert PS 1-430.01.
T-handles PS 1-430.

Selected version

Product number 235-9401.00-00000
Delivery Unit: 1 pc.
Installation type: screw- / weld-on
Version: RH version
CAD model
Remove selection Product data sheet
