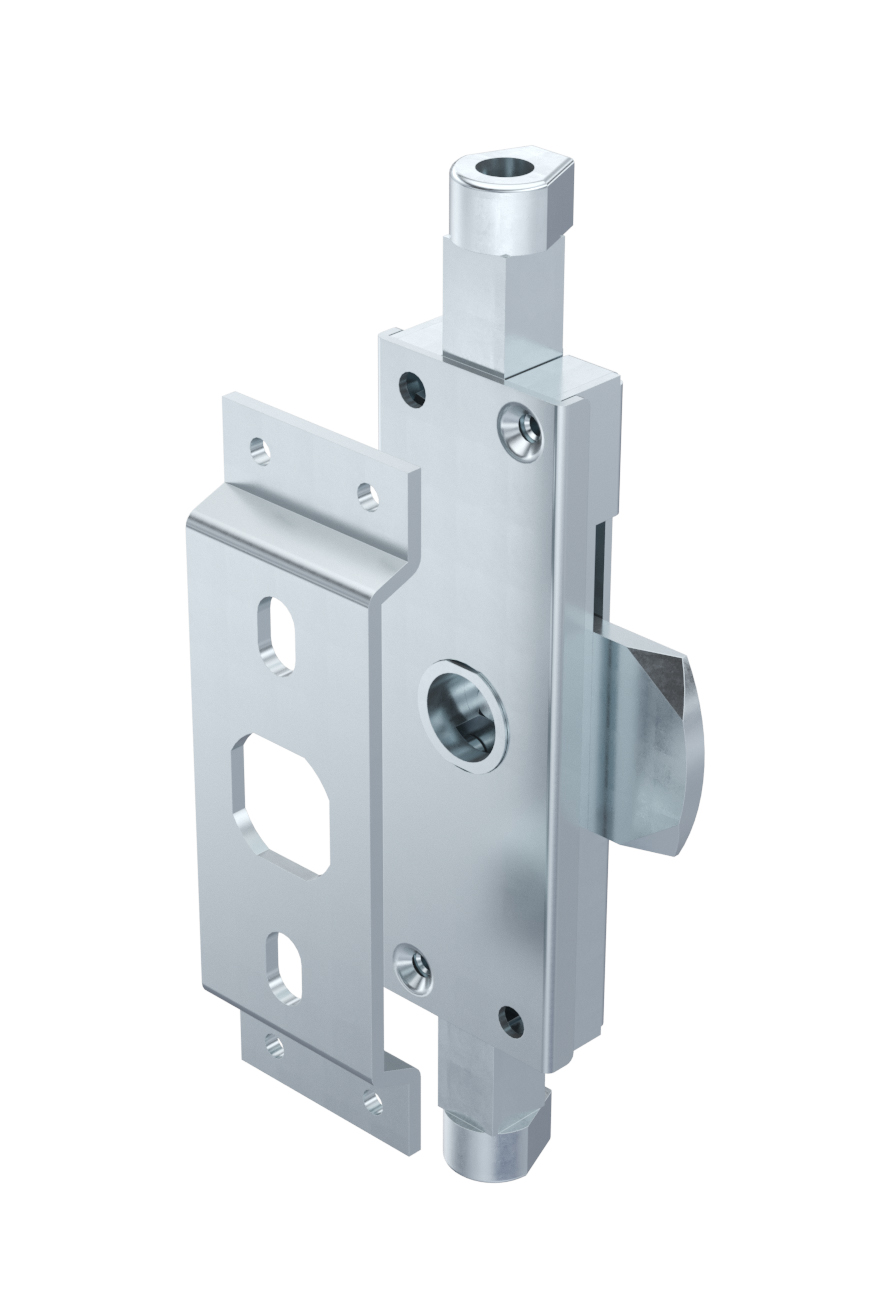

3-Point Rod Latch RS

ICON_CUTOUT_20_1
ICON_ROHS
ICON_RUNDSTANGE
ICON_TUERANSCHLAG_LR
1_400
E_1-400_1
E_1-400_2
E_1-400_900_KAT
1_400
E_1-400_1
E_1-400_2
E_1-400_900_KAT

Advantages

  • For quarter-turn cutout Pr20.1.
  • For round rods Ø 8mm.
  • Heavy duty version.
  • RH / LH version.
  • In combination with lock support for bending 20 or 26mm.

Material

  • Rod latch: steel, zinc plated and zinc die
  • Lock support: steel, zinc plated

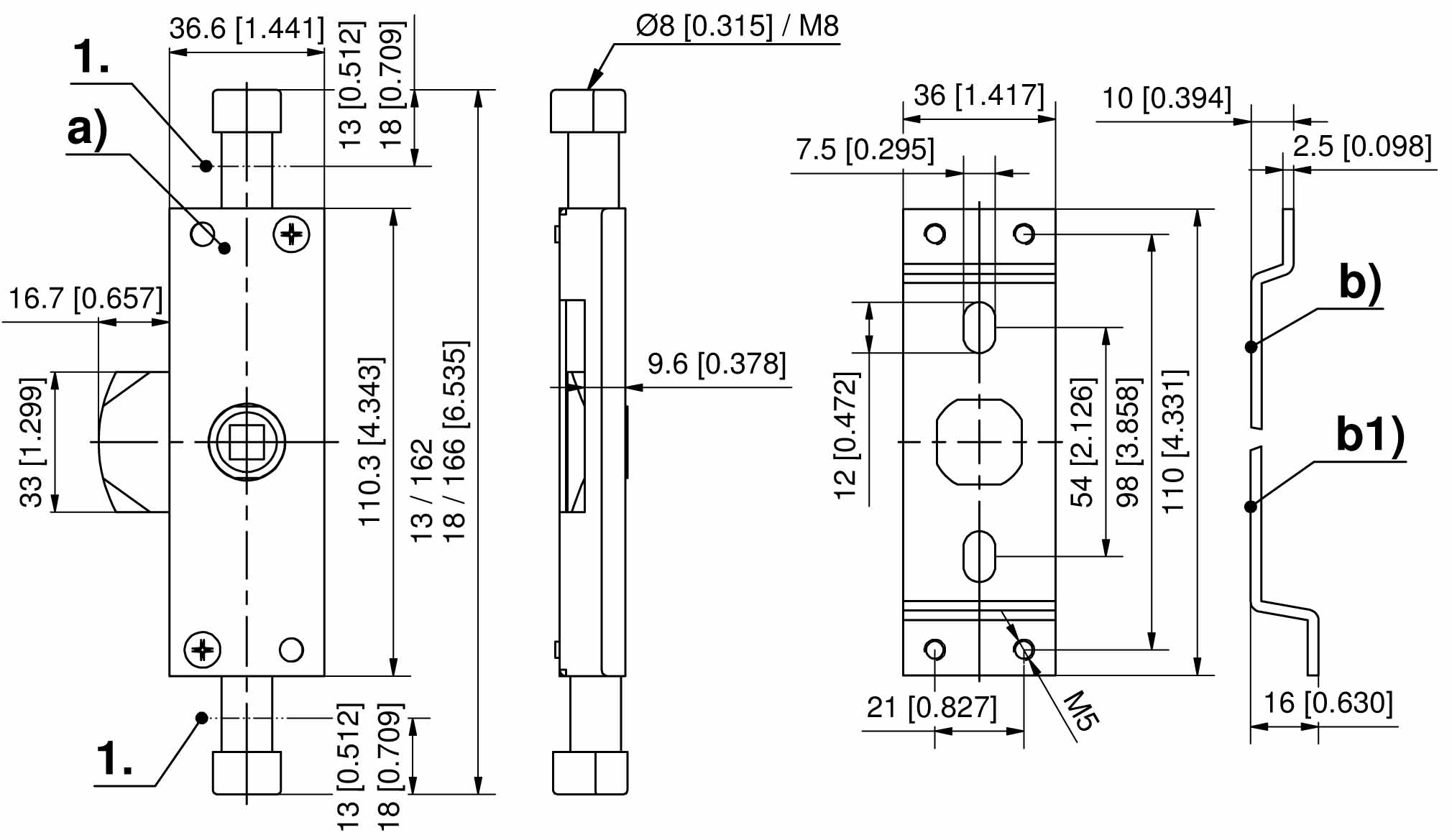

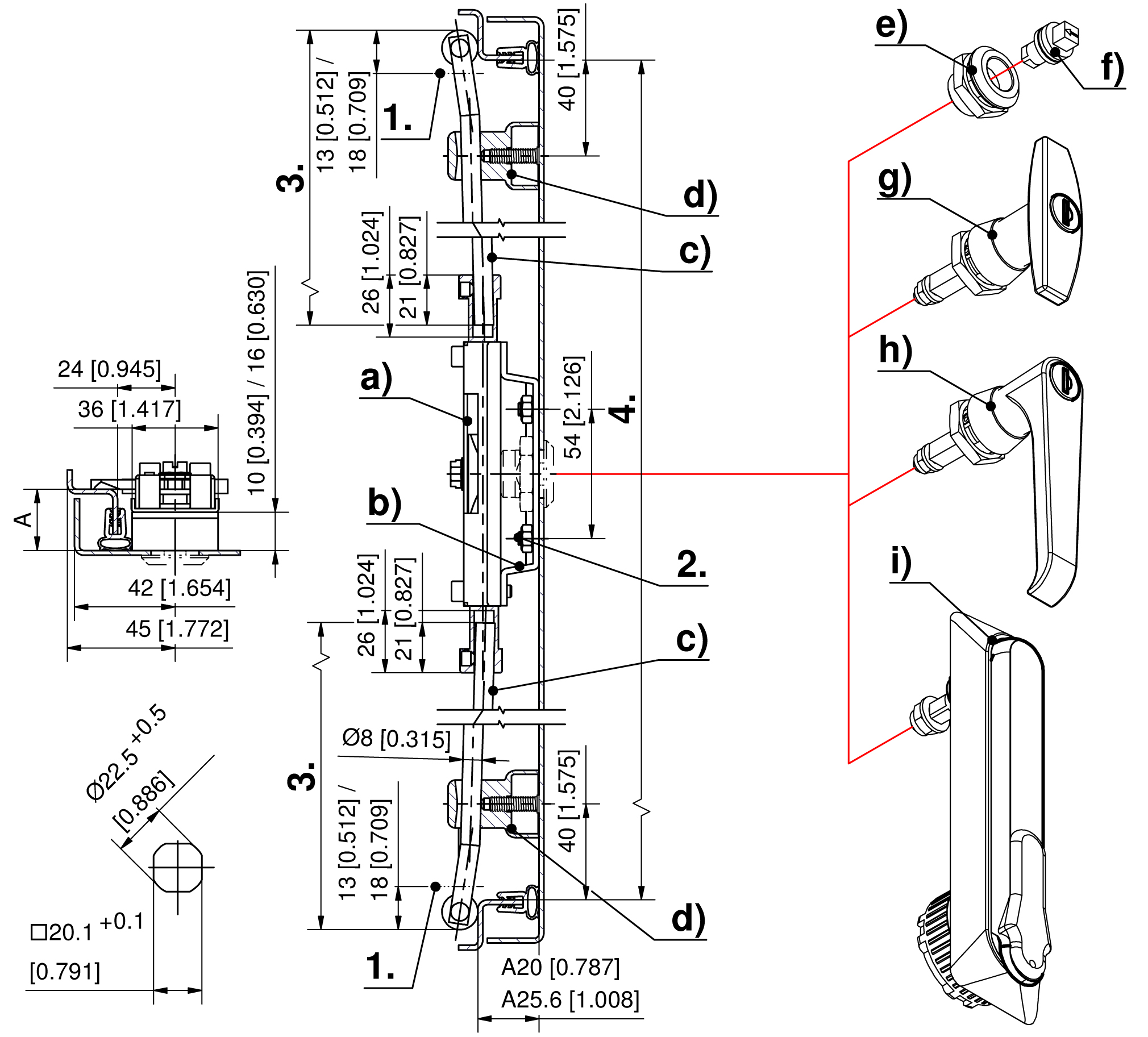

Remarks

1. stroke

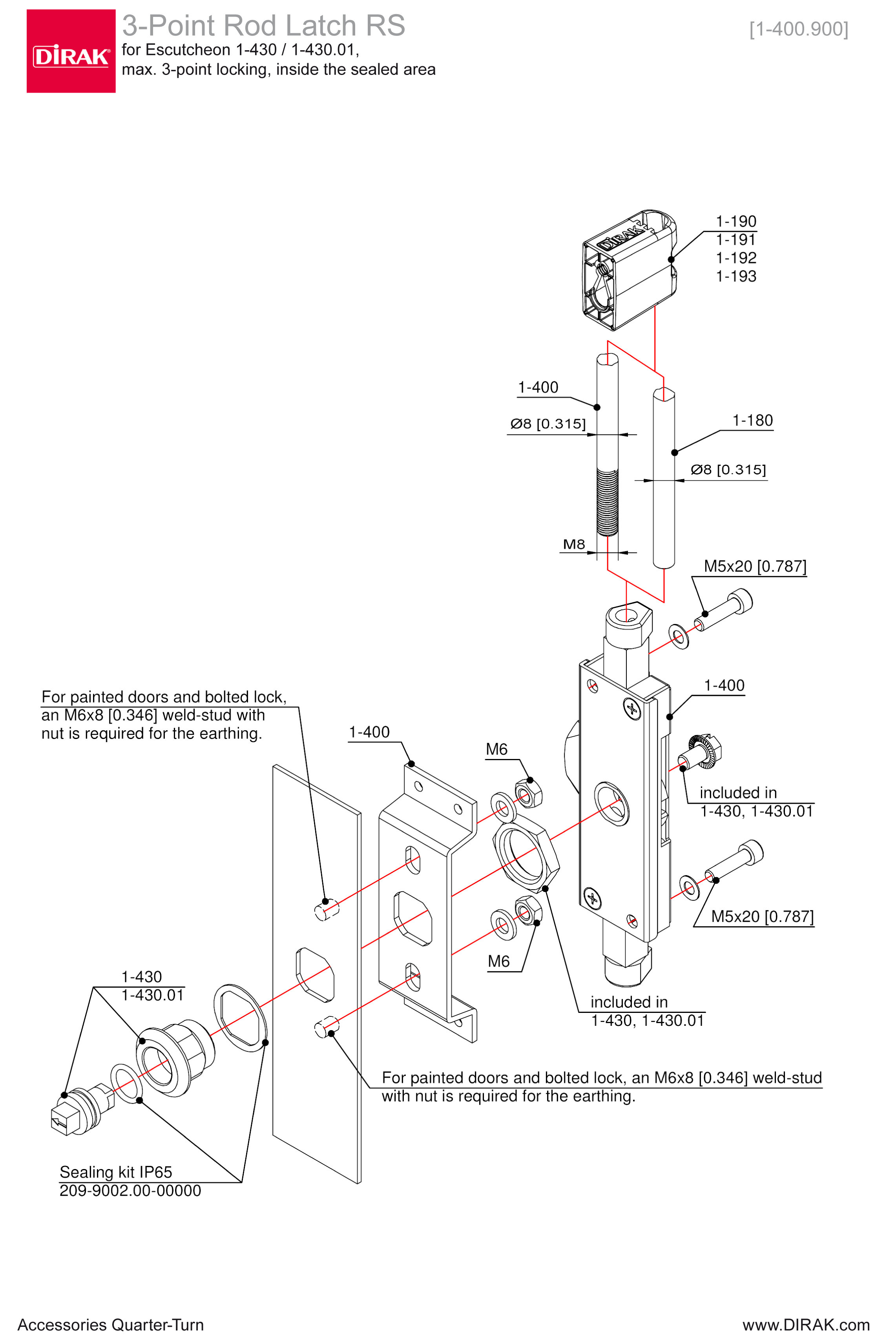

2. for painted doors and bolted lock, an M6x8 weld-stud with nut is required for the earthing.
3. length
4. clearance

Escutcheon with insert PS 1-430.01.
T- and L-handles PS 1-430.
Swinghandles PS 2-300.

Selected version

Product number 235-1001.00-00000
Delivery Unit: 1 pc.
Name: Lock support A20
Remove selection Product data sheet

Related Products

Accessories



Article no.
Name

c)
201-0801.00-01000
Round rod, M8 x 1000mm
Details
Name:
Round rod, M8 x 1000mm
Delivery Unit:
1 pc.
Open product in new tab
c)
1-180
Round Rods for Adapter
Open overview in new tab
c)
201-9001.00-00000
Round rod 400mm
Details
Length:
400 mm
variable length:
Delivery Unit:
1 pc.
Open product in new tab
c)
201-9020.00-00500
Round rod 500mm
Details
Length:
500 mm
variable length:
Delivery Unit:
1 pc.
Open product in new tab
c)
201-9002.00-00000
Round rod 600mm
Details
Length:
600 mm
variable length:
Delivery Unit:
1 pc.
Open product in new tab
c)
201-9020.00-00700
Round rod 700mm
Details
Length:
700 mm
variable length:
Delivery Unit:
1 pc.
Open product in new tab
c)
201-9003.00-00000
Round rod 800mm
Details
Length:
800 mm
variable length:
Delivery Unit:
1 pc.
Open product in new tab
c)
201-9020.00-00900
Round rod 900mm
Details
Length:
900 mm
variable length:
Delivery Unit:
1 pc.
Open product in new tab
c)
201-9004.00-00000
Round rod 1000mm
Details
Length:
1000 mm
variable length:
Delivery Unit:
1 pc.
Open product in new tab
c)
201-9020.00-01100
Round rod 1100mm
Details
Length:
1100 mm
variable length:
Delivery Unit:
1 pc.
Open product in new tab
c)
201-9005.00-00000
Round rod 1200mm
Details
Length:
1200 mm
variable length:
Delivery Unit:
1 pc.
Open product in new tab
c)
201-9020.00-Lxxmm
Round rod, variable length
Details
Length:
variable length:
Yes
Delivery Unit:
on request
Open product in new tab
d)
1-190
Rod Guides RS
Open overview in new tab
d)
200-3623.51-00000
Rod guide, hight 32mm
Details
A:
20 mm
L:
24 mm
Height H:
32 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
d)
200-3624.51-00000
Rod guide, hight 36mm
Details
A:
24 mm
L:
28 mm
Height H:
36 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
d)
200-3625.51-00000
Rod guide, hight 38mm
Details
A:
26 mm
L:
30 mm
Height H:
38 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
d)
200-3626.51-00000
Rod guide, hight 40mm
Details
A:
28 mm
L:
32 mm
Height H:
40 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
d)
1-191
Height-adjustable Rod Guide RS
Open overview in new tab
d)
200-9633.00-00000
Rod guide
Details
Height adjustable:
Yes
Adjustment range:
max. 8 mm
Installation type:
tool-less
Delivery Unit:
10 pcs.
Open product in new tab
d)
1-192
Rod Guides RS
Open overview in new tab
d)
200-9615.00-00000
Rod guide, height adjustable
Details
Height adjustable:
Yes
Adjustment range:
max. + 5 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
d)
200-3606.03-00000
Rod guide
Details
Height adjustable:
Adjustment range:
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
d)
1-193
Rod Guide RS
Open overview in new tab
d)
200-3616.54-00000
Rod guide, hight 35mm
Details
Height H:
35 mm
A = bending:
A24
L:
28 mm
Installation type:
tool-less
Delivery Unit:
1 pc.
Open product in new tab
d)
200-3617.54-00000
Rod guide, hight 37mm
Details
Height H:
37 mm
A = bending:
A26
L:
30 mm
Installation type:
tool-less
Delivery Unit:
1 pc.
Open product in new tab
d)
200-3618.54-00000
Rod guide, hight 39mm
Details
Height H:
39 mm
A = bending:
A28
L:
32 mm
Installation type:
tool-less
Delivery Unit:
1 pc.
Open product in new tab
e)-f)
1-430.01
Escutcheon and Inserts
Open overview in new tab
e)-f)
235-9203.00-00000
Escutcheon A 20, universal
Details
Name:
Escutcheon A 20, universal
Delivery Unit:
1 pc.
Open product in new tab
e)-f)
235-9204.00-00000
Escutcheon A 26, universal
Details
Name:
Escutcheon A 26, universal
Delivery Unit:
1 pc.
Open product in new tab
e)-f)
235-9201.00-00000
Escutcheon A 20 only for double bit
Details
Name:
Escutcheon A 20 only for double bit
Delivery Unit:
1 pc.
Open product in new tab
e)-f)
235-9202.00-00000
Escutcheon A 26, only for double bit
Details
Name:
Escutcheon A 26, only for double bit
Delivery Unit:
1 pc.
Open product in new tab
e)-f)
235-9101.00-00000
Insert Square 6mm
Details
Insert:
Square 6mm
Delivery Unit:
1 pc.
Open product in new tab
e)-f)
235-9102.00-00000
Insert square 7mm
Details
Insert:
Square 7mm
Delivery Unit:
1 pc.
Open product in new tab
e)-f)
235-9103.00-00000
Insert square 8mm
Details
Insert:
Square 8mm
Delivery Unit:
1 pc.
Open product in new tab
e)-f)
235-9104.00-00000
Insert triangular 6.5mm CNOMO
Details
Insert:
Triangular 6.5mm CNOMO
Delivery Unit:
1 pc.
Open product in new tab
e)-f)
235-9105.00-00000
Insert triangular 7mm
Details
Insert:
Triangular 7mm
Delivery Unit:
1 pc.
Open product in new tab
e)-f)
235-9106.00-00000
Insert triangular 8mm
Details
Insert:
Triangular 8mm
Delivery Unit:
1 pc.
Open product in new tab
e)-f)
235-9109.00-00000
Insert Daimler Benz pin
Details
Insert:
Daimler Benz type
Delivery Unit:
1 pc.
Open product in new tab
e)-f)
235-9107.00-00000
Insert double bit 3mm pin
Details
Insert:
Double bit 3mm pin
Delivery Unit:
1 pc.
Open product in new tab
e)-f)
235-9108.00-00000
Insert double bit 5mm pin
Details
Insert:
Double bit 5mm pin
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
1-430
T- and L-Handles for Rod Latches
Open overview in new tab
g)-h)
235-9501.00-00000
T-Handle chrome plated
Details
for rod latch:
A20
Latching type:
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
235-9502.00-00000
T-Handle, chrome plated
Details
for rod latch:
A26
Latching type:
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
235-9505.00-00000
T-Handle, chrome plated, keyed alike DIRAK 1333
Details
for rod latch:
A20
Latching type:
keyed alike DIRAK 1333
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
235-9506.00-00000
T-Handle, chrome plated, keyed alike DIRAK 1333
Details
for rod latch:
A26
Latching type:
keyed alike DIRAK 1333
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
535-9505.00-00000
T-Handle, chrome plated, keyed alike DS200
Details
for rod latch:
A20
Latching type:
keyed alike DS200
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
535-9506.00-00000
T-Handle, chrome plated, keyed alike DS200
Details
for rod latch:
A26
Latching type:
keyed alike DS200
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
235-9510.00-00000
T-Handle, chrome plated, keyed different
Details
for rod latch:
A20
Latching type:
keyed different
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
235-9511.00-00000
T-Handle, chrome plated, keyed different
Details
for rod latch:
A26
Latching type:
keyed different
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
501-9505.00-00000
T-Handle, chrome plated, PAGODA keyed alike 1991
Details
for rod latch:
A20
Latching type:
PAGODA keyed alike 1991
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
501-9506.00-00000
T-Handle, chrome plated, PAGODA keyed alike 1991
Details
for rod latch:
A26
Latching type:
PAGODA keyed alike 1991
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
501-9510.00-00000
T-Handle, chrome plated, PAGODA keyed different
Details
for rod latch:
A20
Latching type:
PAGODA keyed different
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
501-9511.00-00000
T-Handle, chrome plated, PAGODA keyed different
Details
for rod latch:
A26
Latching type:
PAGODA keyed different
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
235-9503.00-00000
T-Handle, black
Details
for rod latch:
A20
Latching type:
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
235-9504.00-00000
T-Handle, black
Details
for rod latch:
A26
Latching type:
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
235-9507.00-00000
T-Handle, black, keyed alike DIRAK 1333
Details
for rod latch:
A20
Latching type:
keyed alike DIRAK 1333
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
235-9508.00-00000
T-Handle, black, keyed alike DIRAK 1333
Details
for rod latch:
A26
Latching type:
keyed alike DIRAK 1333
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
235-9512.00-00000
T-Handle, black, keyed different
Details
for rod latch:
A20
Latching type:
keyed different
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
235-9513.00-00000
T-Handle, black, keyed different
Details
for rod latch:
A26
Latching type:
keyed different
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
501-9507.00-00000
T-Handle, black, PAGODA keyed alike 1991
Details
for rod latch:
A20
Latching type:
PAGODA keyed alike 1991
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
501-9508.00-00000
T-Handle, black, PAGODA keyed alike 1991
Details
for rod latch:
A26
Latching type:
PAGODA keyed alike 1991
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
501-9512.00-00000
T-Handle, black, PAGODA keyed different
Details
for rod latch:
A20
Latching type:
PAGODA keyed different
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
501-9513.00-00000
T-Handle, black, PAGODA keyed different
Details
for rod latch:
A26
Latching type:
PAGODA keyed different
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
235-9601.00-00000
L-Handle, chrome plated
Details
for rod latch:
A20
Latching type:
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
235-9602.00-00000
L-Handle, chrome plated
Details
for rod latch:
A26
Latching type:
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
235-9605.00-00000
L-Handle, chrome plated, keyed alike DIRAK 1333
Details
for rod latch:
A20
Latching type:
keyed alike DIRAK 1333
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
235-9606.00-00000
L-Handle, chrome plated, keyed alike DIRAK 1333
Details
for rod latch:
A26
Latching type:
keyed alike DIRAK 1333
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
535-9605.00-00000
L-Handle, chrome plated, keyed alike DS200
Details
for rod latch:
A20
Latching type:
keyed alike DS200
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
535-9606.00-00000
L-Handle, chrome plated, keyed alike DS200
Details
for rod latch:
A26
Latching type:
keyed alike DS200
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
235-9610.00-00000
L-Handle, chrome plated, keyed different
Details
for rod latch:
A20
Latching type:
keyed different
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
235-9611.00-00000
L-Handle, chrome plated, keyed different
Details
for rod latch:
A26
Latching type:
keyed different
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
501-9605.00-00000
L-Handle, chrome plated, PAGODA keyed alike 1991
Details
for rod latch:
A20
Latching type:
PAGODA keyed alike 1991
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
501-9606.00-00000
L-Handle, chrome plated, PAGODA keyed alike 1991
Details
for rod latch:
A26
Latching type:
PAGODA keyed alike 1991
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
235-9603.00-00000
L-Handle, black
Details
for rod latch:
A20
Latching type:
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
235-9604.00-00000
L-Handle, black
Details
for rod latch:
A26
Latching type:
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
235-9607.00-00000
L-Handle, black, keyed alike DIRAK 1333
Details
for rod latch:
A20
Latching type:
keyed alike DIRAK 1333
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
235-9608.00-00000
L-Handle, black, keyed alike DIRAK 1333
Details
for rod latch:
A26
Latching type:
keyed alike DIRAK 1333
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
535-9607.00-00000
L-Handle, black, keyed alike DS200
Details
for rod latch:
A20
Latching type:
keyed alike DS200
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
535-9608.00-00000
L-Handle, black, keyed alike DS200
Details
for rod latch:
A26
Latching type:
keyed alike DS200
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
235-9612.00-00000
L-Handle, black, keyed different
Details
for rod latch:
A20
Latching type:
keyed different
Delivery Unit:
1 pc.
Open product in new tab
g)-h)
235-9613.00-00000
L-Handle, black, keyed different
Details
for rod latch:
A26
Latching type:
keyed different
Delivery Unit:
1 pc.
Open product in new tab
i)
2-300
Swinghandle RS 130 for Rod Latch
Open overview in new tab
i)
207-9035.00-00000
Swinghandle RS 130
Details
Latching type:
PHZ 40mm
Cylinder cover material:
-
Reinforced dustcover:
-
Securable :
-
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
i)
207-9036.00-00000
Swinghandle RS 130
Details
Latching type:
PHZ 40mm
Cylinder cover material:
PA
Reinforced dustcover:
-
Securable :
Yes
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
i)
207-9037.00-00000
Swinghandle RS 130
Details
Latching type:
PHZ 40mm
Cylinder cover material:
PA
Reinforced dustcover:
Yes
Securable :
Yes
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
i)
207-9061.00-00000
Swinghandle RS 130
Details
Latching type:
PHZ 40mm
Cylinder cover material:
zinc die
Reinforced dustcover:
-
Securable :
Yes
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
i)
207-9041.00-00000
Swinghandle RS 130
Details
Latching type:
PHZ 45mm
Cylinder cover material:
-
Reinforced dustcover:
-
Securable :
-
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
i)
207-9042.00-00000
Swinghandle RS 130
Details
Latching type:
PHZ 45mm
Cylinder cover material:
PA
Reinforced dustcover:
-
Securable :
Yes
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
i)
207-9043.00-00000
Swinghandle RS 130
Details
Latching type:
PHZ 45mm
Cylinder cover material:
PA
Reinforced dustcover:
Yes
Securable :
Yes
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
i)
207-9063.00-00000
Swinghandle RS 130
Details
Latching type:
PHZ 45mm
Cylinder cover material:
zinc die
Reinforced dustcover:
-
Securable :
Yes
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
i)
207-9038.00-00000
Swinghandle RS 130
Details
Latching type:
PHZ 40mm
Cylinder cover material:
-
Reinforced dustcover:
-
Securable :
-
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
i)
207-9039.00-00000
Swinghandle RS 130
Details
Latching type:
PHZ 40mm
Cylinder cover material:
PA
Reinforced dustcover:
-
Securable :
Yes
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
i)
207-9040.00-00000
Swinghandle RS 130
Details
Latching type:
PHZ 40mm
Cylinder cover material:
PA
Reinforced dustcover:
Yes
Securable :
Yes
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
i)
207-9062.00-00000
Swinghandle RS 130
Details
Latching type:
PHZ 40mm
Cylinder cover material:
zinc die
Reinforced dustcover:
-
Securable :
Yes
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
i)
207-9044.00-00000
Swinghandle RS 130
Details
Latching type:
PHZ 45mm
Cylinder cover material:
-
Reinforced dustcover:
-
Securable :
-
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
i)
207-9045.00-00000
Swinghandle RS 130
Details
Latching type:
PHZ 45mm
Cylinder cover material:
PA
Reinforced dustcover:
-
Securable :
Yes
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
i)
207-9046.00-00000
Swinghandle RS 130
Details
Latching type:
PHZ 45mm
Cylinder cover material:
PA
Reinforced dustcover:
Yes
Securable :
Yes
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
i)
207-9064.00-00000
Swinghandle RS 130
Details
Latching type:
PHZ 45mm
Cylinder cover material:
zinc die
Reinforced dustcover:
-
Securable :
Yes
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
i)
207-9323.00-00000
Swinghandle RS 130
Details
Latching type:
PHZ 40mm
Cylinder cover material:
-
Reinforced dustcover:
-
Securable :
-
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
i)
207-9327.00-00000
Swinghandle RS 130
Details
Latching type:
PHZ 40mm
Cylinder cover material:
PA
Reinforced dustcover:
-
Securable :
Yes
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
i)
207-9331.00-00000
Swinghandle RS 130
Details
Latching type:
PHZ 40mm
Cylinder cover material:
PA
Reinforced dustcover:
Yes
Securable :
Yes
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
i)
207-9335.00-00000
Swinghandle RS 130
Details
Latching type:
PHZ 40mm
Cylinder cover material:
zinc die
Reinforced dustcover:
-
Securable :
Yes
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
i)
207-9325.00-00000
Swinghandle RS 130
Details
Latching type:
PHZ 45mm
Cylinder cover material:
-
Reinforced dustcover:
-
Securable :
-
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
i)
207-9329.00-00000
Swinghandle RS 130
Details
Latching type:
PHZ 45mm
Cylinder cover material:
PA
Reinforced dustcover:
-
Securable :
Yes
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
i)
207-9333.00-00000
Swinghandle RS 130
Details
Latching type:
PHZ 45mm
Cylinder cover material:
PA
Reinforced dustcover:
Yes
Securable :
Yes
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
i)
207-9337.00-00000
Swinghandle RS 130
Details
Latching type:
PHZ 45mm
Cylinder cover material:
zinc die
Reinforced dustcover:
-
Securable :
Yes
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
i)
207-9324.00-00000
Swinghandle RS 130
Details
Latching type:
PHZ 40mm
Cylinder cover material:
-
Reinforced dustcover:
-
Securable :
-
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
i)
207-9328.00-00000
Swinghandle RS 130
Details
Latching type:
PHZ 40mm
Cylinder cover material:
PA
Reinforced dustcover:
-
Securable :
Yes
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
i)
207-9332.00-00000
Swinghandle RS 130
Details
Latching type:
PHZ 40mm
Cylinder cover material:
PA
Reinforced dustcover:
Yes
Securable :
Yes
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
i)
207-9336.00-00000
Swinghandle RS 130
Details
Latching type:
PHZ 40mm
Cylinder cover material:
zinc die
Reinforced dustcover:
-
Securable :
Yes
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
i)
207-9326.00-00000
Swinghandle RS 130
Details
Latching type:
PHZ 45mm
Cylinder cover material:
-
Reinforced dustcover:
-
Securable :
-
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
i)
207-9330.00-00000
Swinghandle RS 130
Details
Latching type:
PHZ 45mm
Cylinder cover material:
PA
Reinforced dustcover:
-
Securable :
Yes
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
i)
207-9334.00-00000
Swinghandle RS 130
Details
Latching type:
PHZ 45mm
Cylinder cover material:
PA
Reinforced dustcover:
Yes
Securable :
Yes
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
i)
207-9338.00-00000
Swinghandle RS 130
Details
Latching type:
PHZ 45mm
Cylinder cover material:
zinc die
Reinforced dustcover:
-
Securable :
Yes
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
203-0605.03-00000
Bushing Ø8
Details
Type:
Bushing
D:
-
for flat rod:
-
for round rod:
Ø8
L:
-
L1:
-
Length:
Material:
PA
Surface:
black
self-locking:
Delivery Unit:
10 pcs.
Open product in new tab

Product Configuration

Selected version

Product number 235-1001.00-00000
Delivery Unit: 1 pc.
Name: Lock support A20

Selected additional products

[none]
Contact linkedin YouTube
This website uses cookies to ensure the best experience possible. More information...
