[1-451]

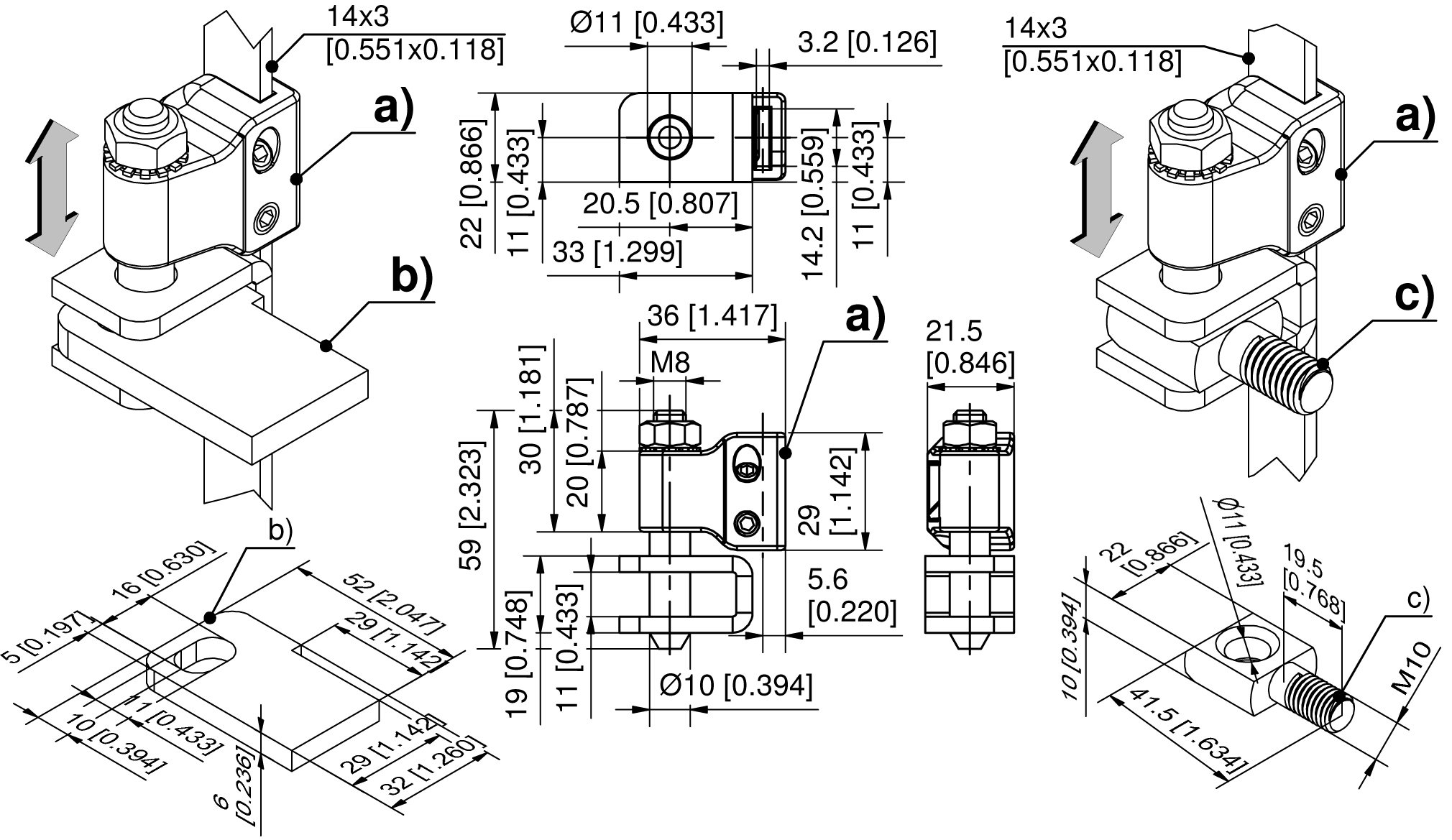

Pressure-Tight Fitting for 24mm Stroke FS

ICON_ROHS
ICON_FLACHSTANGE
1_451
E_1-451_1
E_1-451_2
1_451
E_1-451_1
E_1-451_2

Advantages

  • Fitting for pressure-tight doors.
  • Positive-locking between fitting and flat rod 14x3mm.
  • For high and medium voltage distribution boards.
  • Suitable with standard rod latches.

Material

  • Connector: zinc die, untreated
  • Set screws, locking pin, serrated lock washer and hexagon nut: steel, zinc plated
  • U-bracket: steel, untreated

Remarks

U-bracket weld-on included with delivery

Selected version

Product number 215-0406.00-00000
Delivery Unit: 1 pc.
Installation type: screw-on
Thread size: M10
CAD model
Remove selection Product data sheet

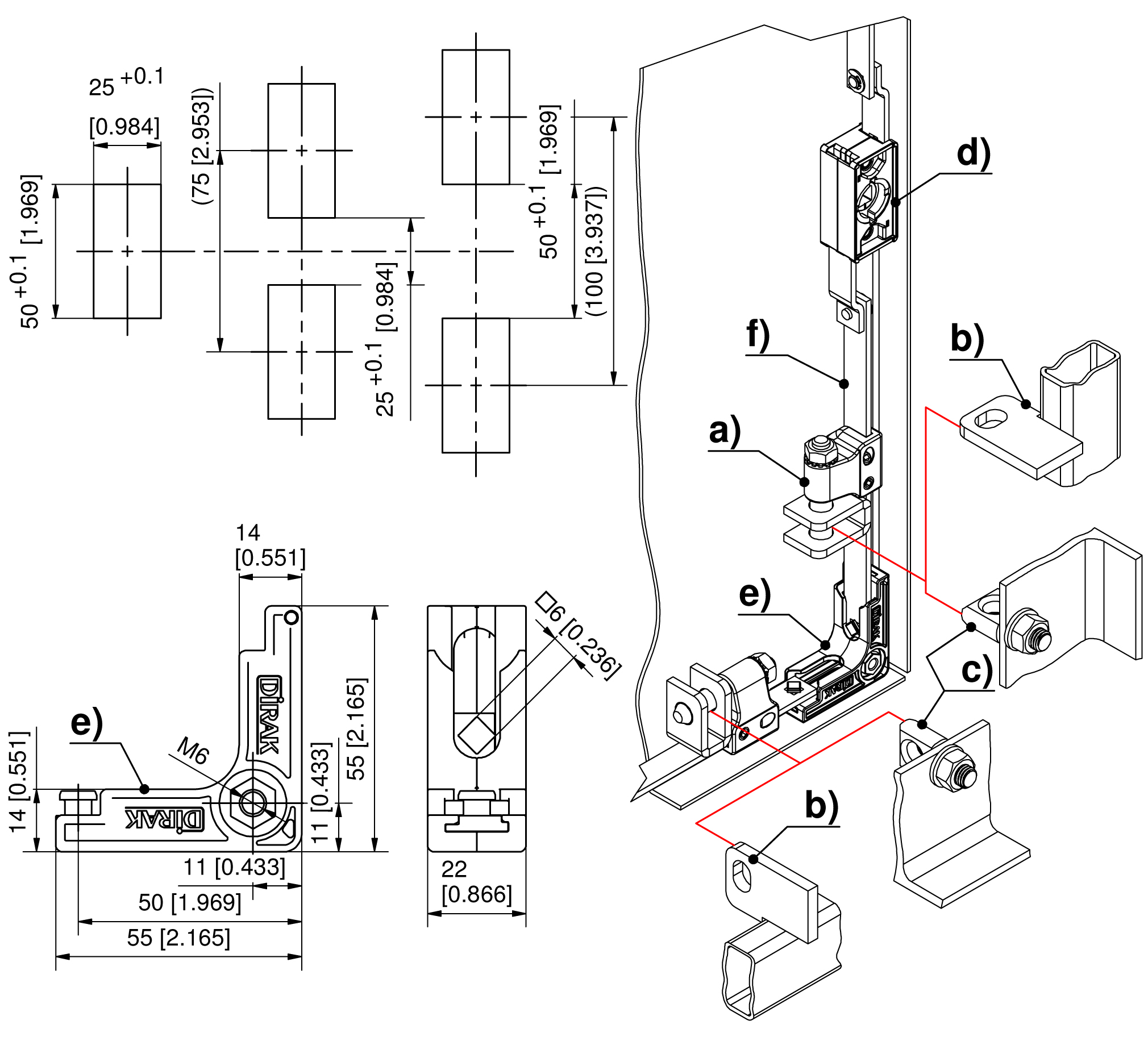

Related Products

Accessories



Article no.
Name

d)
3-100
Rod Latch RS/FS PrA
Open overview in new tab
d)
208-9001.00-00000
Rod latch 135°, zinc die
Details
Pivoting range:
135°
Version:
for inserts
Stroke:
24 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
d)
208-9008.00-00000
Rod latch 180°, zinc die
Details
Pivoting range:
180°
Version:
for inserts
Stroke:
31,4 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
d)
208-9013.00-00000
Rod latch 135°, zinc die
Details
Pivoting range:
135°
Version:
for inserts, without rod
Stroke:
-
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
d)
208-9014.00-00000
Rod latch 135°, zinc die
Details
Pivoting range:
135°
Version:
for inserts, with one rod
Stroke:
24 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
d)
208-9051.00-00000
Rod latch 135°, PA
Details
Pivoting range:
135°
Version:
for inserts
Stroke:
24 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
d)
208-9058.00-00000
Rod latch 180°, PA
Details
Pivoting range:
180°
Version:
for inserts
Stroke:
31,4 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
d)
208-9063.00-00000
Rod latch
Details
Pivoting range:
135°
Version:
for inserts, without rod
Stroke:
-
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
d)
208-9064.00-00000
Rod latch 135°, PA
Details
Pivoting range:
135°
Version:
for inserts, with one rod
Stroke:
24 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
d)
3-130
Rod Latch FS PrC
Open overview in new tab
d)
208-9002.00-00000
Rod latch zinc die, c-clip
Details
Material:
zinc die
Rod fastening:
C-clip
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
d)
208-9052.00-00000
Rod latch PA, c-clip
Details
Material:
PA
Rod fastening:
C-clip
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
d)
208-9003.00-00000
Rod latch zinc die, quick-fit
Details
Material:
zinc die
Rod fastening:
quick-fit
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
d)
208-9053.00-00000
Rod latch PA, quick-fit
Details
Material:
PA
Rod fastening:
quick-fit
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
e)
3-166
90° Redirect FS
Open overview in new tab
e)
208-9932.00-00000
90° Redirect FS
Details
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
f)
3-161
Flat Rod FS
Open overview in new tab
f)
208-0934.00-Lxxmm
Flat rod, special length
Details
Square hole:
2x 6.2mm
L1:
Delivery Unit:
on request
Open product in new tab
f)
208-0905.15-Lxxmm
Flat rod, special length
Details
Square hole:
1x 6.2mm
L1:
Delivery Unit:
on request
Open product in new tab
f)
208-0905.15-00800
Flat Rod FS
Details
Square hole:
1x 6.2mm
L1:
800 mm
Delivery Unit:
1 pc.
Open product in new tab
f)
208-0905.15-01000
Flat Rod FS
Details
Square hole:
1x 6.2mm
L1:
1000 mm
Delivery Unit:
1 pc.
Open product in new tab
f)
208-0905.15-01200
Flat Rod FS
Details
Square hole:
1x 6.2mm
L1:
1200 mm
Delivery Unit:
1 pc.
Open product in new tab
3-910
Rod Guide FS 23mm
Open overview in new tab
208-1501.03-00000
Rod guide PA , 1-part, M6
Details
Name:
Rod guide PA , 1-part, M6
Fastening type:
M6
Material:
PA
Delivery Unit:
1 pc.
Open product in new tab
208-1509.03-00000
Rod guide PA , 1-part, M5
Details
Name:
Rod guide PA , 1-part, M5
Fastening type:
M5
Material:
PA
Delivery Unit:
1 pc.
Open product in new tab
208-1517.03-00000
Rod guide PA , 1-part, M6
Details
Name:
Rod guide PA , 1-part, M6
Fastening type:
M6
Material:
PA
Delivery Unit:
1 pc.
Open product in new tab
208-9790.00-00000
Rod guide stainless steel, 2-parts, M6
Details
Name:
Rod guide stainless steel, 2-parts, M6
Fastening type:
M6
Material:
stainless steel
Delivery Unit:
1 pc.
Open product in new tab
208-9791.00-00000
Rod guide zinc die, 2-parts, M6
Details
Name:
Rod guide zinc die, 2-parts, M6
Fastening type:
M6
Material:
zinc die
Delivery Unit:
1 pc.
Open product in new tab
3-911
Rod Guide FS 23mm
Open overview in new tab
208-1523.54-00000
Rod guide
Details
Version:
for flat rod
Installation type:
tool-less
Delivery Unit:
1 pc.
Open product in new tab

Product Configuration

Selected version

Product number 215-0406.00-00000
Delivery Unit: 1 pc.
Installation type: screw-on
Thread size: M10
