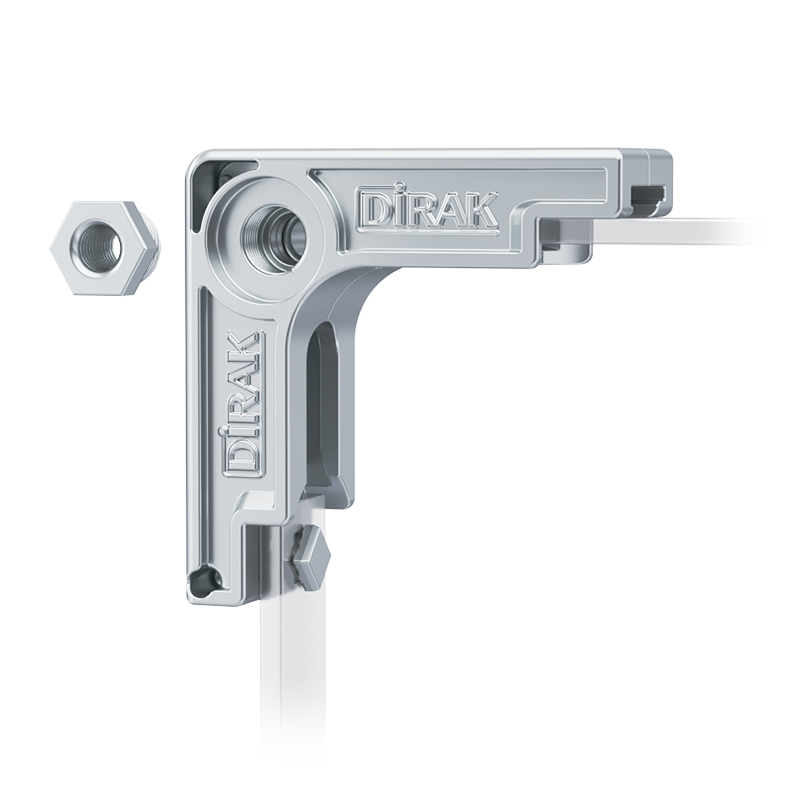

90° Redirect FS

ICON_ROHS
ICON_FLACHSTANGE
3_166
E_3-166
3_166
E_3-166

Advantages

  • For muli-point locking system by corner.
  • Suitable for flat rods 14x3mm.
  • Quick assembly of the rods.
  • RH / LH application.

Material

  • Redirect: zinc die, zinc plated
  • Sleeve nut: steel, zinc plated
  • Spring plate: AISI 304

Remarks

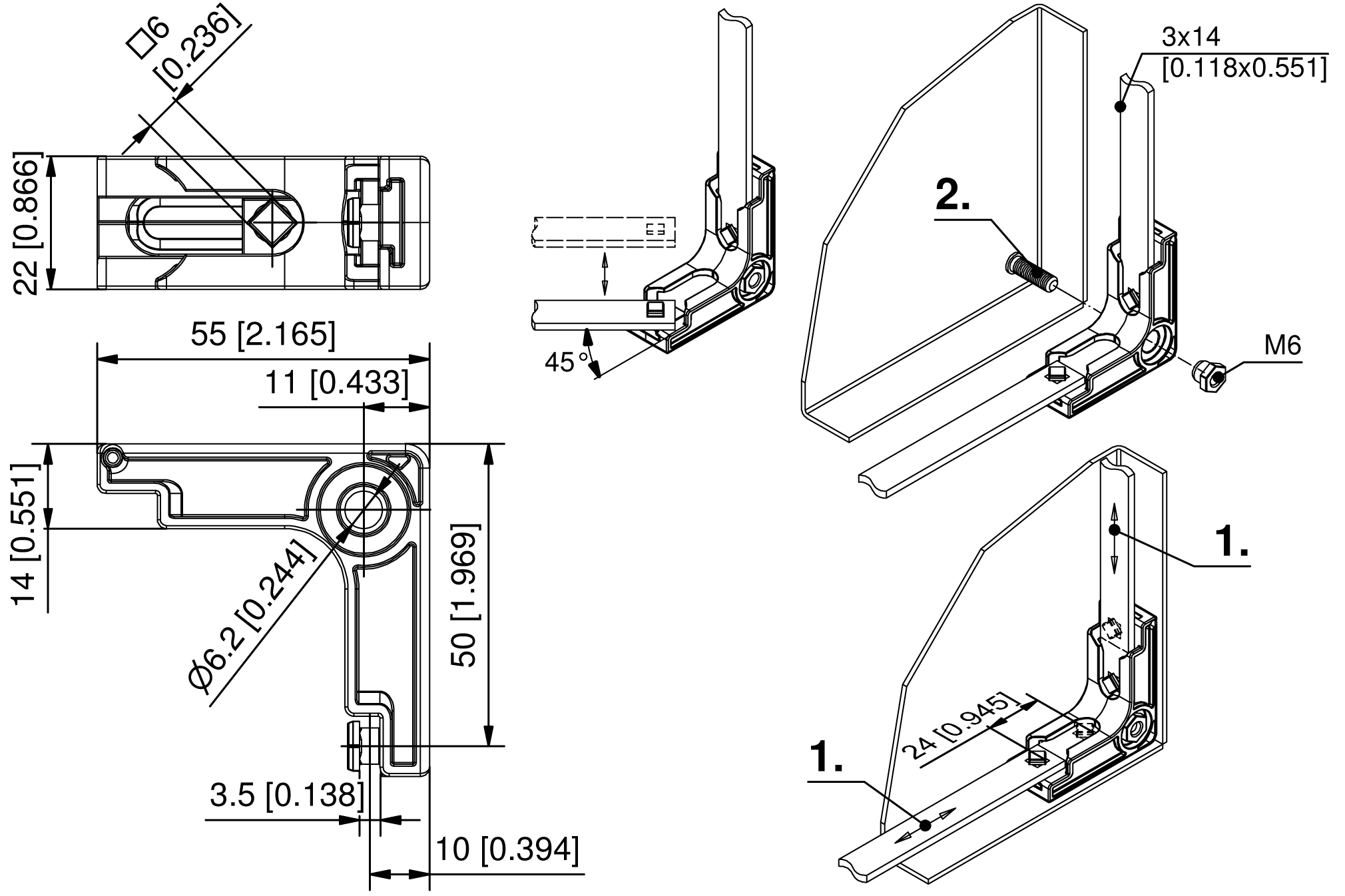

1. stroke 24mm
2. fastening to locking pin M6. Sleeve nut included with delivery.

Selected version

Product number 208-9932.00-00000
Delivery Unit: 1 pc.
Installation type: screw-on
CAD model
Remove selection Product data sheet
