Flat Rod FS with Rollers

ICON_ROHS
ICON_FLACHSTANGE
3_160
E_3-160
3_160
E_3-160

Advantages

  • Flat Rods for bending A20 and A25.

Material

  • Flat rod: steel, zinc plated
  • Roller: PA, black

Remarks

DIRAK recommends 2 rod guides for rods with length greater than 200mm.

Version with ramp shoe see product system 3-161.

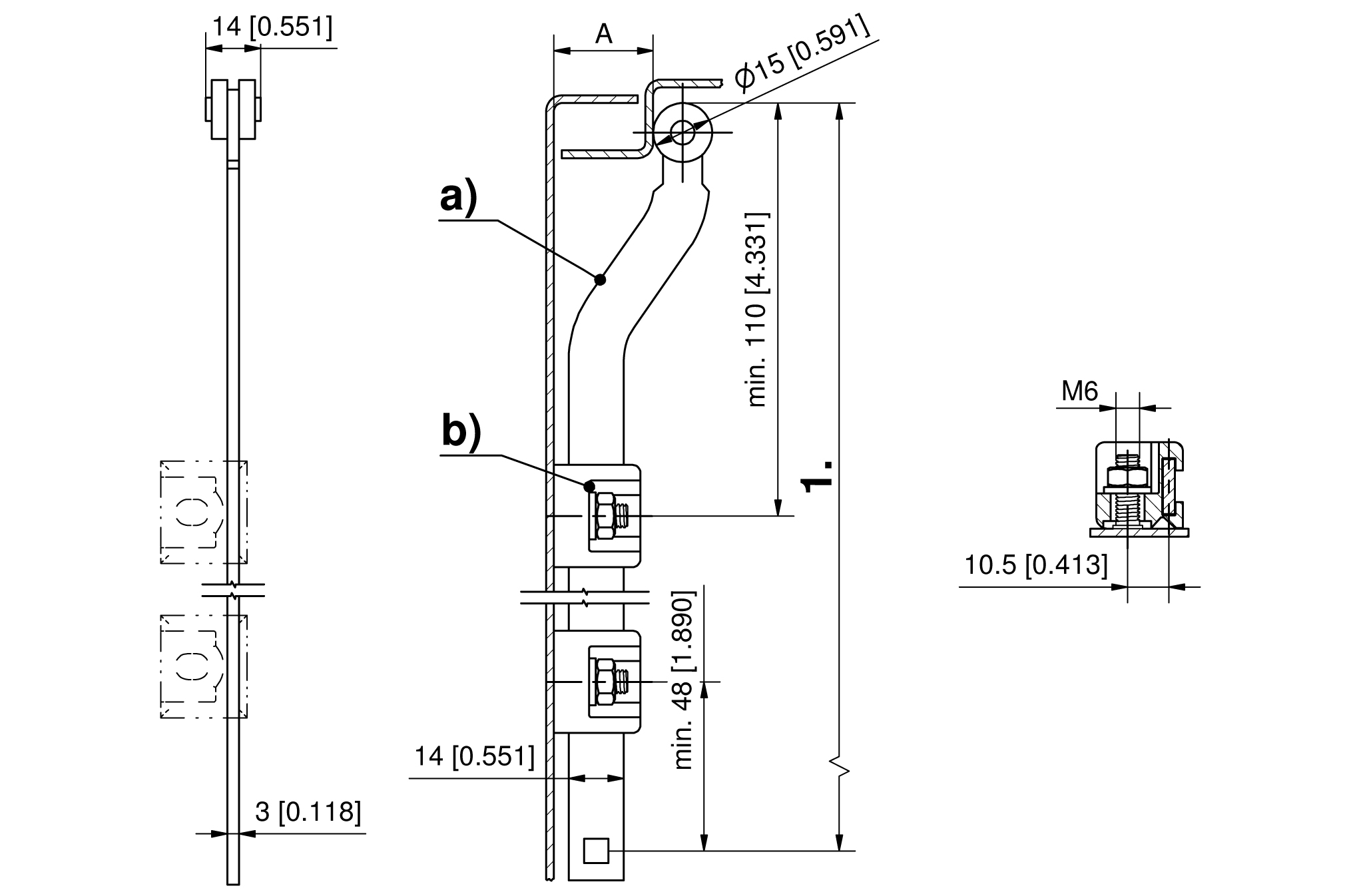

1. lenght L

Selected version

Product number 208-9733.00-Lxxmm
Delivery Unit: on request
A = bending: 20
Rod dimension WxH: 14 x 3 mm
CAD model
Remove selection Product data sheet

Related Products

Accessories



Article no.
Name

b)
3-910
Rod Guide FS 23mm
Open overview in new tab
b)
208-1501.03-00000
Rod guide PA , 1-part, M6
Details
Name:
Rod guide PA , 1-part, M6
Fastening type:
M6
Material:
PA
Delivery Unit:
1 pc.
Open product in new tab
b)
208-1509.03-00000
Rod guide PA , 1-part, M5
Details
Name:
Rod guide PA , 1-part, M5
Fastening type:
M5
Material:
PA
Delivery Unit:
1 pc.
Open product in new tab
b)
208-1517.03-00000
Rod guide PA , 1-part, M6
Details
Name:
Rod guide PA , 1-part, M6
Fastening type:
M6
Material:
PA
Delivery Unit:
1 pc.
Open product in new tab
b)
208-9790.00-00000
Rod guide stainless steel, 2-parts, M6
Details
Name:
Rod guide stainless steel, 2-parts, M6
Fastening type:
M6
Material:
stainless steel
Delivery Unit:
1 pc.
Open product in new tab
b)
208-9791.00-00000
Rod guide zinc die, 2-parts, M6
Details
Name:
Rod guide zinc die, 2-parts, M6
Fastening type:
M6
Material:
zinc die
Delivery Unit:
1 pc.
Open product in new tab
b)
3-911
Rod Guide FS 23mm
Open overview in new tab
b)
208-1523.54-00000
Rod guide
Details
Version:
for flat rod
Installation type:
tool-less
Delivery Unit:
1 pc.
Open product in new tab

Product Configuration

Selected version

Product number 208-9733.00-Lxxmm
Delivery Unit: on request
A = bending: 20
Rod dimension WxH: 14 x 3 mm
