Dual Hook FS 23mm

ICON_ROHS
ICON_FLACHSTANGE
3_912
E_3-912
3_912
E_3-912

Advantages

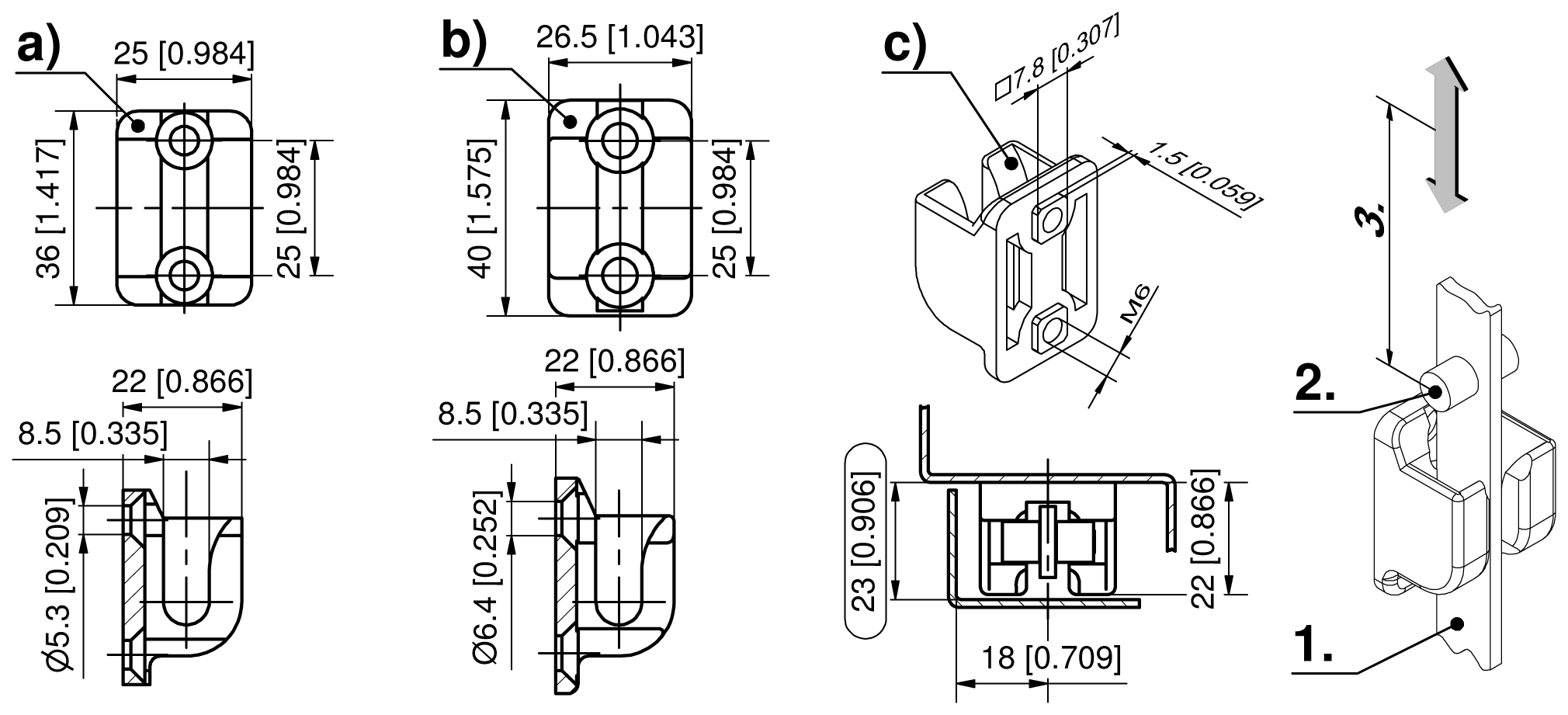

  • Dual hook for flat rods with dual rollers.
  • a) and b) IP65 according to DIN EN 60529 with flat external seal (optional).

Material


a)
  • Dual hook: PA, black
b, c)
  • Dual hook: zinc die, zinc plated

Remarks

Required space inside the bend 23mm

1. flat rod
2. dual rollers
3. stroke 24mm

Selected version

Product number 208-1402.00-00000
Surface: zinc plated
Delivery Unit: 1 pc.
Installation type: screw-on
Material: zinc die
Version: with countersunk holes for M6
CAD model
Remove selection Product data sheet

Related Products

Function extension



Article no.
Name

208-1803.00-00000
Flat external seal
Details
Name:
Flat external seal
Material:
EPDM
Delivery Unit:
1 pc.
Open product in new tab

Accessories



Article no.
Name

6-040
Serrated Screws
Open overview in new tab
202-0506.00-00000
Serrated screw
Details
D:
10 mm
k:
4,5 mm
SW:
8 mm
L:
6 mm
Thread size:
M5
Material:
steel
Surface:
zinc plated
Delivery Unit:
200 pcs.
Open product in new tab
202-0508.00-00000
Serrated screw
Details
D:
10 mm
k:
4,5 mm
SW:
8 mm
L:
8 mm
Thread size:
M5
Material:
steel
Surface:
zinc plated
Delivery Unit:
200 pcs.
Open product in new tab
202-0606.00-00000
Serrated screw
Details
D:
13,5 mm
k:
5,5 mm
SW:
10 mm
L:
6 mm
Thread size:
M6
Material:
steel
Surface:
zinc plated
Delivery Unit:
200 pcs.
Open product in new tab
202-0607.00-00000
Serrated screw
Details
D:
13,5 mm
k:
5,5 mm
SW:
10 mm
L:
7 mm
Thread size:
M6
Material:
steel
Surface:
zinc plated
Delivery Unit:
200 pcs.
Open product in new tab
202-0608.00-00000
Serrated screw
Details
D:
13,5 mm
k:
5,5 mm
SW:
10 mm
L:
8 mm
Thread size:
M6
Material:
steel
Surface:
zinc plated
Delivery Unit:
200 pcs.
Open product in new tab
202-0610.00-00000
Serrated screw
Details
D:
13,5 mm
k:
5,5 mm
SW:
10 mm
L:
10 mm
Thread size:
M6
Material:
steel
Surface:
zinc plated
Delivery Unit:
200 pcs.
Open product in new tab
202-0616.00-00000
Serrated screw
Details
D:
13,5 mm
k:
5,5 mm
SW:
10 mm
L:
16 mm
Thread size:
M6
Material:
steel
Surface:
zinc plated
Delivery Unit:
200 pcs.
Open product in new tab
202-0620.00-00000
Serrated screw
Details
D:
13,5 mm
k:
5,5 mm
SW:
10 mm
L:
20 mm
Thread size:
M6
Material:
steel
Surface:
zinc plated
Delivery Unit:
200 pcs.
Open product in new tab
202-0625.00-00000
Serrated screw
Details
D:
13,5 mm
k:
5,5 mm
SW:
10 mm
L:
25 mm
Thread size:
M6
Material:
steel
Surface:
zinc plated
Delivery Unit:
200 pcs.
Open product in new tab
202-0630.00-00000
Serrated screw
Details
D:
13,5 mm
k:
5,5 mm
SW:
10 mm
L:
30 mm
Thread size:
M6
Material:
steel
Surface:
zinc plated
Delivery Unit:
200 pcs.
Open product in new tab
202-0635.00-00000
Serrated screw
Details
D:
13,5 mm
k:
5,5 mm
SW:
10 mm
L:
35 mm
Thread size:
M6
Material:
steel
Surface:
zinc plated
Delivery Unit:
200 pcs.
Open product in new tab
202-0640.00-00000
Serrated screw
Details
D:
13,5 mm
k:
5,5 mm
SW:
10 mm
L:
40 mm
Thread size:
M6
Material:
steel
Surface:
zinc plated
Delivery Unit:
200 pcs.
Open product in new tab
202-0650.00-00000
Serrated screw
Details
D:
13,5 mm
k:
5,5 mm
SW:
10 mm
L:
50 mm
Thread size:
M6
Material:
steel
Surface:
zinc plated
Delivery Unit:
200 pcs.
Open product in new tab
202-0810.00-00000
Serrated screw
Details
D:
16,5 mm
k:
7,5 mm
SW:
13 mm
L:
10 mm
Thread size:
M6
Material:
steel
Surface:
zinc plated
Delivery Unit:
200 pcs.
Open product in new tab
202-0606.04-00000
Serrated screw
Details
D:
13,5 mm
k:
5,5 mm
SW:
10 mm
L:
6 mm
Thread size:
M6
Material:
AISI 304
Surface:
stainless steel
Delivery Unit:
200 pcs.
Open product in new tab
202-0608.04-00000
Serrated screw
Details
D:
13,5 mm
k:
5,5 mm
SW:
10 mm
L:
8 mm
Thread size:
M6
Material:
AISI 304
Surface:
stainless steel
Delivery Unit:
200 pcs.
Open product in new tab
202-0610.04-00000
Serrated screw
Details
D:
13,5 mm
k:
5,5 mm
SW:
10 mm
L:
10 mm
Thread size:
M6
Material:
AISI 304
Surface:
stainless steel
Delivery Unit:
200 pcs.
Open product in new tab
202-0616.04-00000
Serrated screw
Details
D:
13,5 mm
k:
5,5 mm
SW:
10 mm
L:
16 mm
Thread size:
M6
Material:
AISI 304
Surface:
stainless steel
Delivery Unit:
200 pcs.
Open product in new tab

Product Configuration

Selected version

Product number 208-1402.00-00000
Surface: zinc plated
Delivery Unit: 1 pc.
Installation type: screw-on
Material: zinc die
Version: with countersunk holes for M6
