[7-070]

Flat Rods FS Stainless Steel

Advantages

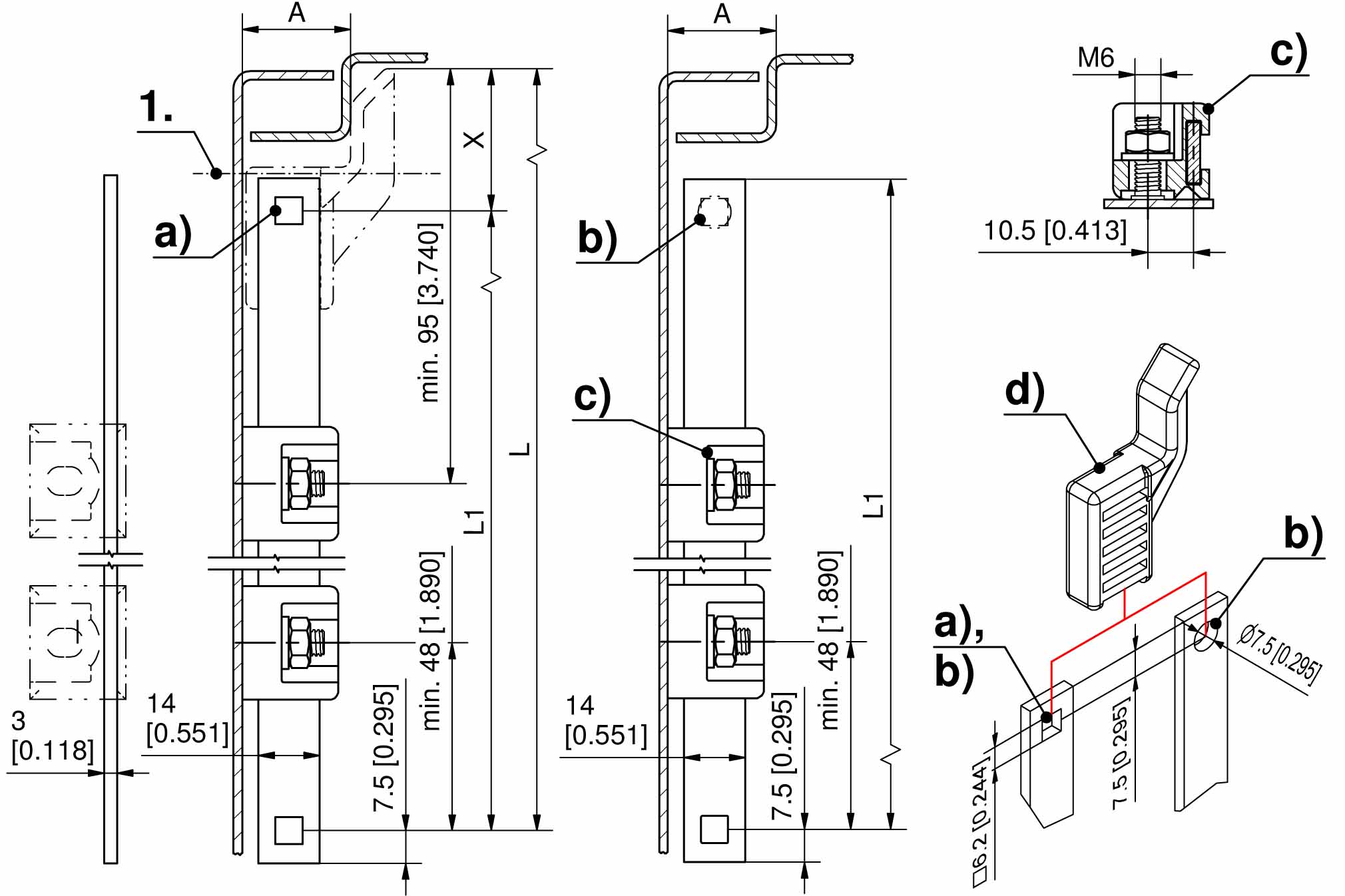

Flat rods for ramp-shoe 3-162.
Version a) With two square holes 6.2mm.
Calculation of the rod length: L1 = center of square to center of square.
Version b) With one square hole 6.2mm for self cutting. These flat rods are specially designed to allow for custom length rods.
Calculation of the rod length: L1 = center of square to end of rod.
The top of the flat rod can be provided with a square 6.2mm or a round Ø7.5mm hole as shown in figure.

1. stroke

dimension x - see product system 3-162

DIRAK recommends 2 rod guides for rods with length greater than 200mm.
