Round Rods Stainless Steel

ICON_ROHS
ICON_RUNDSTANGE
ICON_EDELSTAHL
7_106
E_7-106
E_7-106_100
7_106
E_7-106
E_7-106_100

Advantages

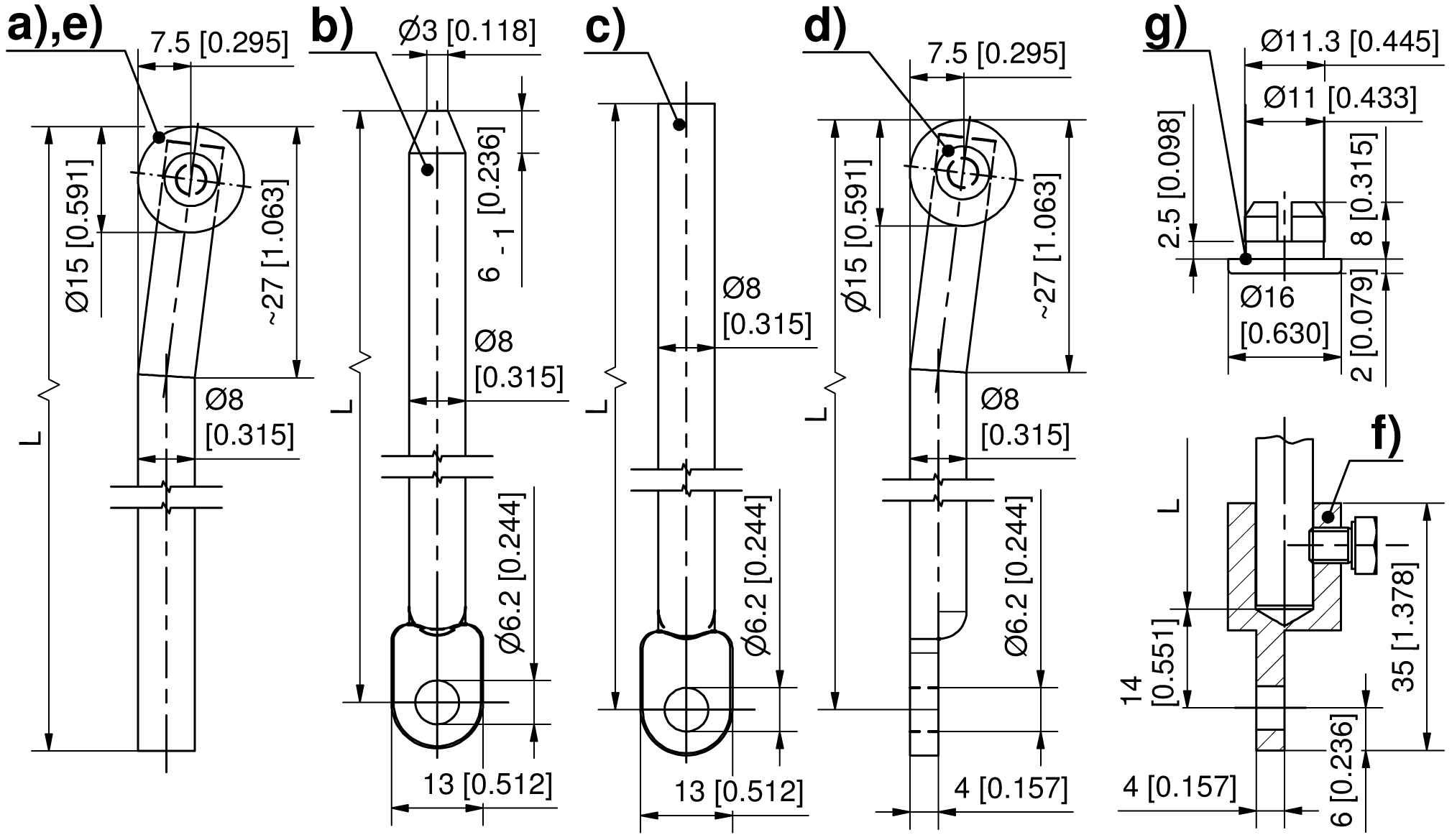

  • Round rods with standard or customized lengths, different versions.

Material

  • Round rods and rivet: AISI 304
  • Rollers: PA, black

Remarks

Order example for round rods with eye and rollers, length L=840mm: 201-9026.00-00840

Bushing g) only for round rods a), b), c) and e)

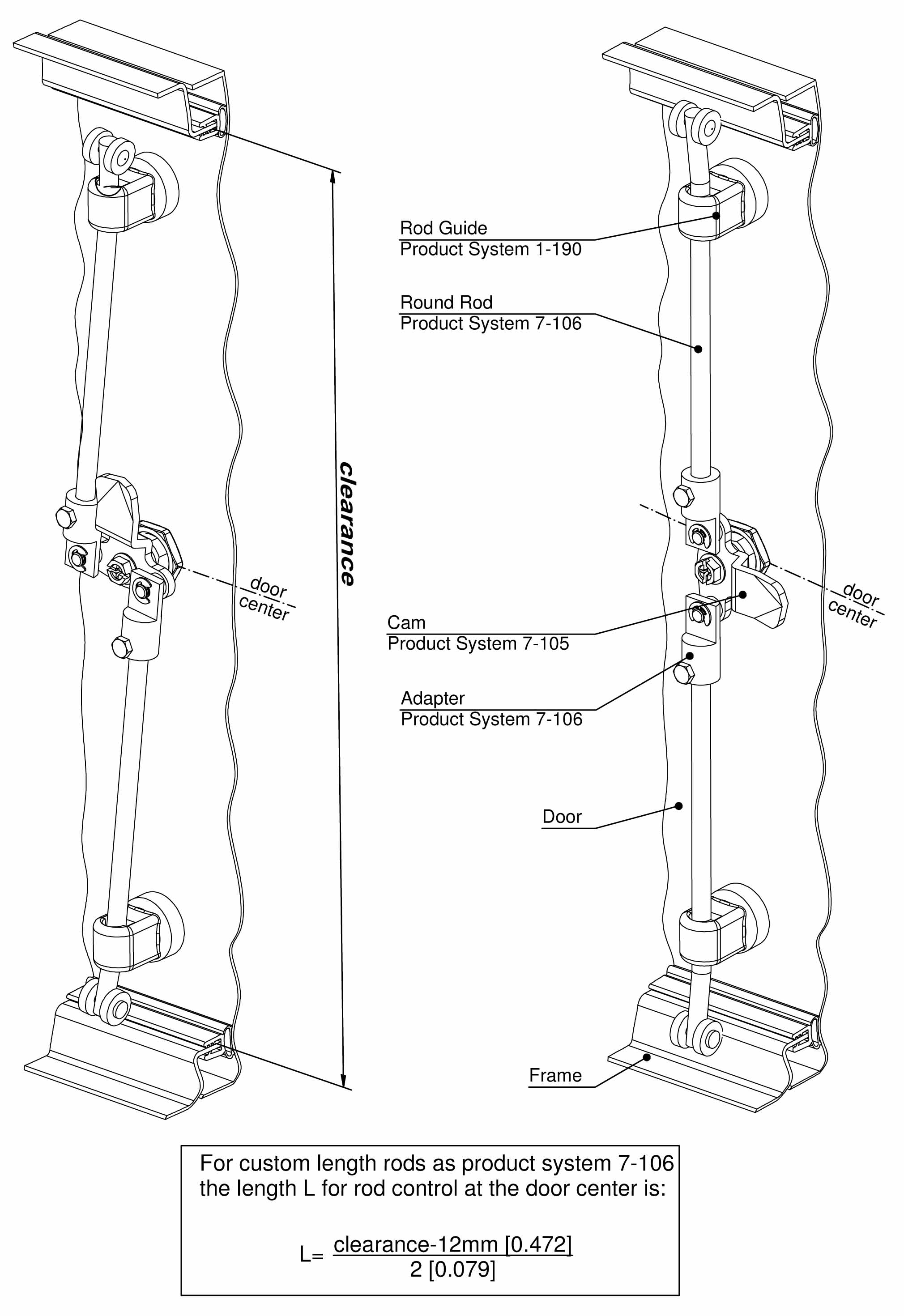

Attention: dimension L measured to top of roller!

Selected version

Product number 201-9011.00-00000
Delivery Unit: 1 pc.
Length: 700 mm
CAD model
Remove selection Product data sheet

Related Products

Accessories



Article no.
Name

f)
200-9603.00-00000
Adapter for Round Rods Ø8mm Stainless Steel
Details
Fastening type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab
g)
203-0605.03-00000
Bushing Ø8
Details
Type:
Bushing
D:
-
for flat rod:
-
for round rod:
Ø8
L:
-
L1:
-
Length:
Material:
PA
Surface:
black
self-locking:
Delivery Unit:
10 pcs.
Open product in new tab
200-9621.00-00000
Adapter for Round Rods Ø8mm PA
Details
Rod diameter Ø:
8 mm
quick-fit:
Yes
Installation type:
tool-less
Delivery Unit:
1 pc.
Open product in new tab
7-912
Rod Guide RS, height adjustable Stainless Steel
Open overview in new tab
200-9623.00-00000
Rod guide
Details
Height adjustable:
Yes
Adjustment range:
max. + 5 mm
Installation type:
screw-on
Delivery Unit:
1 pc.
Open product in new tab

Product Configuration

Selected version

Product number 201-9011.00-00000
Delivery Unit: 1 pc.
Length: 700 mm
