[1-263.01]

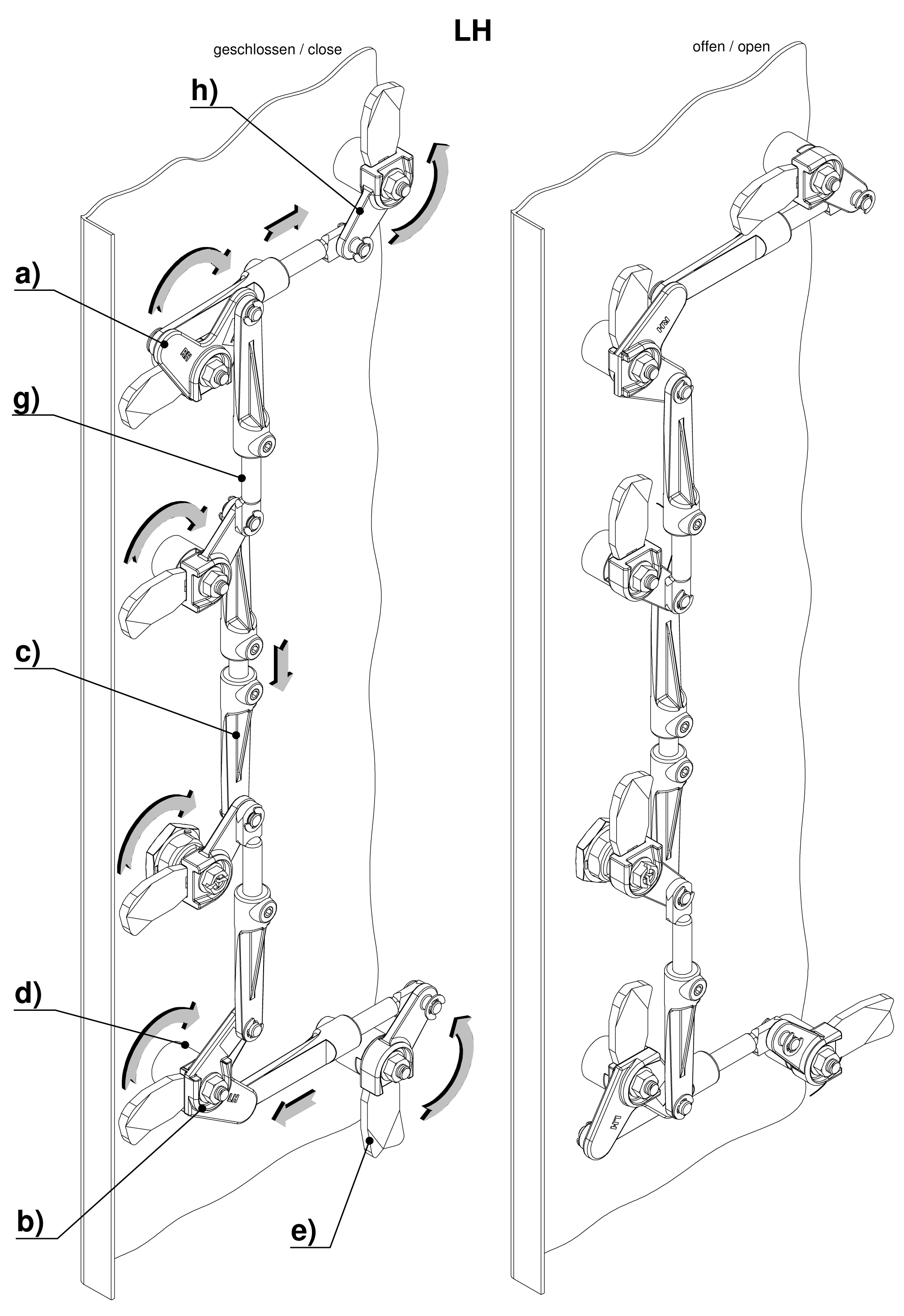

90° Redirect for Multi-Point Locking System

ICON_ROHS
ICON_RUNDSTANGE
ICON_TUERANSCHLAG_LR
ICON_FLACHSTANGE
1_263_01
E_1-263_100_1
E_1-263_100_2
E_1-263_100_3
E_1-263_100_4
E_1-263_01
E_1-263_01_101
1_263_01
E_1-263_100_1
E_1-263_100_2
E_1-263_100_3
E_1-263_100_4
E_1-263_01
E_1-263_01_101

Advantages

  • Using for optimal latching point.
  • For quarter-turns with insert GL 18mm and swinghandles for round rods Ø8mm.

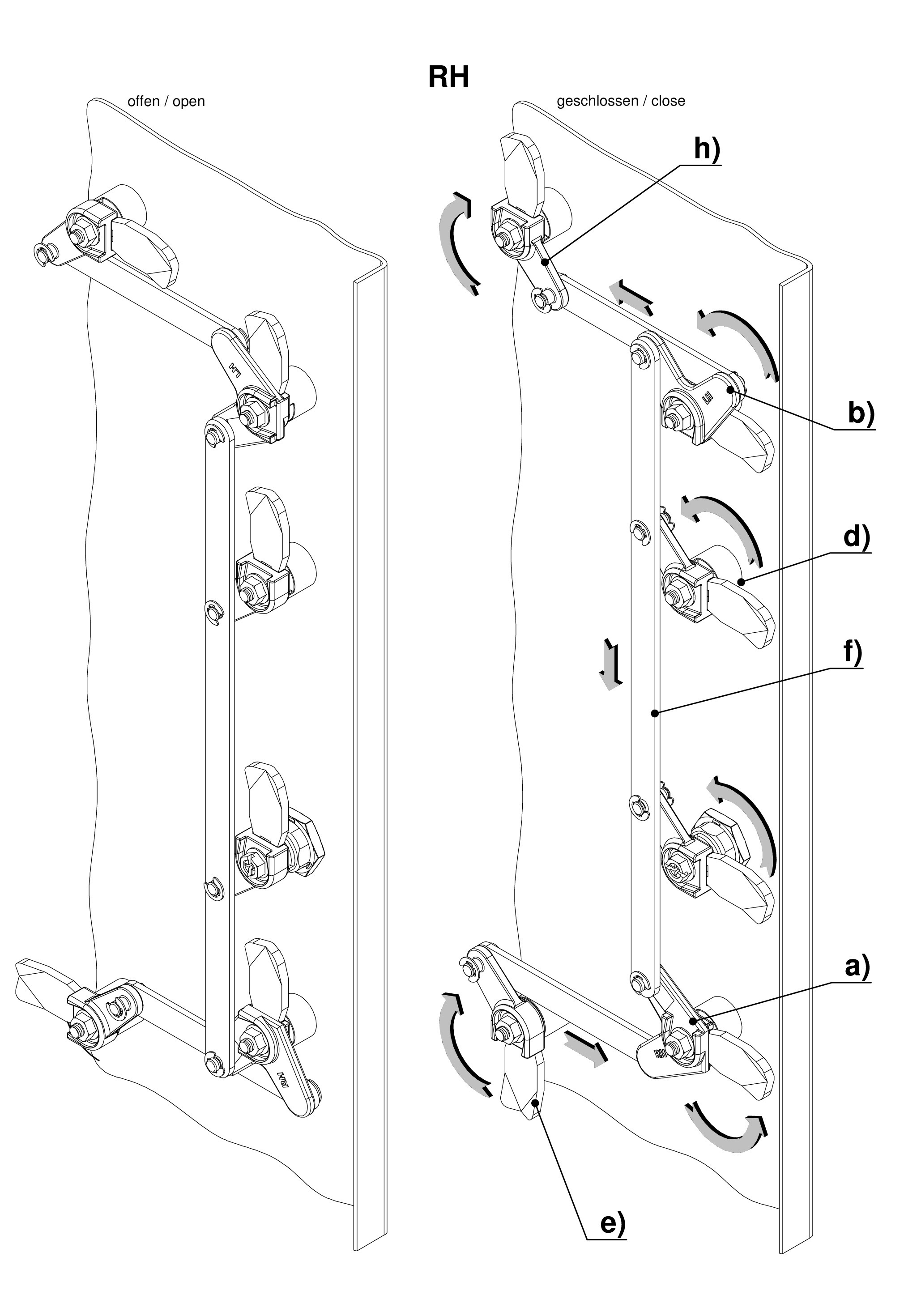

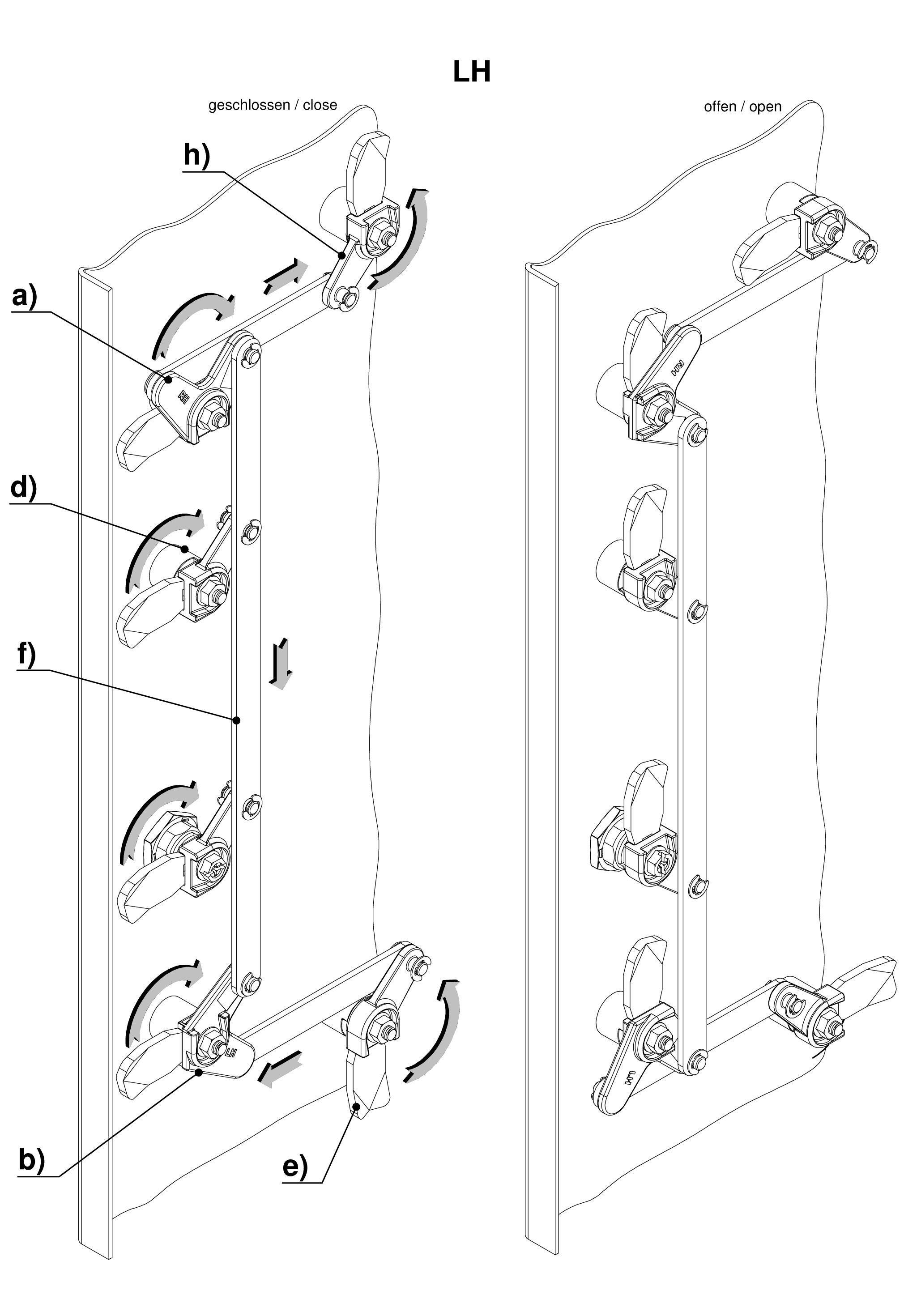

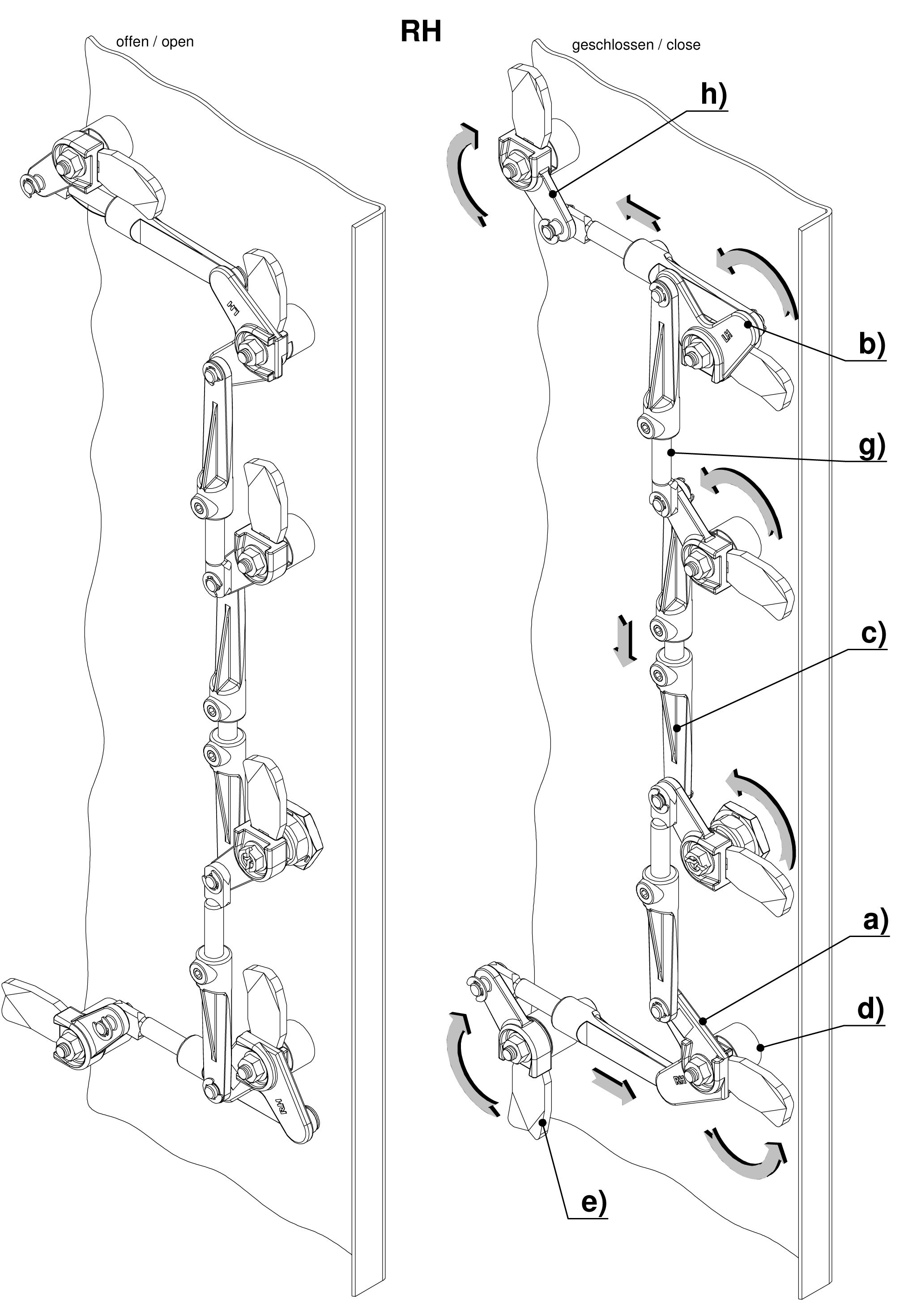

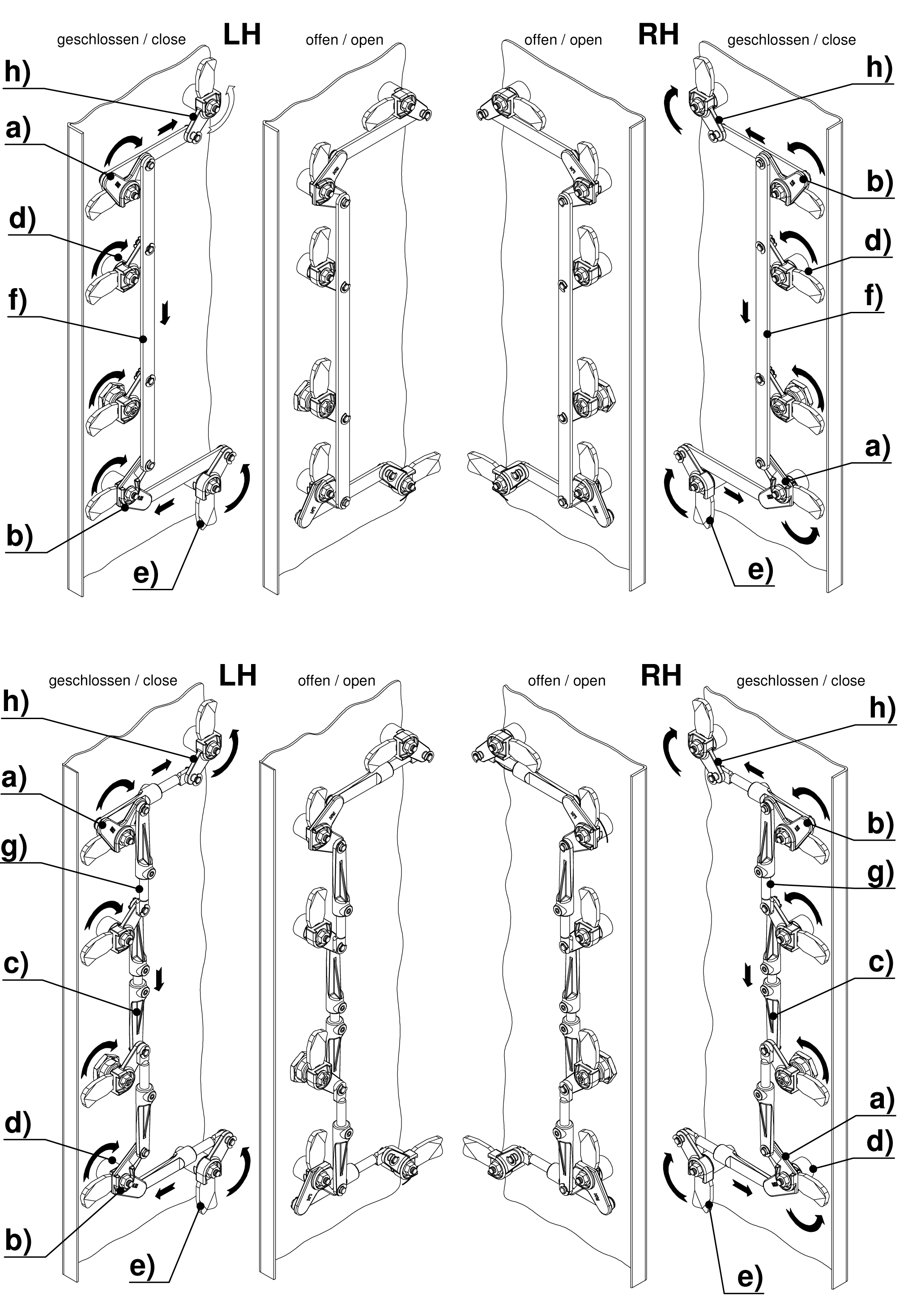

  • RH and LH version.

Material

  • Redirect: zinc die, zinc plated
  • C-clip and setscrew: steel, zinc plated

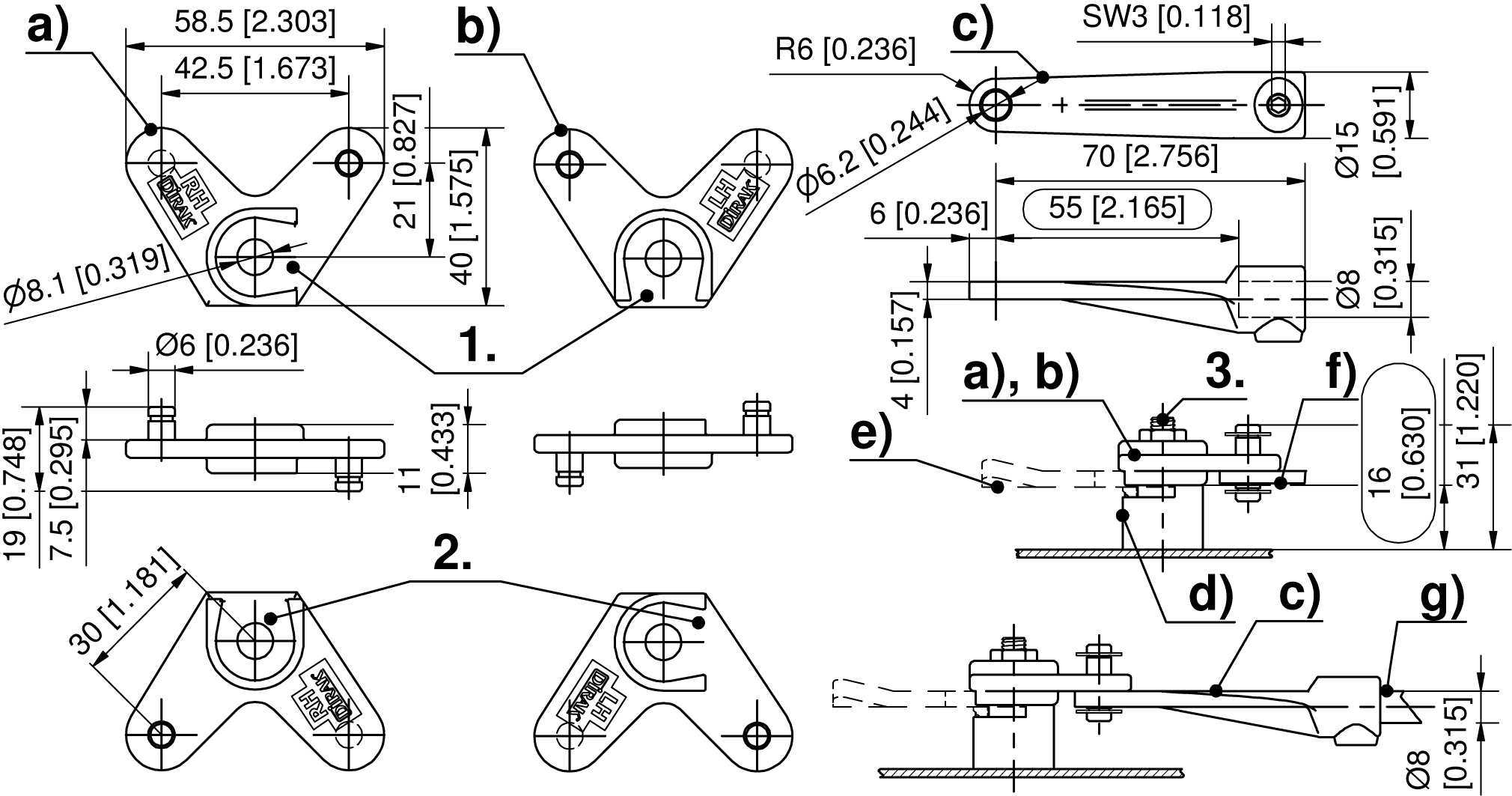

Remarks

1. cam position
2. on the back side of the redirect cam positon turned 90°
3. assembly spacer on weld-stud M6x32
c) adapter for round rods (must be ordered by using round rods)
d) H-dimension 18mm only for sheet thickness 2mm
f) for the use of flat rods please contact us

Attention: can only be used for straight cams.

Selected version

Product number 200-9637.00-00000
Delivery Unit: 10 pcs.
for round rod: Ø8
CAD model
Remove selection Product data sheet

Related Products

Accessories



Article no.
Name

e)
200-0418.00-00000
Cam L45
Details
H-dimension Gl12:
12 mm
H-dimension Gl18:
18 mm
H-dimension Gl20:
20 mm
H-dimension Gl22:
22 mm
H-dimension Gl30:
30 mm
H-dimension Gl32:
32 mm
H-dimension Gl36:
36 mm
H-dimension Gl40:
40 mm
H-dimension Gl42:
42 mm
H-dimension Gl46:
46 mm
H-dimension Gl50:
50 mm
H-dimension Gl56:
56 mm
H-dimension Gl60:
60 mm
H-dimension Gl66:
66 mm
Delivery Unit:
10 pcs.
Open product in new tab
e)
200-4018.00-00000
Cam with ramp
Details
H-dimension:
18 mm
Ramp:
6mm
Length:
45 mm
Stop:
Yes
Delivery Unit:
10 pcs.
Open product in new tab
g)
1-170
Round Rods with Eye
Open overview in new tab
g)
201-0102.00-00000
Round rod 400mm
Details
Version:
with eye
Length:
400 mm
variable length:
Delivery Unit:
1 pc.
Open product in new tab
g)
201-0103.00-00000
Round rod 500mm
Details
Version:
with eye
Length:
500 mm
variable length:
Delivery Unit:
1 pc.
Open product in new tab
g)
201-0104.00-00000
Round rod 600mm
Details
Version:
with eye
Length:
600 mm
variable length:
Delivery Unit:
1 pc.
Open product in new tab
g)
201-0105.00-00000
Round rod 700mm
Details
Version:
with eye
Length:
700 mm
variable length:
Delivery Unit:
1 pc.
Open product in new tab
g)
201-0106.00-00000
Round rod 800mm
Details
Version:
with eye
Length:
800 mm
variable length:
Delivery Unit:
1 pc.
Open product in new tab
g)
201-0107.00-00000
Round rod 900mm
Details
Version:
with eye
Length:
900 mm
variable length:
Delivery Unit:
1 pc.
Open product in new tab
g)
201-0108.00-00000
Round rod 1000mm
Details
Version:
with eye
Length:
1000 mm
variable length:
Delivery Unit:
1 pc.
Open product in new tab
g)
201-0109.00-00000
Round rod 1100mm
Details
Version:
with eye
Length:
1100 mm
variable length:
Delivery Unit:
1 pc.
Open product in new tab
g)
201-0110.00-00000
Round rod 1200mm
Details
Version:
with eye
Length:
1200 mm
variable length:
Delivery Unit:
1 pc.
Open product in new tab
g)
201-0112.00-Lxxmm
Round rod, variable length
Details
Version:
with eye
Length:
variable length:
Yes
Delivery Unit:
on request
Open product in new tab
g)
201-0111.00-Lxxmm
Round rod, variable length
Details
Version:
with eye and chamfered end
Length:
variable length:
Yes
Delivery Unit:
on request
Open product in new tab
g)
201-9006.00-Lxxmm
Round rod, variable length
Details
Version:
with eye and rollers
Length:
variable length:
Yes
Delivery Unit:
on request
Open product in new tab
g)
201-9021.00-Lxxmm
Round rod, variable length, with eye parallel to the roller
Details
Version:
with eye and rollers, eye parallel to the roller
Length:
variable length:
Yes
Delivery Unit:
auf Anfrage
Open product in new tab
h)
100-9033.00-00000
Cam adapter (incl. 2 c-clips)
Details
Name:
Cam adapter (incl. 2 c-clips)
Delivery Unit:
10 pcs.
Open product in new tab

Specific accessories



Article no.
Name

d
200-2811.35-00000
Spacer
Details
Name:
Spacer
Delivery Unit:
10 pcs.
Open product in new tab

Product Configuration

Selected version

Product number 200-9637.00-00000
Delivery Unit: 10 pcs.
for round rod: Ø8

Selected additional products

[none]
