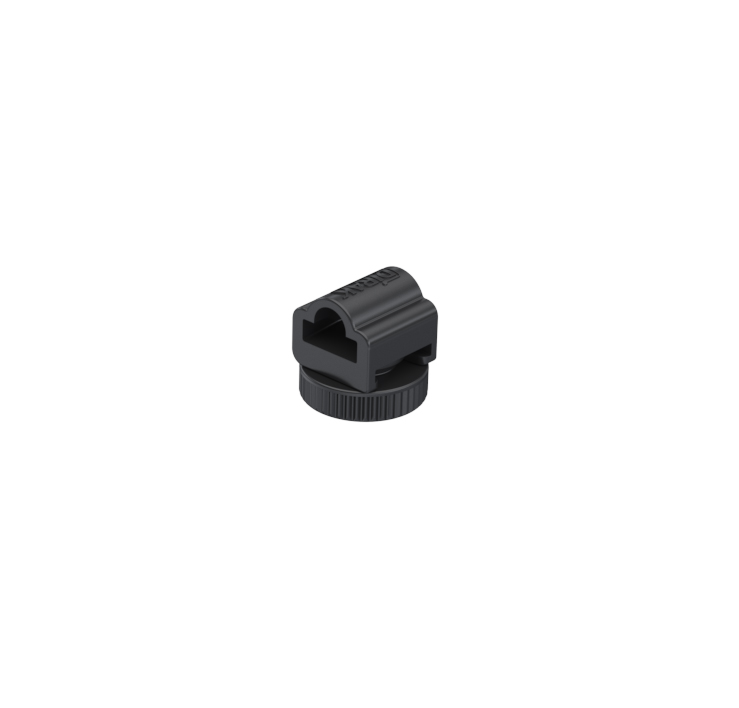

Height-adjustable Rod Guide RS

ICON_ROHS
ICON_TUERANSCHLAG_LR
ICON_WERKZEUGLOS
ICON_RUNDSTANGE
1_191
E_1-191SL
1_191
E_1-191SL

Advantages

  • Rod guide is pushed onto the knurled nut and can be installed therefore pre-assembled.
  • Tool-less adjustment with knurled nut.
  • Readjustment possible at any time.
  • Dismantling of the rod for height adjustment not necessary.
  • Usable for studs M6 from 14 to 21mm.
  • Adjustment range up to max. 8mm.
  • RH / LH application.

Material


  • Rod guide and knurled nut: PA, black

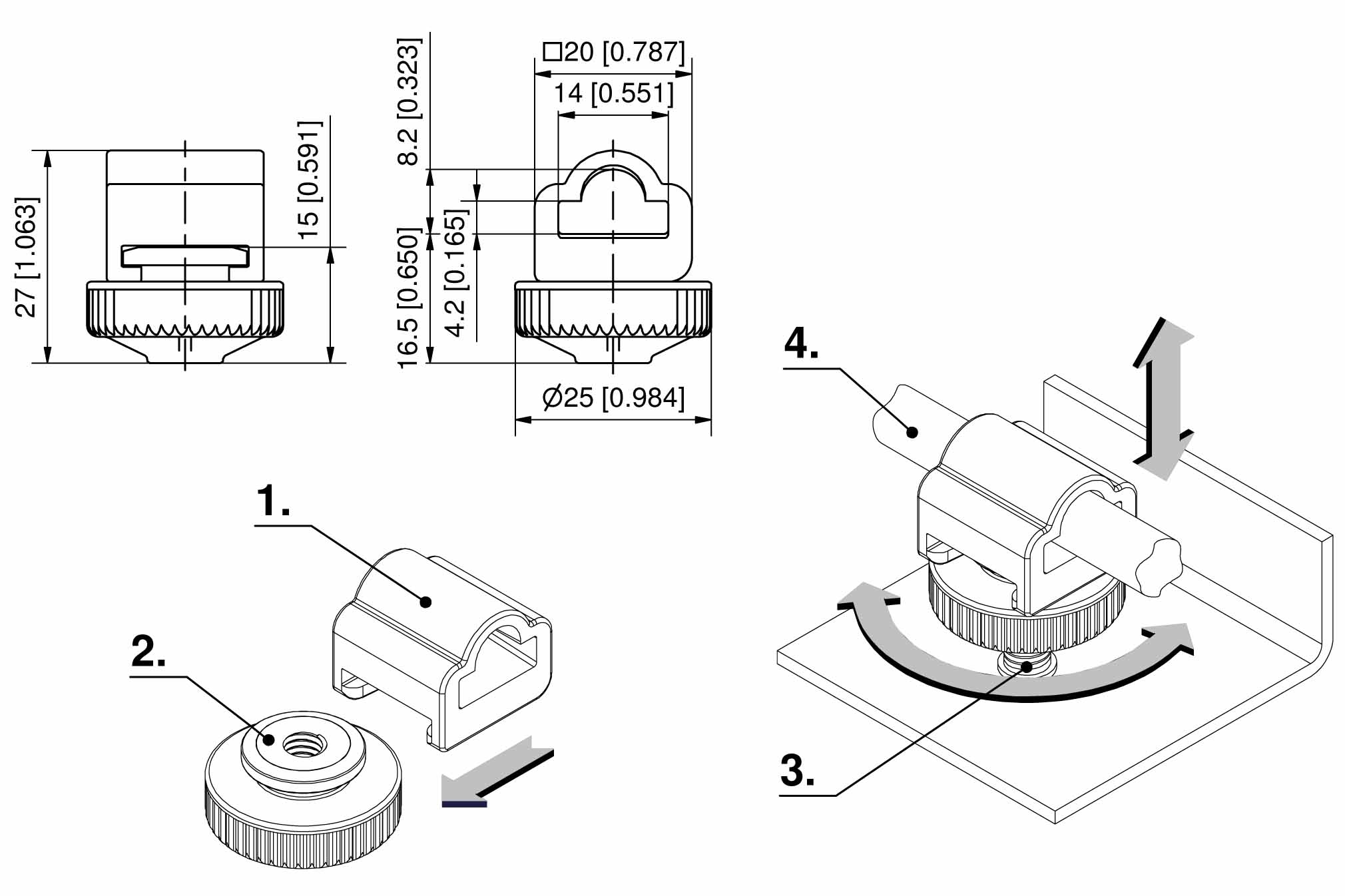

Remarks

1. rod guide
2. knurled nut
3. stud
4. round rod

Selected version

Product number 200-9633.00-00000
Delivery Unit: 10 pcs.
Installation type: tool-less
Adjustment range: max. 8 mm
Height adjustable: Yes
CAD model
Remove selection Product data sheet
