[7-912]

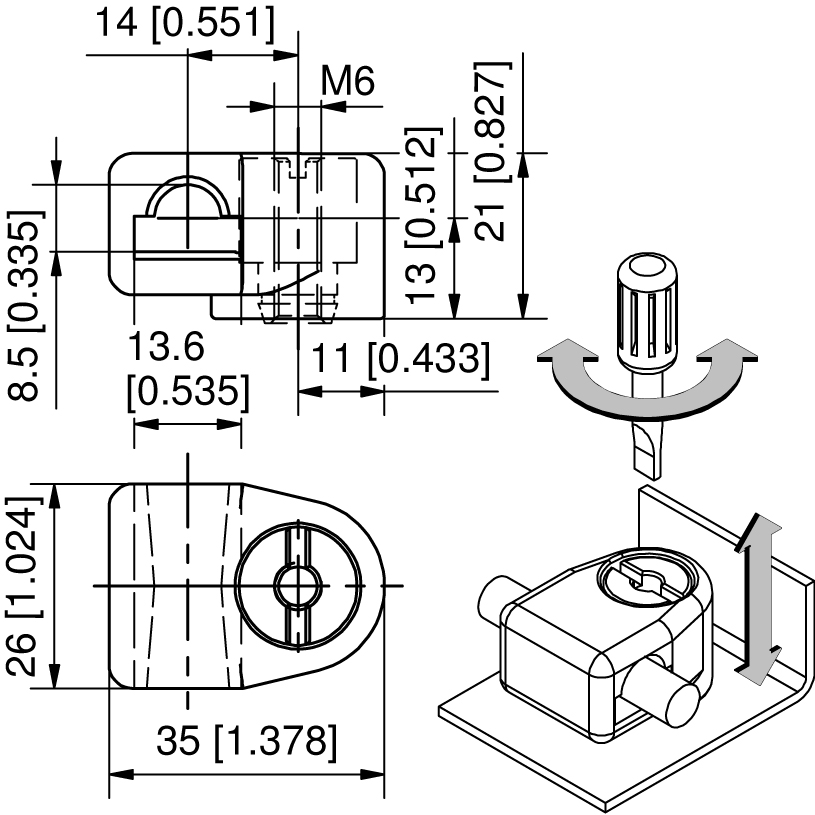

Rod Guide RS, height adjustable Stainless Steel
Advantages
- Rod guide with adjustable height for 8 mm round rods, to compensate production tolerances, or if sealing has set.
- Slotted insert (max.12 x 2 mm).
Material
- Rod guide: AISI 316
- Adjusting screw: AISI 303
- C-clip and wave washer: stainless steel
Remarks
Adjustment depending on the lenght of the weld stud:M6 x 14 +5/-1 mm,
M6 x 16 +5/-3 mm,
M6 x 18 +5/-5 mm,
M6 x 20 +5/-7 mm
More information see product system 1-192.
Selected version
Product number | 200-9623.00-00000 |
Delivery Unit: | 1 pc. |
Installation type: | screw-on |
Adjustment range: | max. + 5 mm |
Height adjustable: | Yes |
Related Products
Accessories
Article no.
Name
201-9010.00-00000
Round rod 600mm
201-9011.00-00000
Round rod 700mm
201-9012.00-00000
Round rod 800mm
201-9013.00-00000
Round rod 900mm
201-9014.00-00000
Round rod 1000mm
201-9015.00-00000
Round rod 1100mm
201-9016.00-00000
Round rod 1200mm
201-0111.04-Lxxmm
Round rod, variable length
201-0112.04-Lxxmm
Round rod, variable length
201-9026.00-Lxxmm
Round rod, variable length
201-9037.00-Lxxmm
Round rod, variable length
Product Configuration
Selected version
Product number | 200-9623.00-00000 |
Delivery Unit: | 1 pc. |
Installation type: | screw-on |
Adjustment range: | max. + 5 mm |
Height adjustable: | Yes |
Selected additional products
[none] |
