Adapter and Spacer
Advantages
- For designing multipoint locking systems.
- RH / LH application.
- Flexible use on quarter-turns with 18mm housings or swinghandles.

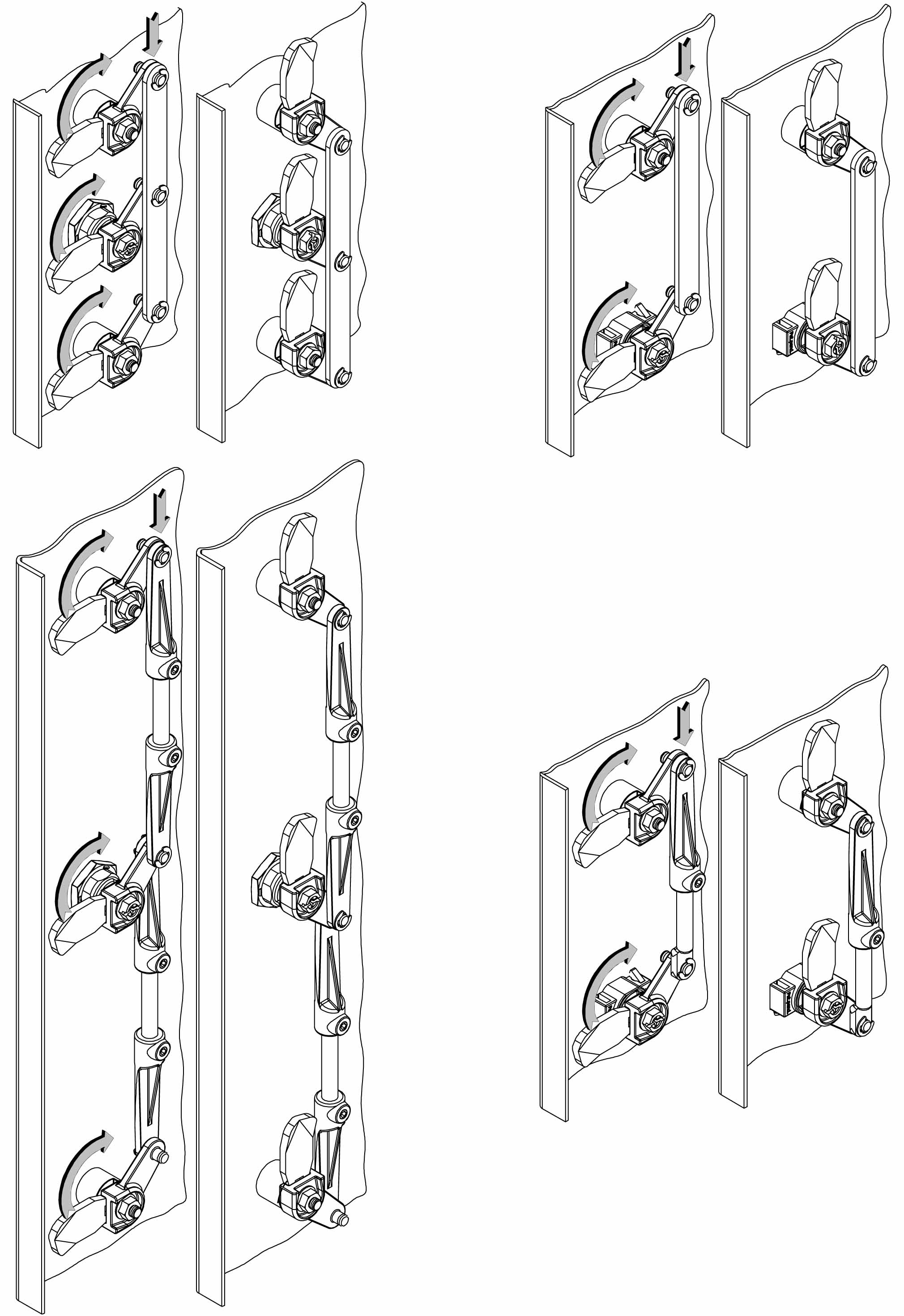

- As the examples show, the controlling quarter-turn (2.) can be installed in different positions.
Material
- Adapter and spacer: zinc die, zinc plated
- C-clip: steel, zinc plated
Remarks

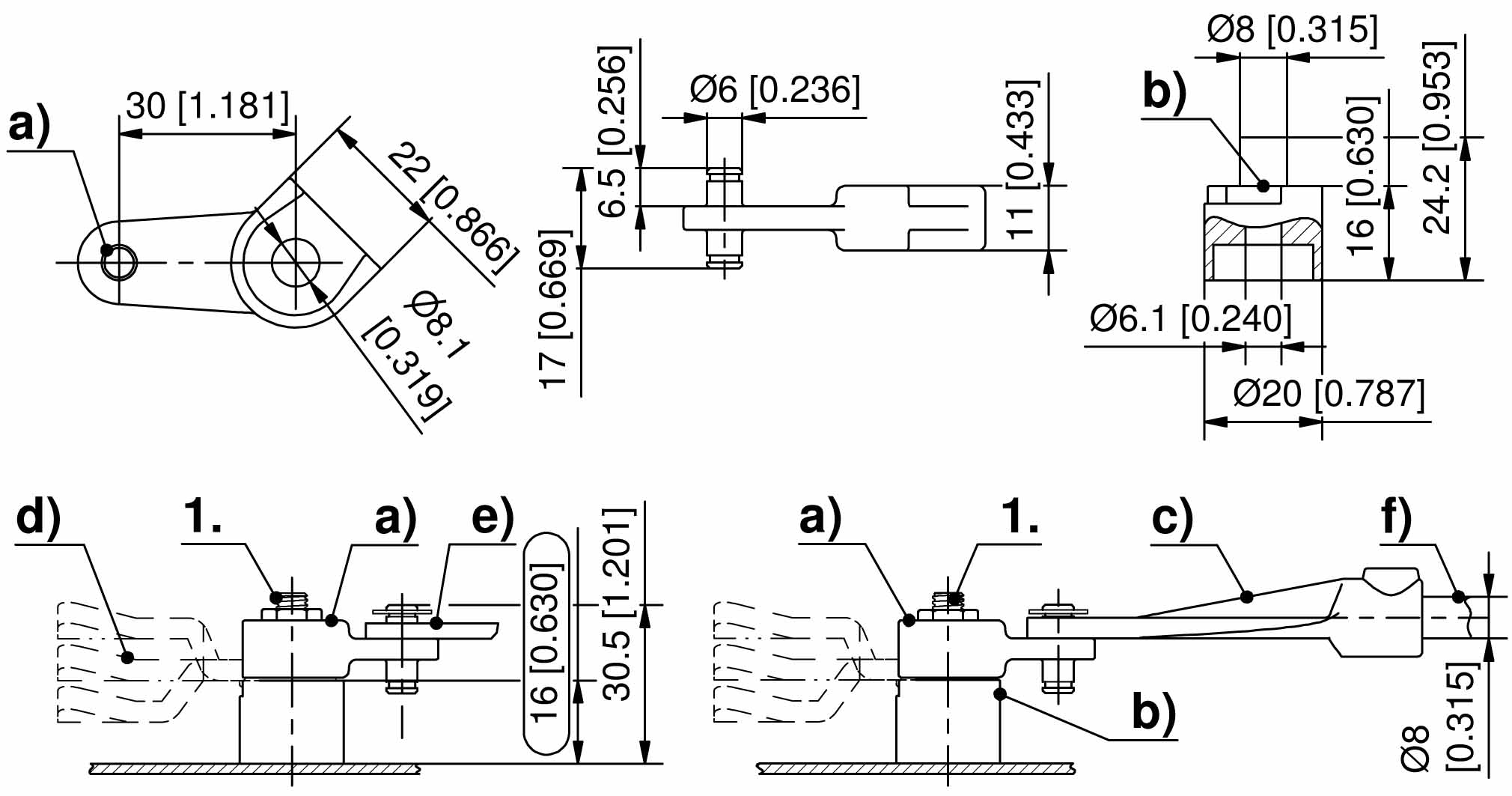

1. weld-stud M6x32e) and f): for flat rods please contact DIRAK.
H-dimension (18) only for sheet thickness 2mm.
Related Products
Function extension
Article no.
Name
c
200-9637.00-00000
Adapter for round rods
Accessories
Article no.
Name
d)
200-0402.00-00000
Cam L45
Details
H-dimension Gl12:
H-dimension Gl18:
2 mm
H-dimension Gl20:
4 mm
H-dimension Gl22:
6 mm
H-dimension Gl30:
14 mm
H-dimension Gl32:
16 mm
H-dimension Gl36:
20 mm
H-dimension Gl40:
24 mm
H-dimension Gl42:
26 mm
H-dimension Gl46:
30 mm
H-dimension Gl50:
34 mm
H-dimension Gl56:
40 mm
H-dimension Gl60:
44 mm
H-dimension Gl66:
50 mm
Delivery Unit:
10 pcs.
d)
200-0404.00-00000
Cam L45
Details
H-dimension Gl12:
H-dimension Gl18:
4 mm
H-dimension Gl20:
6 mm
H-dimension Gl22:
8 mm
H-dimension Gl30:
16 mm
H-dimension Gl32:
18 mm
H-dimension Gl36:
22 mm
H-dimension Gl40:
26 mm
H-dimension Gl42:
28 mm
H-dimension Gl46:
32 mm
H-dimension Gl50:
36 mm
H-dimension Gl56:
42 mm
H-dimension Gl60:
46 mm
H-dimension Gl66:
52 mm
Delivery Unit:
10 pcs.
d)
200-0406.00-00000
Cam L45
Details
H-dimension Gl12:
H-dimension Gl18:
6 mm
H-dimension Gl20:
8 mm
H-dimension Gl22:
10 mm
H-dimension Gl30:
18 mm
H-dimension Gl32:
20 mm
H-dimension Gl36:
24 mm
H-dimension Gl40:
28 mm
H-dimension Gl42:
30 mm
H-dimension Gl46:
34 mm
H-dimension Gl50:
38 mm
H-dimension Gl56:
44 mm
H-dimension Gl60:
48 mm
H-dimension Gl66:
54 mm
Delivery Unit:
10 pcs.
d)
200-0408.00-00000
Cam L45
Details
H-dimension Gl12:
H-dimension Gl18:
8 mm
H-dimension Gl20:
10 mm
H-dimension Gl22:
12 mm
H-dimension Gl30:
20 mm
H-dimension Gl32:
22 mm
H-dimension Gl36:
26 mm
H-dimension Gl40:
30 mm
H-dimension Gl42:
32 mm
H-dimension Gl46:
36 mm
H-dimension Gl50:
40 mm
H-dimension Gl56:
46 mm
H-dimension Gl60:
50 mm
H-dimension Gl66:
56 mm
Delivery Unit:
10 pcs.
d)
200-0410.00-00000
Cam L45
Details
H-dimension Gl12:
H-dimension Gl18:
10 mm
H-dimension Gl20:
12 mm
H-dimension Gl22:
14 mm
H-dimension Gl30:
22 mm
H-dimension Gl32:
24 mm
H-dimension Gl36:
28 mm
H-dimension Gl40:
32 mm
H-dimension Gl42:
34 mm
H-dimension Gl46:
38 mm
H-dimension Gl50:
42 mm
H-dimension Gl56:
48 mm
H-dimension Gl60:
52 mm
H-dimension Gl66:
58 mm
Delivery Unit:
10 pcs.
d)
200-0413.00-00000
Cam L45
Details
H-dimension Gl12:
7 mm
H-dimension Gl18:
13 mm
H-dimension Gl20:
15 mm
H-dimension Gl22:
17 mm
H-dimension Gl30:
25 mm
H-dimension Gl32:
27 mm
H-dimension Gl36:
31 mm
H-dimension Gl40:
35 mm
H-dimension Gl42:
37 mm
H-dimension Gl46:
41 mm
H-dimension Gl50:
45 mm
H-dimension Gl56:
51 mm
H-dimension Gl60:
55 mm
H-dimension Gl66:
61 mm
Delivery Unit:
10 pcs.
d)
200-0414.00-00000
Cam L45
Details
H-dimension Gl12:
8 mm
H-dimension Gl18:
14 mm
H-dimension Gl20:
16 mm
H-dimension Gl22:
18 mm
H-dimension Gl30:
26 mm
H-dimension Gl32:
28 mm
H-dimension Gl36:
32 mm
H-dimension Gl40:
36 mm
H-dimension Gl42:
38 mm
H-dimension Gl46:
42 mm
H-dimension Gl50:
46 mm
H-dimension Gl56:
52 mm
H-dimension Gl60:
56 mm
H-dimension Gl66:
62 mm
Delivery Unit:
10 pcs.
d)
200-0416.00-00000
Cam L45
Details
H-dimension Gl12:
10 mm
H-dimension Gl18:
16 mm
H-dimension Gl20:
18 mm
H-dimension Gl22:
20 mm
H-dimension Gl30:
28 mm
H-dimension Gl32:
30 mm
H-dimension Gl36:
34 mm
H-dimension Gl40:
38 mm
H-dimension Gl42:
40 mm
H-dimension Gl46:
44 mm
H-dimension Gl50:
48 mm
H-dimension Gl56:
54 mm
H-dimension Gl60:
58 mm
H-dimension Gl66:
64 mm
Delivery Unit:
10 pcs.
d)
200-0418.00-00000
Cam L45
Details
H-dimension Gl12:
12 mm
H-dimension Gl18:
18 mm
H-dimension Gl20:
20 mm
H-dimension Gl22:
22 mm
H-dimension Gl30:
30 mm
H-dimension Gl32:
32 mm
H-dimension Gl36:
36 mm
H-dimension Gl40:
40 mm
H-dimension Gl42:
42 mm
H-dimension Gl46:
46 mm
H-dimension Gl50:
50 mm
H-dimension Gl56:
56 mm
H-dimension Gl60:
60 mm
H-dimension Gl66:
66 mm
Delivery Unit:
10 pcs.
d)
200-0420.00-00000
Cam L45
Details
H-dimension Gl12:
14 mm
H-dimension Gl18:
20 mm
H-dimension Gl20:
22 mm
H-dimension Gl22:
24 mm
H-dimension Gl30:
32 mm
H-dimension Gl32:
34 mm
H-dimension Gl36:
38 mm
H-dimension Gl40:
42 mm
H-dimension Gl42:
44 mm
H-dimension Gl46:
48 mm
H-dimension Gl50:
52 mm
H-dimension Gl56:
58 mm
H-dimension Gl60:
62 mm
H-dimension Gl66:
68 mm
Delivery Unit:
10 pcs.
d)
200-0422.00-00000
Cam L45
Details
H-dimension Gl12:
16 mm
H-dimension Gl18:
22 mm
H-dimension Gl20:
24 mm
H-dimension Gl22:
26 mm
H-dimension Gl30:
34 mm
H-dimension Gl32:
36 mm
H-dimension Gl36:
40 mm
H-dimension Gl40:
44 mm
H-dimension Gl42:
46 mm
H-dimension Gl46:
50 mm
H-dimension Gl50:
54 mm
H-dimension Gl56:
60 mm
H-dimension Gl60:
64 mm
H-dimension Gl66:
70 mm
Delivery Unit:
10 pcs.
d)
200-0424.00-00000
Cam L45
Details
H-dimension Gl12:
18 mm
H-dimension Gl18:
24 mm
H-dimension Gl20:
26 mm
H-dimension Gl22:
28 mm
H-dimension Gl30:
36 mm
H-dimension Gl32:
38 mm
H-dimension Gl36:
42 mm
H-dimension Gl40:
46 mm
H-dimension Gl42:
48 mm
H-dimension Gl46:
52 mm
H-dimension Gl50:
56 mm
H-dimension Gl56:
62 mm
H-dimension Gl60:
66 mm
H-dimension Gl66:
72 mm
Delivery Unit:
10 pcs.
d)
200-0425.00-00000
Cam L45
Details
H-dimension Gl12:
19 mm
H-dimension Gl18:
25 mm
H-dimension Gl20:
27 mm
H-dimension Gl22:
29 mm
H-dimension Gl30:
37 mm
H-dimension Gl32:
39 mm
H-dimension Gl36:
43 mm
H-dimension Gl40:
47 mm
H-dimension Gl42:
49 mm
H-dimension Gl46:
53 mm
H-dimension Gl50:
57 mm
H-dimension Gl56:
63 mm
H-dimension Gl60:
67 mm
H-dimension Gl66:
73 mm
Delivery Unit:
10 pcs.
d)
200-0426.00-00000
Cam L45
Details
H-dimension Gl12:
20 mm
H-dimension Gl18:
26 mm
H-dimension Gl20:
28 mm
H-dimension Gl22:
30 mm
H-dimension Gl30:
38 mm
H-dimension Gl32:
40 mm
H-dimension Gl36:
44 mm
H-dimension Gl40:
48 mm
H-dimension Gl42:
50 mm
H-dimension Gl46:
54 mm
H-dimension Gl50:
58 mm
H-dimension Gl56:
64 mm
H-dimension Gl60:
68 mm
H-dimension Gl66:
74 mm
Delivery Unit:
10 pcs.
d)
200-0428.00-00000
Cam L45
Details
H-dimension Gl12:
22 mm
H-dimension Gl18:
28 mm
H-dimension Gl20:
30 mm
H-dimension Gl22:
32 mm
H-dimension Gl30:
40 mm
H-dimension Gl32:
42 mm
H-dimension Gl36:
46 mm
H-dimension Gl40:
50 mm
H-dimension Gl42:
52 mm
H-dimension Gl46:
56 mm
H-dimension Gl50:
60 mm
H-dimension Gl56:
66 mm
H-dimension Gl60:
70 mm
H-dimension Gl66:
76 mm
Delivery Unit:
10 pcs.
d)
200-0430.00-00000
Cam L45
Details
H-dimension Gl12:
24 mm
H-dimension Gl18:
30 mm
H-dimension Gl20:
32 mm
H-dimension Gl22:
34 mm
H-dimension Gl30:
42 mm
H-dimension Gl32:
44 mm
H-dimension Gl36:
48 mm
H-dimension Gl40:
52 mm
H-dimension Gl42:
54 mm
H-dimension Gl46:
58 mm
H-dimension Gl50:
62 mm
H-dimension Gl56:
68 mm
H-dimension Gl60:
72 mm
H-dimension Gl66:
78 mm
Delivery Unit:
10 pcs.
d)
200-0432.00-00000
Cam L45
Details
H-dimension Gl12:
26 mm
H-dimension Gl18:
32 mm
H-dimension Gl20:
34 mm
H-dimension Gl22:
36 mm
H-dimension Gl30:
44 mm
H-dimension Gl32:
46 mm
H-dimension Gl36:
50 mm
H-dimension Gl40:
54 mm
H-dimension Gl42:
56 mm
H-dimension Gl46:
60 mm
H-dimension Gl50:
64 mm
H-dimension Gl56:
70 mm
H-dimension Gl60:
74 mm
H-dimension Gl66:
80 mm
Delivery Unit:
10 pcs.
d)
200-0434.00-00000
Cam L45
Details
H-dimension Gl12:
28 mm
H-dimension Gl18:
34 mm
H-dimension Gl20:
36 mm
H-dimension Gl22:
38 mm
H-dimension Gl30:
46 mm
H-dimension Gl32:
48 mm
H-dimension Gl36:
52 mm
H-dimension Gl40:
56 mm
H-dimension Gl42:
58 mm
H-dimension Gl46:
62 mm
H-dimension Gl50:
66 mm
H-dimension Gl56:
72 mm
H-dimension Gl60:
76 mm
H-dimension Gl66:
82 mm
Delivery Unit:
10 pcs.
d)
200-0435.00-00000
Cam L45
Details
H-dimension Gl12:
29 mm
H-dimension Gl18:
35 mm
H-dimension Gl20:
37 mm
H-dimension Gl22:
39 mm
H-dimension Gl30:
47 mm
H-dimension Gl32:
49 mm
H-dimension Gl36:
53 mm
H-dimension Gl40:
57 mm
H-dimension Gl42:
59 mm
H-dimension Gl46:
63 mm
H-dimension Gl50:
67 mm
H-dimension Gl56:
73 mm
H-dimension Gl60:
77 mm
H-dimension Gl66:
83 mm
Delivery Unit:
10 pcs.
d)
200-0436.00-00000
Cam L45
Details
H-dimension Gl12:
30 mm
H-dimension Gl18:
36 mm
H-dimension Gl20:
38 mm
H-dimension Gl22:
40 mm
H-dimension Gl30:
48 mm
H-dimension Gl32:
50 mm
H-dimension Gl36:
54 mm
H-dimension Gl40:
58 mm
H-dimension Gl42:
60 mm
H-dimension Gl46:
64 mm
H-dimension Gl50:
68 mm
H-dimension Gl56:
74 mm
H-dimension Gl60:
78 mm
H-dimension Gl66:
84 mm
Delivery Unit:
10 pcs.
d)
200-0438.00-00000
Cam L45
Details
H-dimension Gl12:
32 mm
H-dimension Gl18:
38 mm
H-dimension Gl20:
40 mm
H-dimension Gl22:
42 mm
H-dimension Gl30:
50 mm
H-dimension Gl32:
52 mm
H-dimension Gl36:
56 mm
H-dimension Gl40:
60 mm
H-dimension Gl42:
62 mm
H-dimension Gl46:
66 mm
H-dimension Gl50:
70 mm
H-dimension Gl56:
76 mm
H-dimension Gl60:
80 mm
H-dimension Gl66:
86 mm
Delivery Unit:
10 pcs.
d)
200-0440.00-00000
Cam L45
Details
H-dimension Gl12:
34 mm
H-dimension Gl18:
40 mm
H-dimension Gl20:
42 mm
H-dimension Gl22:
44 mm
H-dimension Gl30:
52 mm
H-dimension Gl32:
54 mm
H-dimension Gl36:
58 mm
H-dimension Gl40:
62 mm
H-dimension Gl42:
64 mm
H-dimension Gl46:
68 mm
H-dimension Gl50:
72 mm
H-dimension Gl56:
78 mm
H-dimension Gl60:
82 mm
H-dimension Gl66:
88 mm
Delivery Unit:
10 pcs.
d)
200-0442.00-00000
Cam L45
Details
H-dimension Gl12:
36 mm
H-dimension Gl18:
42 mm
H-dimension Gl20:
44 mm
H-dimension Gl22:
46 mm
H-dimension Gl30:
54 mm
H-dimension Gl32:
56 mm
H-dimension Gl36:
60 mm
H-dimension Gl40:
64 mm
H-dimension Gl42:
66 mm
H-dimension Gl46:
70 mm
H-dimension Gl50:
74 mm
H-dimension Gl56:
80 mm
H-dimension Gl60:
84 mm
H-dimension Gl66:
90 mm
Delivery Unit:
10 pcs.
d)
200-0444.00-00000
Cam L45
Details
H-dimension Gl12:
38 mm
H-dimension Gl18:
44 mm
H-dimension Gl20:
46 mm
H-dimension Gl22:
48 mm
H-dimension Gl30:
56 mm
H-dimension Gl32:
58 mm
H-dimension Gl36:
62 mm
H-dimension Gl40:
66 mm
H-dimension Gl42:
68 mm
H-dimension Gl46:
72 mm
H-dimension Gl50:
76 mm
H-dimension Gl56:
82 mm
H-dimension Gl60:
86 mm
H-dimension Gl66:
92 mm
Delivery Unit:
10 pcs.
d)
200-0445.00-00000
Cam L45
Details
H-dimension Gl12:
39 mm
H-dimension Gl18:
45 mm
H-dimension Gl20:
47 mm
H-dimension Gl22:
49 mm
H-dimension Gl30:
57 mm
H-dimension Gl32:
59 mm
H-dimension Gl36:
63 mm
H-dimension Gl40:
67 mm
H-dimension Gl42:
69 mm
H-dimension Gl46:
73 mm
H-dimension Gl50:
77 mm
H-dimension Gl56:
83 mm
H-dimension Gl60:
87 mm
H-dimension Gl66:
93 mm
Delivery Unit:
10 pcs.
d)
200-0447.00-00000
Cam L45
Details
H-dimension Gl12:
41 mm
H-dimension Gl18:
47 mm
H-dimension Gl20:
49 mm
H-dimension Gl22:
51 mm
H-dimension Gl30:
59 mm
H-dimension Gl32:
61 mm
H-dimension Gl36:
65 mm
H-dimension Gl40:
69 mm
H-dimension Gl42:
71 mm
H-dimension Gl46:
75 mm
H-dimension Gl50:
79 mm
H-dimension Gl56:
85 mm
H-dimension Gl60:
89 mm
H-dimension Gl66:
95 mm
Delivery Unit:
10 pcs.
d)
200-0450.00-00000
Cam L45
Details
H-dimension Gl12:
44 mm
H-dimension Gl18:
50 mm
H-dimension Gl20:
52 mm
H-dimension Gl22:
54 mm
H-dimension Gl30:
62 mm
H-dimension Gl32:
64 mm
H-dimension Gl36:
68 mm
H-dimension Gl40:
72 mm
H-dimension Gl42:
74 mm
H-dimension Gl46:
78 mm
H-dimension Gl50:
82 mm
H-dimension Gl56:
88 mm
H-dimension Gl60:
92 mm
H-dimension Gl66:
98 mm
Delivery Unit:
10 pcs.
d)
200-0453.00-00000
Cam L45
Details
H-dimension Gl12:
47 mm
H-dimension Gl18:
53 mm
H-dimension Gl20:
55 mm
H-dimension Gl22:
57 mm
H-dimension Gl30:
65 mm
H-dimension Gl32:
67 mm
H-dimension Gl36:
71 mm
H-dimension Gl40:
75 mm
H-dimension Gl42:
77 mm
H-dimension Gl46:
81 mm
H-dimension Gl50:
85 mm
H-dimension Gl56:
91 mm
H-dimension Gl60:
95 mm
H-dimension Gl66:
101 mm
Delivery Unit:
10 pcs.
d)
200-0455.00-00000
Cam L45
Details
H-dimension Gl12:
49 mm
H-dimension Gl18:
55 mm
H-dimension Gl20:
57 mm
H-dimension Gl22:
59 mm
H-dimension Gl30:
67 mm
H-dimension Gl32:
69 mm
H-dimension Gl36:
73 mm
H-dimension Gl40:
77 mm
H-dimension Gl42:
79 mm
H-dimension Gl46:
83 mm
H-dimension Gl50:
87 mm
H-dimension Gl56:
93 mm
H-dimension Gl60:
97 mm
H-dimension Gl66:
103 mm
Delivery Unit:
10 pcs.
d)
200-0606.00-00000
Cam L35
Details
H-dimension Gl12:
H-dimension Gl18:
6 mm
H-dimension Gl20:
8 mm
H-dimension Gl22:
10 mm
H-dimension Gl30:
18 mm
H-dimension Gl32:
20 mm
H-dimension Gl36:
24 mm
H-dimension Gl40:
28 mm
H-dimension Gl42:
30 mm
H-dimension Gl46:
34 mm
H-dimension Gl50:
38 mm
H-dimension Gl56:
44 mm
H-dimension Gl60:
48 mm
H-dimension Gl66:
54 mm
Delivery Unit:
10 pcs.
d)
200-0608.00-00000
Cam L35
Details
H-dimension Gl12:
H-dimension Gl18:
8 mm
H-dimension Gl20:
10 mm
H-dimension Gl22:
12 mm
H-dimension Gl30:
20 mm
H-dimension Gl32:
22 mm
H-dimension Gl36:
26 mm
H-dimension Gl40:
30 mm
H-dimension Gl42:
32 mm
H-dimension Gl46:
36 mm
H-dimension Gl50:
40 mm
H-dimension Gl56:
46 mm
H-dimension Gl60:
50 mm
H-dimension Gl66:
56 mm
Delivery Unit:
10 pcs.
d)
200-0610.00-00000
Cam L35
Details
H-dimension Gl12:
H-dimension Gl18:
10 mm
H-dimension Gl20:
12 mm
H-dimension Gl22:
14 mm
H-dimension Gl30:
22 mm
H-dimension Gl32:
24 mm
H-dimension Gl36:
28 mm
H-dimension Gl40:
32 mm
H-dimension Gl42:
34 mm
H-dimension Gl46:
38 mm
H-dimension Gl50:
42 mm
H-dimension Gl56:
48 mm
H-dimension Gl60:
52 mm
H-dimension Gl66:
58 mm
Delivery Unit:
10 pcs.
d)
200-0613.00-00000
Cam L35
Details
H-dimension Gl12:
7 mm
H-dimension Gl18:
13 mm
H-dimension Gl20:
15 mm
H-dimension Gl22:
17 mm
H-dimension Gl30:
25 mm
H-dimension Gl32:
27 mm
H-dimension Gl36:
31 mm
H-dimension Gl40:
35 mm
H-dimension Gl42:
37 mm
H-dimension Gl46:
41 mm
H-dimension Gl50:
45 mm
H-dimension Gl56:
51 mm
H-dimension Gl60:
55 mm
H-dimension Gl66:
61 mm
Delivery Unit:
10 pcs.
d)
200-0614.00-00000
Cam L35
Details
H-dimension Gl12:
8 mm
H-dimension Gl18:
14 mm
H-dimension Gl20:
16 mm
H-dimension Gl22:
18 mm
H-dimension Gl30:
26 mm
H-dimension Gl32:
28 mm
H-dimension Gl36:
32 mm
H-dimension Gl40:
36 mm
H-dimension Gl42:
38 mm
H-dimension Gl46:
42 mm
H-dimension Gl50:
46 mm
H-dimension Gl56:
52 mm
H-dimension Gl60:
56 mm
H-dimension Gl66:
62 mm
Delivery Unit:
10 pcs.
d)
200-0616.00-00000
Cam L35
Details
H-dimension Gl12:
10 mm
H-dimension Gl18:
16 mm
H-dimension Gl20:
18 mm
H-dimension Gl22:
20 mm
H-dimension Gl30:
28 mm
H-dimension Gl32:
30 mm
H-dimension Gl36:
34 mm
H-dimension Gl40:
38 mm
H-dimension Gl42:
40 mm
H-dimension Gl46:
44 mm
H-dimension Gl50:
48 mm
H-dimension Gl56:
54 mm
H-dimension Gl60:
58 mm
H-dimension Gl66:
64 mm
Delivery Unit:
10 pcs.
d)
200-0618.00-00000
Cam L35
Details
H-dimension Gl12:
12 mm
H-dimension Gl18:
18 mm
H-dimension Gl20:
20 mm
H-dimension Gl22:
22 mm
H-dimension Gl30:
30 mm
H-dimension Gl32:
32 mm
H-dimension Gl36:
36 mm
H-dimension Gl40:
40 mm
H-dimension Gl42:
42 mm
H-dimension Gl46:
46 mm
H-dimension Gl50:
50 mm
H-dimension Gl56:
56 mm
H-dimension Gl60:
60 mm
H-dimension Gl66:
66 mm
Delivery Unit:
10 pcs.
d)
200-0620.00-00000
Cam L35
Details
H-dimension Gl12:
14 mm
H-dimension Gl18:
20 mm
H-dimension Gl20:
22 mm
H-dimension Gl22:
24 mm
H-dimension Gl30:
32 mm
H-dimension Gl32:
34 mm
H-dimension Gl36:
38 mm
H-dimension Gl40:
42 mm
H-dimension Gl42:
44 mm
H-dimension Gl46:
48 mm
H-dimension Gl50:
52 mm
H-dimension Gl56:
58 mm
H-dimension Gl60:
62 mm
H-dimension Gl66:
68 mm
Delivery Unit:
10 pcs.
d)
200-0622.00-00000
Cam L35
Details
H-dimension Gl12:
16 mm
H-dimension Gl18:
22 mm
H-dimension Gl20:
24 mm
H-dimension Gl22:
26 mm
H-dimension Gl30:
34 mm
H-dimension Gl32:
36 mm
H-dimension Gl36:
40 mm
H-dimension Gl40:
44 mm
H-dimension Gl42:
46 mm
H-dimension Gl46:
50 mm
H-dimension Gl50:
54 mm
H-dimension Gl56:
60 mm
H-dimension Gl60:
64 mm
H-dimension Gl66:
70 mm
Delivery Unit:
10 pcs.
d)
200-0624.00-00000
Cam L35
Details
H-dimension Gl12:
18 mm
H-dimension Gl18:
24 mm
H-dimension Gl20:
26 mm
H-dimension Gl22:
28 mm
H-dimension Gl30:
36 mm
H-dimension Gl32:
38 mm
H-dimension Gl36:
42 mm
H-dimension Gl40:
46 mm
H-dimension Gl42:
48 mm
H-dimension Gl46:
52 mm
H-dimension Gl50:
56 mm
H-dimension Gl56:
62 mm
H-dimension Gl60:
66 mm
H-dimension Gl66:
72 mm
Delivery Unit:
10 pcs.
d)
200-0625.00-00000
Cam L35
Details
H-dimension Gl12:
19 mm
H-dimension Gl18:
25 mm
H-dimension Gl20:
27 mm
H-dimension Gl22:
29 mm
H-dimension Gl30:
37 mm
H-dimension Gl32:
39 mm
H-dimension Gl36:
43 mm
H-dimension Gl40:
47 mm
H-dimension Gl42:
49 mm
H-dimension Gl46:
53 mm
H-dimension Gl50:
57 mm
H-dimension Gl56:
63 mm
H-dimension Gl60:
67 mm
H-dimension Gl66:
73 mm
Delivery Unit:
10 pcs.
d)
200-0626.00-00000
Cam L35
Details
H-dimension Gl12:
20 mm
H-dimension Gl18:
26 mm
H-dimension Gl20:
28 mm
H-dimension Gl22:
30 mm
H-dimension Gl30:
38 mm
H-dimension Gl32:
40 mm
H-dimension Gl36:
44 mm
H-dimension Gl40:
48 mm
H-dimension Gl42:
50 mm
H-dimension Gl46:
54 mm
H-dimension Gl50:
58 mm
H-dimension Gl56:
64 mm
H-dimension Gl60:
68 mm
H-dimension Gl66:
74 mm
Delivery Unit:
10 pcs.
d)
200-0628.00-00000
Cam L35
Details
H-dimension Gl12:
22 mm
H-dimension Gl18:
28 mm
H-dimension Gl20:
30 mm
H-dimension Gl22:
32 mm
H-dimension Gl30:
40 mm
H-dimension Gl32:
42 mm
H-dimension Gl36:
46 mm
H-dimension Gl40:
50 mm
H-dimension Gl42:
52 mm
H-dimension Gl46:
56 mm
H-dimension Gl50:
60 mm
H-dimension Gl56:
66 mm
H-dimension Gl60:
70 mm
H-dimension Gl66:
76 mm
Delivery Unit:
10 pcs.
d)
200-0630.00-00000
Cam L35
Details
H-dimension Gl12:
24 mm
H-dimension Gl18:
30 mm
H-dimension Gl20:
32 mm
H-dimension Gl22:
34 mm
H-dimension Gl30:
42 mm
H-dimension Gl32:
44 mm
H-dimension Gl36:
48 mm
H-dimension Gl40:
52 mm
H-dimension Gl42:
54 mm
H-dimension Gl46:
58 mm
H-dimension Gl50:
62 mm
H-dimension Gl56:
68 mm
H-dimension Gl60:
72 mm
H-dimension Gl66:
78 mm
Delivery Unit:
10 pcs.
d)
200-0635.00-00000
Cam L35
Details
H-dimension Gl12:
29 mm
H-dimension Gl18:
35 mm
H-dimension Gl20:
37 mm
H-dimension Gl22:
39 mm
H-dimension Gl30:
47 mm
H-dimension Gl32:
49 mm
H-dimension Gl36:
53 mm
H-dimension Gl40:
57 mm
H-dimension Gl42:
59 mm
H-dimension Gl46:
63 mm
H-dimension Gl50:
67 mm
H-dimension Gl56:
73 mm
H-dimension Gl60:
77 mm
H-dimension Gl66:
83 mm
Delivery Unit:
10 pcs.
d)
200-0638.00-00000
Cam L35
Details
H-dimension Gl12:
32 mm
H-dimension Gl18:
38 mm
H-dimension Gl20:
40 mm
H-dimension Gl22:
42 mm
H-dimension Gl30:
50 mm
H-dimension Gl32:
52 mm
H-dimension Gl36:
56 mm
H-dimension Gl40:
60 mm
H-dimension Gl42:
62 mm
H-dimension Gl46:
66 mm
H-dimension Gl50:
70 mm
H-dimension Gl56:
76 mm
H-dimension Gl60:
80 mm
H-dimension Gl66:
86 mm
Delivery Unit:
10 pcs.
d)
200-0640.00-00000
Cam L35
Details
H-dimension Gl12:
34 mm
H-dimension Gl18:
40 mm
H-dimension Gl20:
42 mm
H-dimension Gl22:
44 mm
H-dimension Gl30:
52 mm
H-dimension Gl32:
54 mm
H-dimension Gl36:
58 mm
H-dimension Gl40:
62 mm
H-dimension Gl42:
64 mm
H-dimension Gl46:
68 mm
H-dimension Gl50:
72 mm
H-dimension Gl56:
78 mm
H-dimension Gl60:
82 mm
H-dimension Gl66:
88 mm
Delivery Unit:
10 pcs.
d)
200-0642.00-00000
Cam L35
Details
H-dimension Gl12:
36 mm
H-dimension Gl18:
42 mm
H-dimension Gl20:
44 mm
H-dimension Gl22:
46 mm
H-dimension Gl30:
54 mm
H-dimension Gl32:
56 mm
H-dimension Gl36:
60 mm
H-dimension Gl40:
64 mm
H-dimension Gl42:
66 mm
H-dimension Gl46:
70 mm
H-dimension Gl50:
74 mm
H-dimension Gl56:
80 mm
H-dimension Gl60:
84 mm
H-dimension Gl66:
90 mm
Delivery Unit:
10 pcs.
d)
200-0644.00-00000
Cam L35
Details
H-dimension Gl12:
38 mm
H-dimension Gl18:
44 mm
H-dimension Gl20:
46 mm
H-dimension Gl22:
48 mm
H-dimension Gl30:
56 mm
H-dimension Gl32:
58 mm
H-dimension Gl36:
62 mm
H-dimension Gl40:
66 mm
H-dimension Gl42:
68 mm
H-dimension Gl46:
72 mm
H-dimension Gl50:
76 mm
H-dimension Gl56:
82 mm
H-dimension Gl60:
86 mm
H-dimension Gl66:
92 mm
Delivery Unit:
10 pcs.
d)
200-9504.00-00000
3-point cam
Details
H-dimension Gl12:
H-dimension Gl18:
4 mm
H-dimension Gl20:
6 mm
H-dimension Gl22:
8 mm
H-dimension Gl30:
16 mm
H-dimension Gl32:
18 mm
H-dimension Gl36:
22 mm
H-dimension Gl40:
26 mm
H-dimension Gl42:
28 mm
H-dimension Gl46:
32 mm
H-dimension Gl50:
36 mm
H-dimension Gl56:
42 mm
H-dimension Gl60:
46 mm
H-dimension Gl66:
52 mm
Delivery Unit:
1 pc.
d)
200-9506.00-00000
3-point cam
Details
H-dimension Gl12:
H-dimension Gl18:
6 mm
H-dimension Gl20:
8 mm
H-dimension Gl22:
10 mm
H-dimension Gl30:
18 mm
H-dimension Gl32:
20 mm
H-dimension Gl36:
24 mm
H-dimension Gl40:
28 mm
H-dimension Gl42:
30 mm
H-dimension Gl46:
34 mm
H-dimension Gl50:
38 mm
H-dimension Gl56:
44 mm
H-dimension Gl60:
48 mm
H-dimension Gl66:
54 mm
Delivery Unit:
1 pc.
d)
200-9508.00-00000
3-point cam
Details
H-dimension Gl12:
H-dimension Gl18:
8 mm
H-dimension Gl20:
10 mm
H-dimension Gl22:
12 mm
H-dimension Gl30:
20 mm
H-dimension Gl32:
22 mm
H-dimension Gl36:
26 mm
H-dimension Gl40:
30 mm
H-dimension Gl42:
32 mm
H-dimension Gl46:
36 mm
H-dimension Gl50:
40 mm
H-dimension Gl56:
46 mm
H-dimension Gl60:
50 mm
H-dimension Gl66:
56 mm
Delivery Unit:
1 pc.
d)
200-9510.00-00000
3-point cam
Details
H-dimension Gl12:
H-dimension Gl18:
10 mm
H-dimension Gl20:
12 mm
H-dimension Gl22:
14 mm
H-dimension Gl30:
22 mm
H-dimension Gl32:
24 mm
H-dimension Gl36:
28 mm
H-dimension Gl40:
32 mm
H-dimension Gl42:
34 mm
H-dimension Gl46:
38 mm
H-dimension Gl50:
42 mm
H-dimension Gl56:
48 mm
H-dimension Gl60:
52 mm
H-dimension Gl66:
58 mm
Delivery Unit:
1 pc.
d)
200-9513.00-00000
3-point cam
Details
H-dimension Gl12:
7 mm
H-dimension Gl18:
13 mm
H-dimension Gl20:
15 mm
H-dimension Gl22:
17 mm
H-dimension Gl30:
25 mm
H-dimension Gl32:
27 mm
H-dimension Gl36:
31 mm
H-dimension Gl40:
35 mm
H-dimension Gl42:
37 mm
H-dimension Gl46:
41 mm
H-dimension Gl50:
45 mm
H-dimension Gl56:
51 mm
H-dimension Gl60:
55 mm
H-dimension Gl66:
61 mm
Delivery Unit:
1 pc.
d)
200-9514.00-00000
3-point cam
Details
H-dimension Gl12:
8 mm
H-dimension Gl18:
14 mm
H-dimension Gl20:
16 mm
H-dimension Gl22:
18 mm
H-dimension Gl30:
26 mm
H-dimension Gl32:
28 mm
H-dimension Gl36:
32 mm
H-dimension Gl40:
36 mm
H-dimension Gl42:
38 mm
H-dimension Gl46:
42 mm
H-dimension Gl50:
46 mm
H-dimension Gl56:
52 mm
H-dimension Gl60:
56 mm
H-dimension Gl66:
62 mm
Delivery Unit:
1 pc.
d)
200-9516.00-00000
3-point cam
Details
H-dimension Gl12:
10 mm
H-dimension Gl18:
16 mm
H-dimension Gl20:
18 mm
H-dimension Gl22:
20 mm
H-dimension Gl30:
28 mm
H-dimension Gl32:
30 mm
H-dimension Gl36:
34 mm
H-dimension Gl40:
38 mm
H-dimension Gl42:
40 mm
H-dimension Gl46:
44 mm
H-dimension Gl50:
48 mm
H-dimension Gl56:
54 mm
H-dimension Gl60:
58 mm
H-dimension Gl66:
64 mm
Delivery Unit:
1 pc.
d)
200-9518.00-00000
3-point cam
Details
H-dimension Gl12:
12 mm
H-dimension Gl18:
18 mm
H-dimension Gl20:
20 mm
H-dimension Gl22:
22 mm
H-dimension Gl30:
30 mm
H-dimension Gl32:
32 mm
H-dimension Gl36:
36 mm
H-dimension Gl40:
40 mm
H-dimension Gl42:
42 mm
H-dimension Gl46:
46 mm
H-dimension Gl50:
50 mm
H-dimension Gl56:
56 mm
H-dimension Gl60:
60 mm
H-dimension Gl66:
66 mm
Delivery Unit:
1 pc.
d)
200-9520.00-00000
3-point cam
Details
H-dimension Gl12:
14 mm
H-dimension Gl18:
20 mm
H-dimension Gl20:
22 mm
H-dimension Gl22:
24 mm
H-dimension Gl30:
32 mm
H-dimension Gl32:
34 mm
H-dimension Gl36:
38 mm
H-dimension Gl40:
42 mm
H-dimension Gl42:
44 mm
H-dimension Gl46:
48 mm
H-dimension Gl50:
52 mm
H-dimension Gl56:
58 mm
H-dimension Gl60:
62 mm
H-dimension Gl66:
68 mm
Delivery Unit:
1 pc.
d)
200-9522.00-00000
3-point cam
Details
H-dimension Gl12:
16 mm
H-dimension Gl18:
22 mm
H-dimension Gl20:
24 mm
H-dimension Gl22:
26 mm
H-dimension Gl30:
34 mm
H-dimension Gl32:
36 mm
H-dimension Gl36:
40 mm
H-dimension Gl40:
44 mm
H-dimension Gl42:
46 mm
H-dimension Gl46:
50 mm
H-dimension Gl50:
54 mm
H-dimension Gl56:
60 mm
H-dimension Gl60:
64 mm
H-dimension Gl66:
70 mm
Delivery Unit:
1 pc.
d)
200-9524.00-00000
3-point cam
Details
H-dimension Gl12:
18 mm
H-dimension Gl18:
24 mm
H-dimension Gl20:
26 mm
H-dimension Gl22:
28 mm
H-dimension Gl30:
36 mm
H-dimension Gl32:
38 mm
H-dimension Gl36:
42 mm
H-dimension Gl40:
46 mm
H-dimension Gl42:
48 mm
H-dimension Gl46:
52 mm
H-dimension Gl50:
56 mm
H-dimension Gl56:
62 mm
H-dimension Gl60:
66 mm
H-dimension Gl66:
72 mm
Delivery Unit:
1 pc.
d)
200-9525.00-00000
3-point cam
Details
H-dimension Gl12:
19 mm
H-dimension Gl18:
25 mm
H-dimension Gl20:
27 mm
H-dimension Gl22:
29 mm
H-dimension Gl30:
37 mm
H-dimension Gl32:
39 mm
H-dimension Gl36:
43 mm
H-dimension Gl40:
47 mm
H-dimension Gl42:
49 mm
H-dimension Gl46:
53 mm
H-dimension Gl50:
57 mm
H-dimension Gl56:
63 mm
H-dimension Gl60:
67 mm
H-dimension Gl66:
73 mm
Delivery Unit:
1 pc.
d)
200-9526.00-00000
3-point cam
Details
H-dimension Gl12:
20 mm
H-dimension Gl18:
26 mm
H-dimension Gl20:
28 mm
H-dimension Gl22:
30 mm
H-dimension Gl30:
38 mm
H-dimension Gl32:
40 mm
H-dimension Gl36:
44 mm
H-dimension Gl40:
48 mm
H-dimension Gl42:
50 mm
H-dimension Gl46:
54 mm
H-dimension Gl50:
58 mm
H-dimension Gl56:
64 mm
H-dimension Gl60:
68 mm
H-dimension Gl66:
74 mm
Delivery Unit:
1 pc.
d)
200-9528.00-00000
3-point cam
Details
H-dimension Gl12:
22 mm
H-dimension Gl18:
28 mm
H-dimension Gl20:
30 mm
H-dimension Gl22:
32 mm
H-dimension Gl30:
40 mm
H-dimension Gl32:
42 mm
H-dimension Gl36:
46 mm
H-dimension Gl40:
50 mm
H-dimension Gl42:
52 mm
H-dimension Gl46:
56 mm
H-dimension Gl50:
60 mm
H-dimension Gl56:
66 mm
H-dimension Gl60:
70 mm
H-dimension Gl66:
76 mm
Delivery Unit:
1 pc.
d)
200-9530.00-00000
3-point cam
Details
H-dimension Gl12:
24 mm
H-dimension Gl18:
30 mm
H-dimension Gl20:
32 mm
H-dimension Gl22:
34 mm
H-dimension Gl30:
42 mm
H-dimension Gl32:
44 mm
H-dimension Gl36:
48 mm
H-dimension Gl40:
52 mm
H-dimension Gl42:
54 mm
H-dimension Gl46:
58 mm
H-dimension Gl50:
62 mm
H-dimension Gl56:
68 mm
H-dimension Gl60:
72 mm
H-dimension Gl66:
78 mm
Delivery Unit:
1 pc.
d)
200-9532.00-00000
3-point cam
Details
H-dimension Gl12:
26 mm
H-dimension Gl18:
32 mm
H-dimension Gl20:
34 mm
H-dimension Gl22:
36 mm
H-dimension Gl30:
44 mm
H-dimension Gl32:
46 mm
H-dimension Gl36:
50 mm
H-dimension Gl40:
54 mm
H-dimension Gl42:
56 mm
H-dimension Gl46:
60 mm
H-dimension Gl50:
64 mm
H-dimension Gl56:
70 mm
H-dimension Gl60:
74 mm
H-dimension Gl66:
80 mm
Delivery Unit:
1 pc.
d)
200-9534.00-00000
3-point cam
Details
H-dimension Gl12:
28 mm
H-dimension Gl18:
34 mm
H-dimension Gl20:
36 mm
H-dimension Gl22:
38 mm
H-dimension Gl30:
46 mm
H-dimension Gl32:
48 mm
H-dimension Gl36:
52 mm
H-dimension Gl40:
56 mm
H-dimension Gl42:
58 mm
H-dimension Gl46:
62 mm
H-dimension Gl50:
66 mm
H-dimension Gl56:
72 mm
H-dimension Gl60:
76 mm
H-dimension Gl66:
82 mm
Delivery Unit:
1 pc.
d)
200-9535.00-00000
3-point cam
Details
H-dimension Gl12:
29 mm
H-dimension Gl18:
35 mm
H-dimension Gl20:
37 mm
H-dimension Gl22:
39 mm
H-dimension Gl30:
47 mm
H-dimension Gl32:
49 mm
H-dimension Gl36:
53 mm
H-dimension Gl40:
57 mm
H-dimension Gl42:
59 mm
H-dimension Gl46:
63 mm
H-dimension Gl50:
67 mm
H-dimension Gl56:
73 mm
H-dimension Gl60:
77 mm
H-dimension Gl66:
83 mm
Delivery Unit:
1 pc.
d)
200-9536.00-00000
3-point cam
Details
H-dimension Gl12:
30 mm
H-dimension Gl18:
36 mm
H-dimension Gl20:
38 mm
H-dimension Gl22:
40 mm
H-dimension Gl30:
48 mm
H-dimension Gl32:
50 mm
H-dimension Gl36:
54 mm
H-dimension Gl40:
58 mm
H-dimension Gl42:
60 mm
H-dimension Gl46:
64 mm
H-dimension Gl50:
68 mm
H-dimension Gl56:
74 mm
H-dimension Gl60:
78 mm
H-dimension Gl66:
84 mm
Delivery Unit:
1 pc.
d)
200-9538.00-00000
3-point cam
Details
H-dimension Gl12:
32 mm
H-dimension Gl18:
38 mm
H-dimension Gl20:
40 mm
H-dimension Gl22:
42 mm
H-dimension Gl30:
50 mm
H-dimension Gl32:
52 mm
H-dimension Gl36:
56 mm
H-dimension Gl40:
60 mm
H-dimension Gl42:
62 mm
H-dimension Gl46:
66 mm
H-dimension Gl50:
70 mm
H-dimension Gl56:
76 mm
H-dimension Gl60:
80 mm
H-dimension Gl66:
86 mm
Delivery Unit:
1 pc.
d)
200-9540.00-00000
3-point cam
Details
H-dimension Gl12:
34 mm
H-dimension Gl18:
40 mm
H-dimension Gl20:
42 mm
H-dimension Gl22:
44 mm
H-dimension Gl30:
52 mm
H-dimension Gl32:
54 mm
H-dimension Gl36:
58 mm
H-dimension Gl40:
62 mm
H-dimension Gl42:
64 mm
H-dimension Gl46:
68 mm
H-dimension Gl50:
72 mm
H-dimension Gl56:
78 mm
H-dimension Gl60:
82 mm
H-dimension Gl66:
88 mm
Delivery Unit:
1 pc.
d)
200-9542.00-00000
3-point cam
Details
H-dimension Gl12:
36 mm
H-dimension Gl18:
42 mm
H-dimension Gl20:
44 mm
H-dimension Gl22:
46 mm
H-dimension Gl30:
54 mm
H-dimension Gl32:
56 mm
H-dimension Gl36:
60 mm
H-dimension Gl40:
64 mm
H-dimension Gl42:
66 mm
H-dimension Gl46:
70 mm
H-dimension Gl50:
74 mm
H-dimension Gl56:
80 mm
H-dimension Gl60:
84 mm
H-dimension Gl66:
90 mm
Delivery Unit:
1 pc.
d)
200-9544.00-00000
3-point cam
Details
H-dimension Gl12:
38 mm
H-dimension Gl18:
44 mm
H-dimension Gl20:
46 mm
H-dimension Gl22:
48 mm
H-dimension Gl30:
56 mm
H-dimension Gl32:
58 mm
H-dimension Gl36:
62 mm
H-dimension Gl40:
66 mm
H-dimension Gl42:
68 mm
H-dimension Gl46:
72 mm
H-dimension Gl50:
76 mm
H-dimension Gl56:
82 mm
H-dimension Gl60:
86 mm
H-dimension Gl66:
92 mm
Delivery Unit:
1 pc.
d)
200-9545.00-00000
3-point cam 2 parts
Details
H-dimension Gl12:
39 mm
H-dimension Gl18:
45 mm
H-dimension Gl20:
47 mm
H-dimension Gl22:
49 mm
H-dimension Gl30:
57 mm
H-dimension Gl32:
59 mm
H-dimension Gl36:
63 mm
H-dimension Gl40:
67 mm
H-dimension Gl42:
69 mm
H-dimension Gl46:
73 mm
H-dimension Gl50:
77 mm
H-dimension Gl56:
83 mm
H-dimension Gl60:
87 mm
H-dimension Gl66:
93 mm
Delivery Unit:
1 pc.
d)
200-9547.00-00000
3-point cam 2 parts
Details
H-dimension Gl12:
41 mm
H-dimension Gl18:
47 mm
H-dimension Gl20:
49 mm
H-dimension Gl22:
51 mm
H-dimension Gl30:
59 mm
H-dimension Gl32:
61 mm
H-dimension Gl36:
65 mm
H-dimension Gl40:
69 mm
H-dimension Gl42:
71 mm
H-dimension Gl46:
75 mm
H-dimension Gl50:
79 mm
H-dimension Gl56:
85 mm
H-dimension Gl60:
89 mm
H-dimension Gl66:
95 mm
Delivery Unit:
1 pc.
d)
200-9550.00-00000
3-point cam 2 parts
Details
H-dimension Gl12:
44 mm
H-dimension Gl18:
50 mm
H-dimension Gl20:
52 mm
H-dimension Gl22:
54 mm
H-dimension Gl30:
62 mm
H-dimension Gl32:
64 mm
H-dimension Gl36:
68 mm
H-dimension Gl40:
72 mm
H-dimension Gl42:
74 mm
H-dimension Gl46:
78 mm
H-dimension Gl50:
82 mm
H-dimension Gl56:
88 mm
H-dimension Gl60:
92 mm
H-dimension Gl66:
98 mm
Delivery Unit:
1 pc.
d)
200-9599.00-00000
2-point cam
d)
200-5118.00-00000
Cam with ramp
Details
H-dimension:
18 mm
Ramp:
3mm
Length:
25 mm
Stop:
Yes
Delivery Unit:
10 pcs.
d)
200-4018.00-00000
Cam with ramp
Details
H-dimension:
18 mm
Ramp:
6mm
Length:
45 mm
Stop:
Yes
Delivery Unit:
10 pcs.
d)
200-4022.00-00000
Cam with ramp
Details
H-dimension:
22 mm
Ramp:
6mm
Length:
45 mm
Stop:
Yes
Delivery Unit:
10 pcs.
d)
200-44LL.00-Hxxmm
Cam, variable, with ramp
d)
200-54LL.00-Hxxmm
Cam, variable, without ramp
e)+f)
108-0916.15-00300
Flat rod, length 300mm
Details
Name:
Flat rod, length 300mm
Rod dimension WxH:
14 x 3 mm
Rod diameter Ø:
Delivery Unit:
1 pc.
e)+f)
108-0916.15-00400
Flat rod, length 400mm
Details
Name:
Flat rod, length 400mm
Rod dimension WxH:
14 x 3 mm
Rod diameter Ø:
Delivery Unit:
1 pc.
e)+f)
108-0916.15-00500
Flat rod, length 500mm
Details
Name:
Flat rod, length 500mm
Rod dimension WxH:
14 x 3 mm
Rod diameter Ø:
Delivery Unit:
1 pc.
e)+f)
108-0916.15-00600
Flat rod, length 600mm
Details
Name:
Flat rod, length 600mm
Rod dimension WxH:
14 x 3 mm
Rod diameter Ø:
Delivery Unit:
1 pc.
e)+f)
108-0916.15-00700
Flat rod, length 700mm
Details
Name:
Flat rod, length 700mm
Rod dimension WxH:
14 x 3 mm
Rod diameter Ø:
Delivery Unit:
1 pc.
e)+f)
201-0212.00-00293
Round rod, length 298mm
Details
Name:
Round rod, length 298mm
Rod dimension WxH:
Rod diameter Ø:
8 mm
Delivery Unit:
1 pc.
e)+f)
201-0212.00-00493
Round rod, length 498mm
Details
Name:
Round rod, length 498mm
Rod dimension WxH:
Rod diameter Ø:
8 mm
Delivery Unit:
1 pc.
e)+f)
201-0212.00-00593
Round rod, length 598mm
Details
Name:
Round rod, length 598mm
Rod dimension WxH:
Rod diameter Ø:
8 mm
Delivery Unit:
1 pc.
e)+f)
201-0212.00-00693
Round rod, length 698mm
Details
Name:
Round rod, length 698mm
Rod dimension WxH:
Rod diameter Ø:
8 mm
Delivery Unit:
1 pc.
e)+f)
201-0170.15-Lxxmm
Round rod with 2 eyes for compression rod latch, straight
Details
Name:
Round rod with 2 eyes for compression rod latch, straight
Eye:
Ø 5.1mm
Rod diameter Ø:
8 mm
Delivery Unit:
1 pc.
e)+f)
201-0172.15-Lxxmm
Round rods with 2 eyes for compression rod latch, cranked
Details
Name:
Round rods with 2 eyes for compression rod latch, cranked
Eye:
Ø 5.1mm
Rod diameter Ø:
8 mm
Delivery Unit:
1 pc.
e)+f)
201-0171.15-Lxxmm
Round rod with 2 eyes for compression rod latch, straight
Details
Name:
Round rod with 2 eyes for compression rod latch, straight
Eye:
M5
Rod diameter Ø:
8 mm
Delivery Unit:
1 pc.
e)+f)
201-0173.15-Lxxmm
Round rod with 2 eyes for compression rod latch, cranked
Details
Name:
Round rod with 2 eyes for compression rod latch, cranked
Eye:
M5
Rod diameter Ø:
8 mm
Delivery Unit:
1 pc.
f)
201-0102.00-00000
Round rod 400mm
Details
Version:
with eye
Length:
400 mm
variable length:
Delivery Unit:
1 pc.
f)
201-0103.00-00000
Round rod 500mm
Details
Version:
with eye
Length:
500 mm
variable length:
Delivery Unit:
1 pc.
f)
201-0104.00-00000
Round rod 600mm
Details
Version:
with eye
Length:
600 mm
variable length:
Delivery Unit:
1 pc.
f)
201-0105.00-00000
Round rod 700mm
Details
Version:
with eye
Length:
700 mm
variable length:
Delivery Unit:
1 pc.
f)
201-0106.00-00000
Round rod 800mm
Details
Version:
with eye
Length:
800 mm
variable length:
Delivery Unit:
1 pc.
f)
201-0107.00-00000
Round rod 900mm
Details
Version:
with eye
Length:
900 mm
variable length:
Delivery Unit:
1 pc.
f)
201-0108.00-00000
Round rod 1000mm
Details
Version:
with eye
Length:
1000 mm
variable length:
Delivery Unit:
1 pc.
f)
201-0109.00-00000
Round rod 1100mm
Details
Version:
with eye
Length:
1100 mm
variable length:
Delivery Unit:
1 pc.
f)
201-0110.00-00000
Round rod 1200mm
Details
Version:
with eye
Length:
1200 mm
variable length:
Delivery Unit:
1 pc.
f)
201-0112.00-Lxxmm
Round rod, variable length
Details
Version:
with eye
Length:
variable length:
Yes
Delivery Unit:
on request
f)
201-0111.00-Lxxmm
Round rod, variable length
Details
Version:
with eye and chamfered end
Length:
variable length:
Yes
Delivery Unit:
on request
Product Configuration
Selected version
| Product number | 200-2811.35-00000 |
| Delivery Unit: | 10 pcs. |
| Name: | Spacer |
Selected additional products
| [none] |
