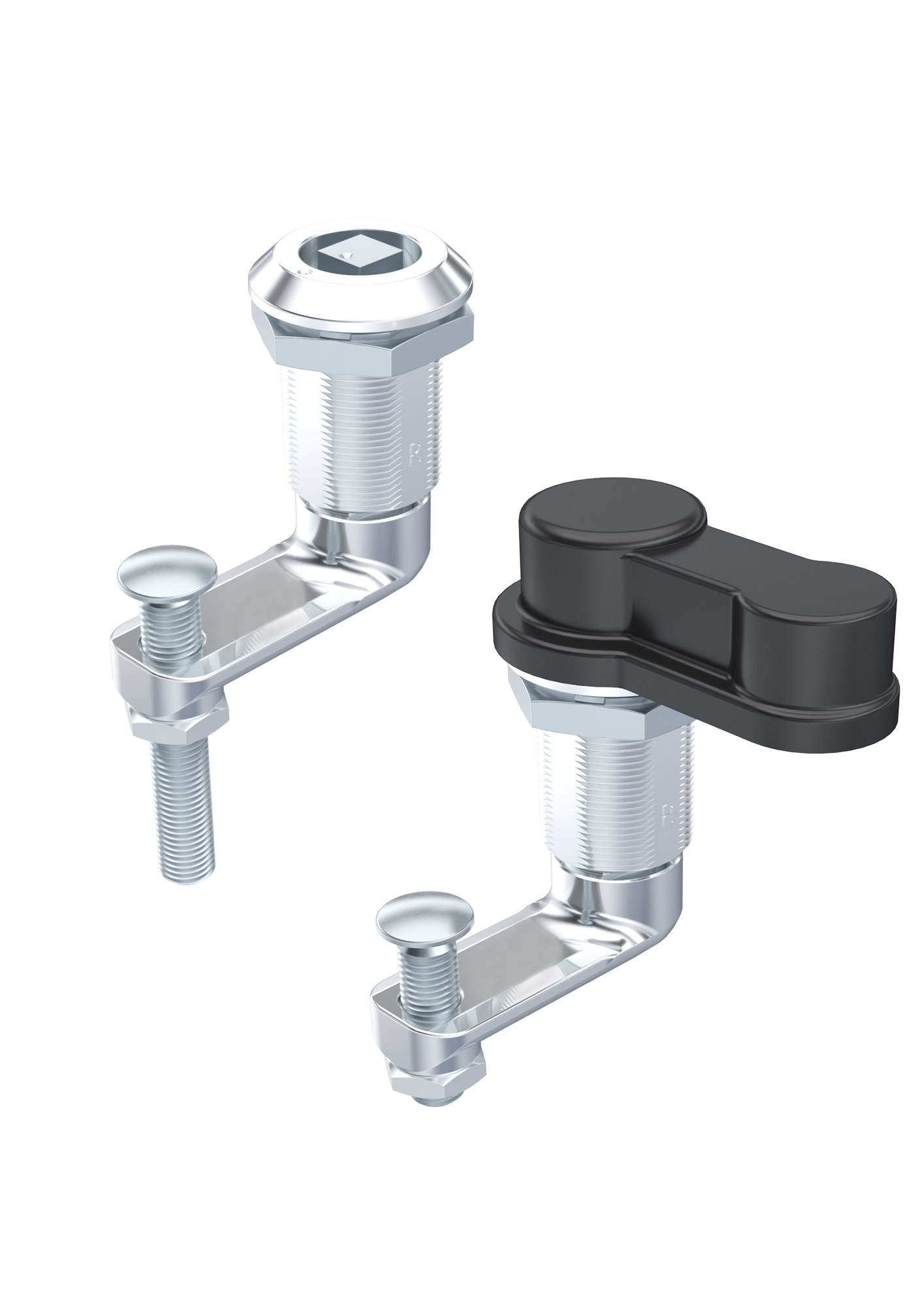

Compression Latch Pr20.1

ICON_CUTOUT_20_1
ICON_IP65
ICON_MUTTER_15Nm
ICON_ROHS
ICON_DIN_61373
ICON_TUERANSCHLAG_LR
ICON_DIRAK_GEERDET
1_081
E_1-081_1
E_1-081_2
1_081
E_1-081_1
E_1-081_2

Advantages

  • Compression 6.5mm.

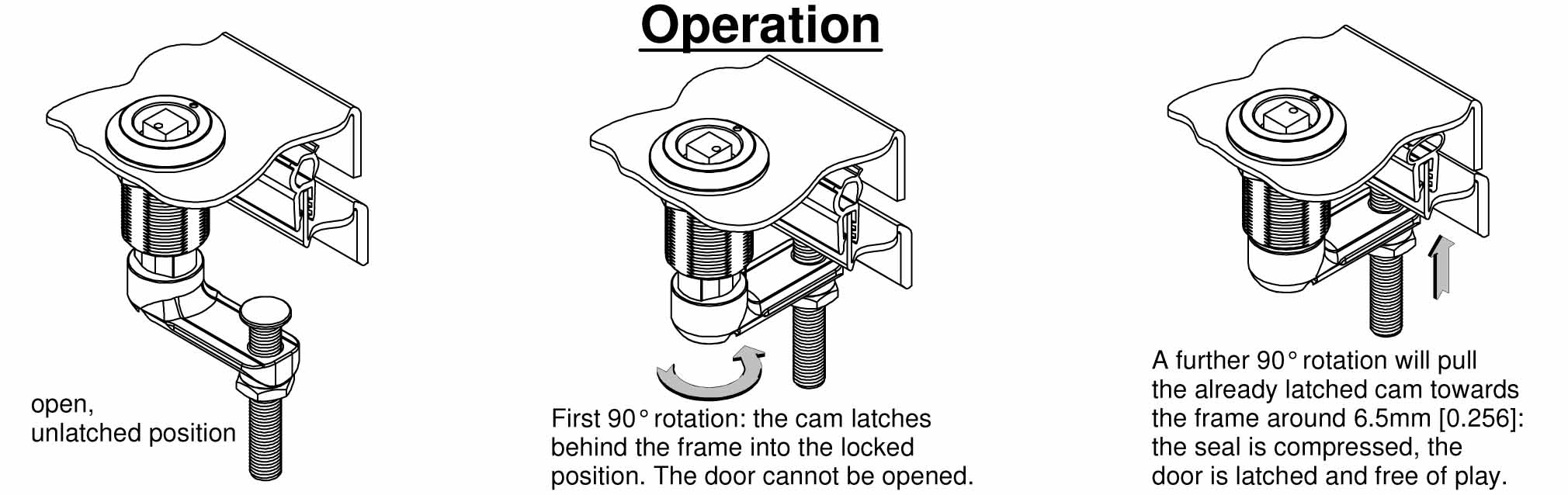

  • By turning the insert 90° the cam is at first put into closed position, by turning a further 90°, the cam will be pulled towards the frame.
  • Matching dots mark the final position (see lower drawing).
  • Vibration-proof according to DIN EN 61373.
  • IP65 according to DIN EN 60529.
  • Grounding by grounding nut.
  • RH and LH version.

Material

  • Housing: zinc die, chrome plated or black
  • Insert: brass, chrome plated, zinc die, black or chrome plated
  • Drip handle: zinc die, black
  • Spring: stainless steel
  • Cam: zinc die, chrome plated
  • Adjusting screw and nut: steel, zinc plated

Remarks

(S) Door-thickness max. 22mm

Please configure the quarter-turn with insert and cam as well as corresponding assembly.
The H-dimension can be adjusted by the adjusting screw.

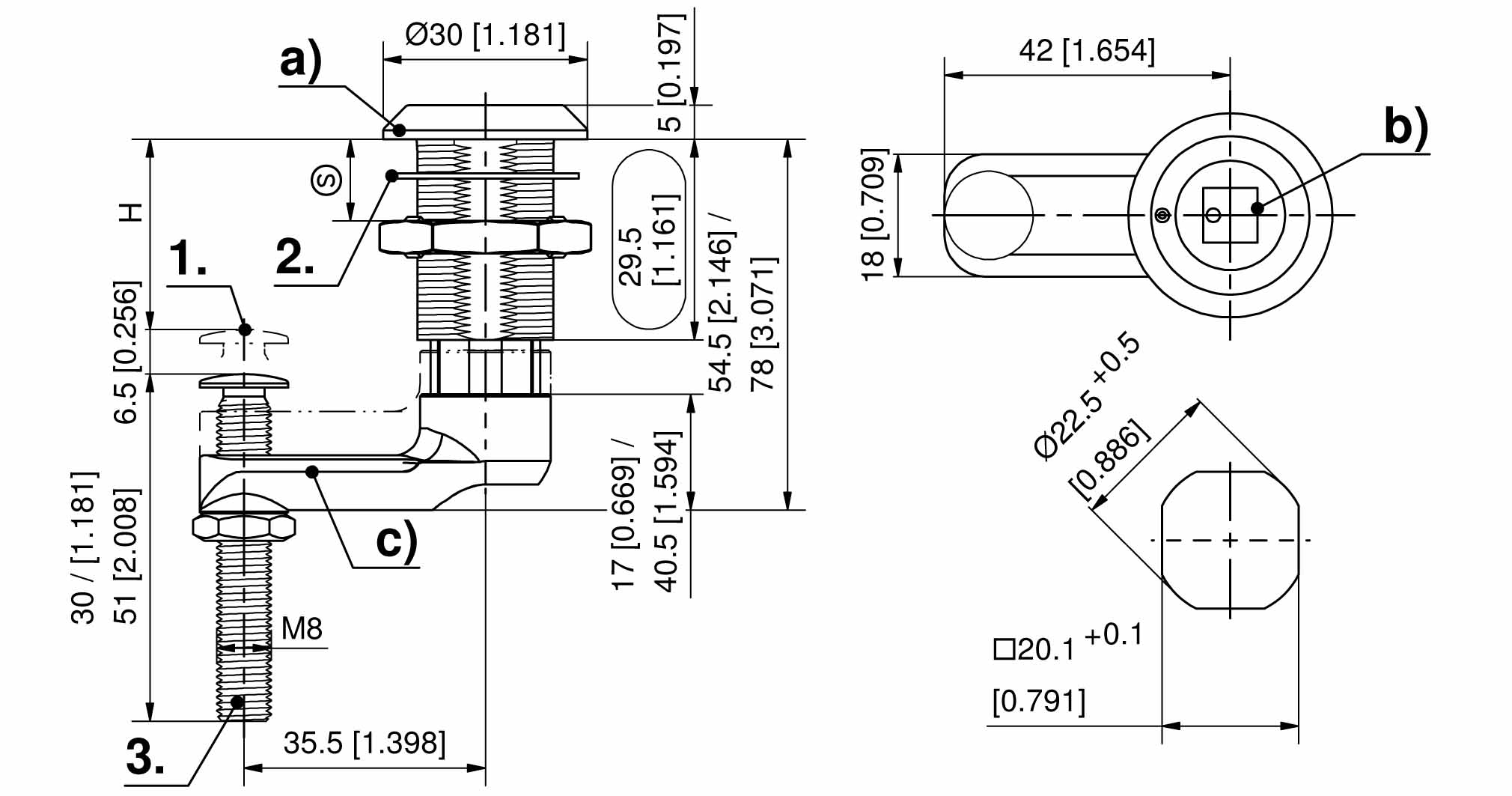

1. compression 6.5mm
2. flat external seal
3. adjusting screw

Selected version

Product number 100-9132.00-00000
Delivery Unit: 1 pc.
Surface: chrome plated
Insert: Hex. 7/16"
Version: -
Remove selection Product data sheet
