[1-410.01]

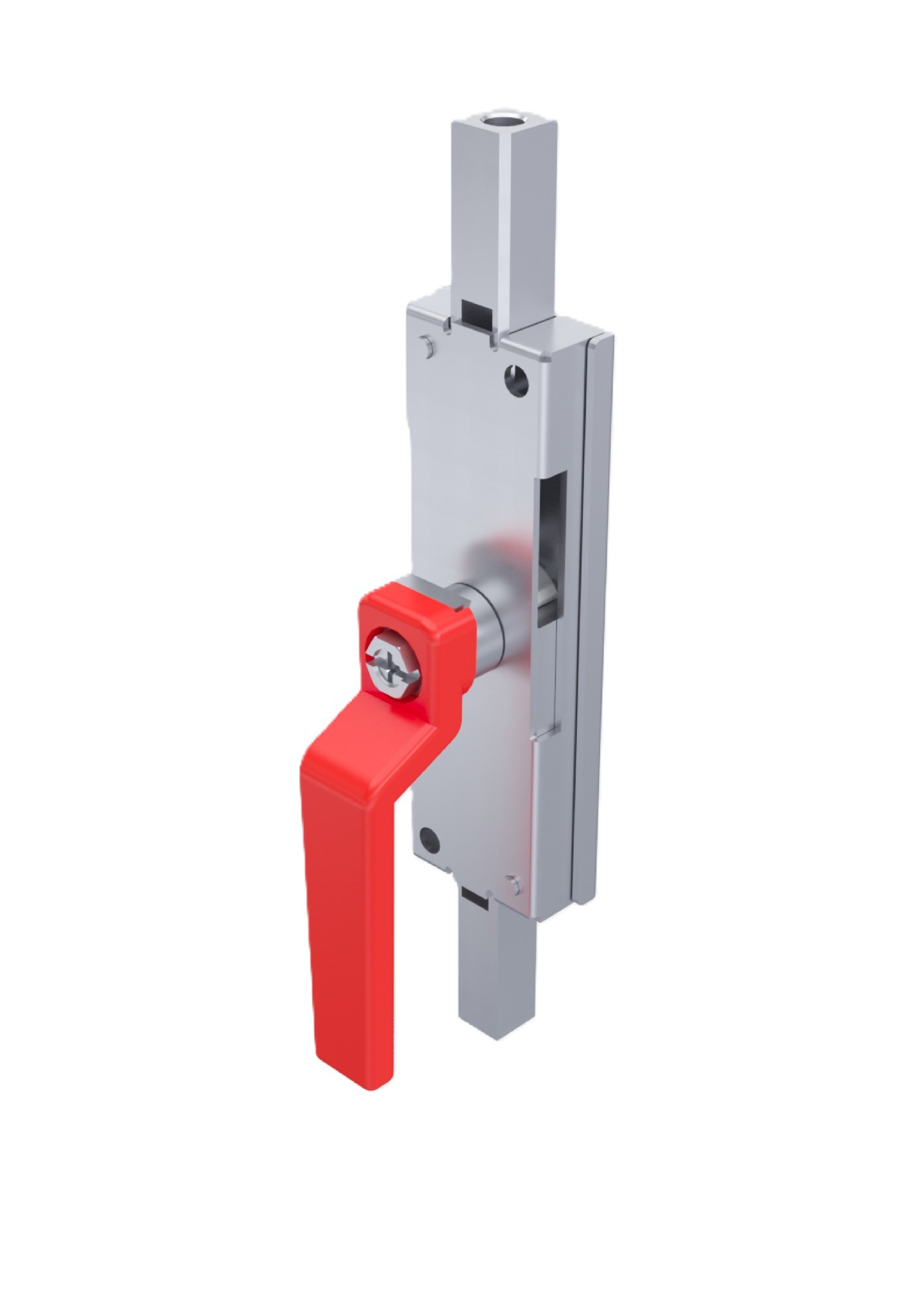

2 Point Rod Latch with Internal Release

ICON_CUTOUT_20_1
ICON_ROHS
ICON_RUNDSTANGE
ICON_TUERANSCHLAG_LR

Advantages

  • For cutout Pr20.1.
  • For use with M8 / M10 threaded rods.
  • Closing rotation180°.
  • Rh and LH version.
  • In combination with lock support 20 or 26mm.
  • With internal handle.

Material

  • Internal handle: zinc die, red
  • Gear and connectors: zinc die, chrome plated
  • Housing: steel, zinc plated

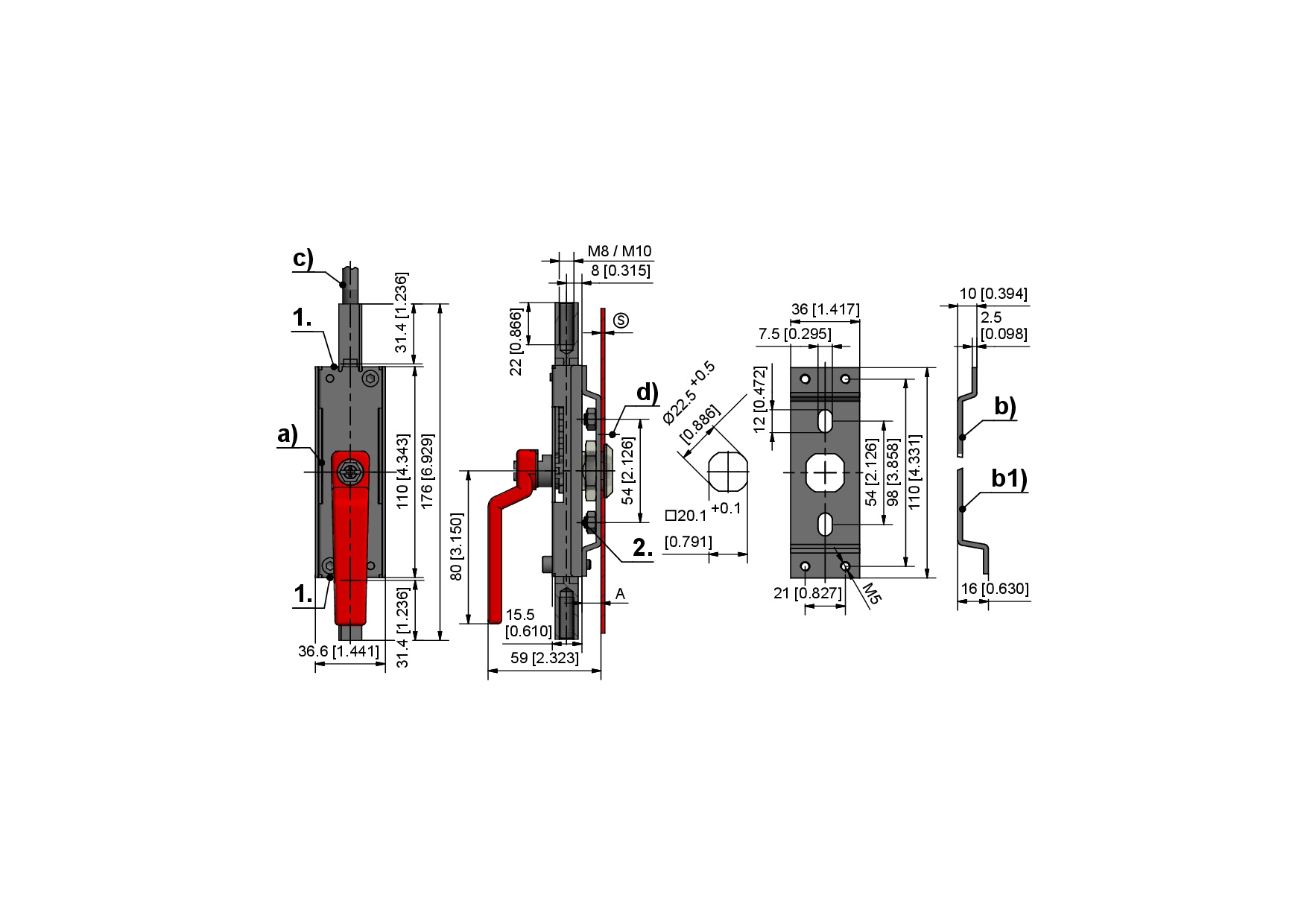

Remarks

(S) Doorthickness 1.5 - 2.5mm

1. stroke 31.4mm
2. for painted doors and bolted lock, an M6 x 8 weld stud with nut is required for the earthing.



Please select version Product data sheet
